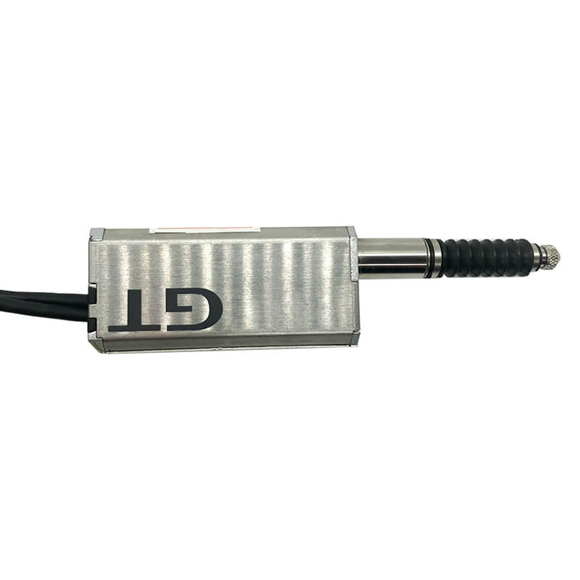

Keyence Contact Sensor GT-H10 GT-H22 GT-H10L GT-H22L GT-A10 GT-A22

Series#: Keyence Positioning Sensors

Product Details

Qty:

Specification

Model GT-H10 GT-H22 GT-H10L GT-H22L
Type Sensor head: Standard Sensor head: Low-stress
Measuring range 10 mm 0.39″ 22 mm 0.87″ 10 mm 0.39″ 22 mm 0.87″
Downward mounting 1.0 N*1 1.5 N*1 0.3 N*1 0.35N*1
Side mounting 0.9 N*1 1.4 N*1 0.25N*1 0.3 N*1
Upward mounting 0.8 N*1 1.3 N*1 0.2 N*1 0.25N*1
Mechanical response 10 Hz (at ambient temperature of 23 °C 73 °F) 8 Hz (at ambient temperature of 23 °C 73 °F) 7 Hz (at ambient temperature of 23 °C 73 °F) 5 Hz (at ambient temperature of 23 °C 73 °F)
Repeatability 3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)*2 8 µm 0.00031″ (at ambient temperature of 23 °C 73 °F)*2 3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)*2 8 µm 0.00031″ (at ambient temperature of 23 °C 73 °F)*2


Enclosure rating

IP67
Ambient temperature -10 to +55 °C 14 to 131 °F
Relative humidity 35 to 85 % RH
Material Housing: TYPE430 Stainless steel, Indicator: Polyarylate,
Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC
Housing: TYPE430 Stainless steel, Indicator: Polyarylate,
Contact: TYPE304 stainless steel, Cable: PVC
Weight Approx. 115 g (With 2-m 6.6′ cable) Approx. 135 g (With 2-m 6.6′ cable) Approx. 115 g (With 2-m 6.6′ cable) Approx. 135 g (With 2-m 6.6′ cable)



Model GT-A10 GT-A22
Type Sensor head: Air push models
Measuring range 10 mm 0.39″ 22 mm 0.87″
Downward mounting 1.0 N*1 1.5 N*1
Side mounting 0.9 N*1 1.4 N*1
Upward mounting 0.8 N*1 1.3 N*1
Repeatability 3 µm 0.00012″ (at ambient temperature of 23 °C 73 °F)*2 8 µm 0.00031″ (at ambient temperature of 23 °C 73 °F)*2
Enclosure rating IP67*3
Pressure resistance 1.0 MPa
Applied pressure range 0.35 to 0.5 MPa
Ambient temperature 0 to +55 °C 32 to 131 °F
Relative humidity 35 to 85 % RH
Material Housing: TYPE430 stainless steel, Cylinder: Aluminum alloy, Plastic section of air joint: Polyacetal, Metal section of air joint: Nickel-plated brass,
Indicator: Polyarylate, Dust boot: NBR, Contact: TYPE304 stainless steel, Cable: PVC
Weight Approx. 150 g (With 2-m 6.6′ cable) Approx. 180 g (With 2-m 6.6′ cable)
