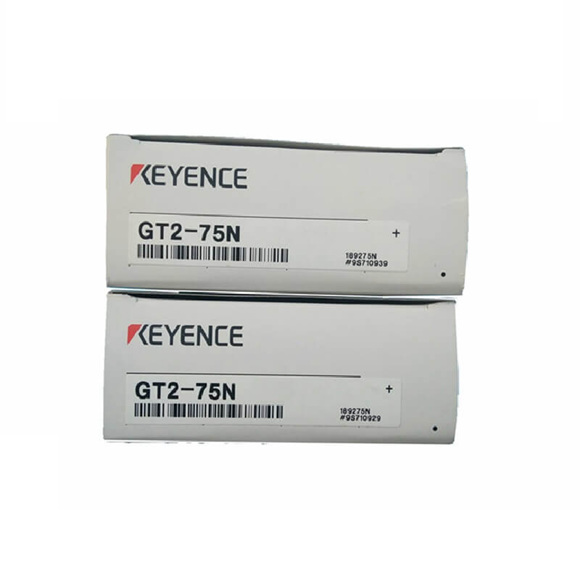

| Model NPN output Main unit | GT2-71(C)N | GT2-75N | GT2-71MCN |
| Model NPN output Expansion unit *1 | GT2-72(C)N | GT2-76N | – |
| Model PNP output Main unit | GT2-71(C)P | GT2-75P | GT2-71MCP |
| Model PNP output Expansion unit *1 | GT2-72(C)P | GT2-76P | – |
| Mounting type*2 | DIN-rail mount | Panel mount | DIN-rail mount |
| Number of expansion units*1 | Up to 14 expansion units for 1 main unit | ||
| Power supply voltage*1 | 10 to 30 VDC, including 10% ripple (P-P), Class 2 | 20 to 30 VDC, including 10% ripple (P-P), Class 2 | |
| Display range | -199.999.9 to 199.999.9 | ||
| Display resolution | 0.1 μm | ||
|
Normal |
2200 mW or less (73.3 mA or less at 30 V) | 2700 mW or less (90.0 mA or less at 30 V) | |
| Power saving (Eco half) | 1800 mW or less (60.0 mA or less at 30 V) | 2300 mW or less (76.7 mA or less at 30 V) | |
| Power saving (Eco all) | 1700 mW or less (56.7 mA or less at 30 V) | 2200 mW or less (73.3 mA or less at 30 V) | |
| Response time | hsp (3)/5/10/100/500/1000 ms (When using GT2-Pxxx, hsp (12)/20/40/400/2000/4000 ms) | ||
| NPN output | NPN open collector, 40 V 50 mA or less, residual voltage 1 V or less*1 | ||
| PNP output | PNP open collector, 30 V 50 mA or less, residual voltage 1 V or less*1 | ||
| Ambient temperature | -10 to +50°C 14 to 122°F (No freezing)*1 | ||
| Relative humidity | 35 to 85% RH (No condensation) | ||
| Vibration | 10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours | ||
| Materials | Main body case/front cover: polycarbonate (PC), Key top: polyacetal (POM), Front sheet: polyethylene terephthalate (PET), Cable: polyvinyl chloride (PVC) | ||
| GT2-71N(P)/72N(P) | Approx. 140 g (including power supply cable) | ||
| GT2-75N(P)/76N(P) | Approx. 140 g (including panel mount, front protective cover, power supply cable) | ||
| GT2-71MCN(P)/ 71CN(P)/72CN(P) | Approx. 70 g (not including the GT2-CA2M/CA5M/CA10M) | ||
