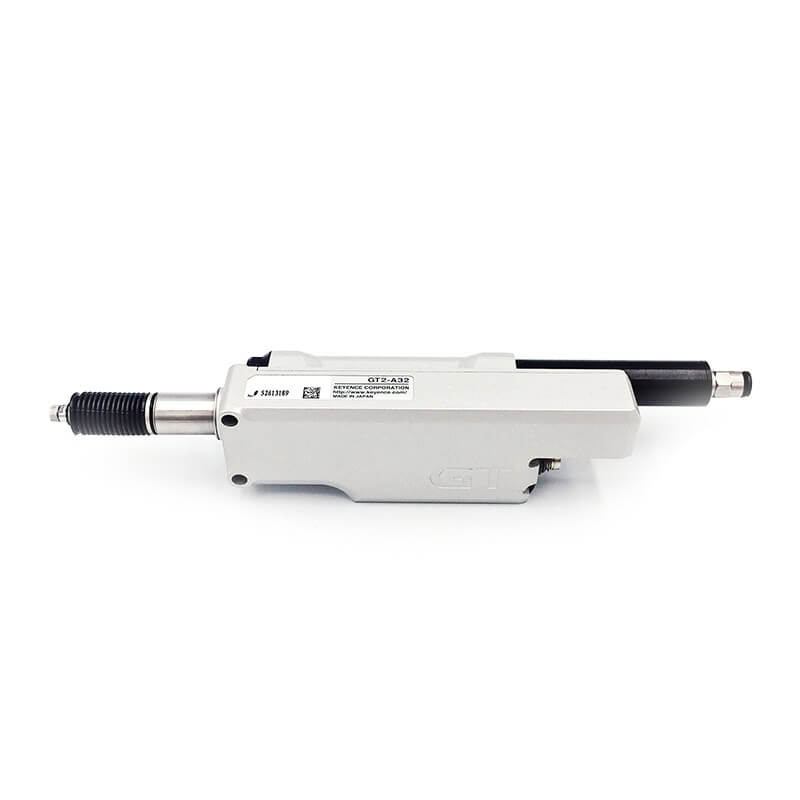

| Model | GT2-A32 | GT2-A50 |
| Detection system | Scale Shot System, absolute (no tracking errors) type | |
| Measuring range | 32 mm 1.26″ | 50 mm 1.97″ |
| Resolution | 0.5 μm | |
| Indicated accuracy*1 | 3 μm (P-P) | 3.5 μm (P-P) |
| Downward mounting | 2.1 N | 3.2 N |
| Side mounting | 1.8 N | 2.8 N |
| Upward mounting | 1.5 N | 2.4 N |
| Sampling cycle | 1 ms | |
| Applied pressure range | 0.25 MPa to 0.50 MPa | |
| Pressure resistance | 1 MPa | |
| Fluid used | Dry air | |
| Operation indicator light | 2-color LED (red, green) | |
|
Enclosure rating |
IP67 (IEC)*3 | |
| Ambient temperature | 0 to +55°C 32 to 131°F (No freezing) | |
| Relative humidity | 35 to 85% RH (No condensation) | |
| Vibration*4 | 10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours | |
| Materials Main body | Main body case: die-cast zinc, Cylinder section: aluminum alloy, Air joint resin: polyacetal, Air joint metal: nickel-plated brass, Indicator: polyarylate (PAR) | |
| Dustboot | NBR | |
| Contact*5 | SUS304, SUS440C | |
| Sensor head cable | Optional (connect to the M8 connector) | |
| Weight (not including cable) | Approx. 340 g | Approx. 405 g |
