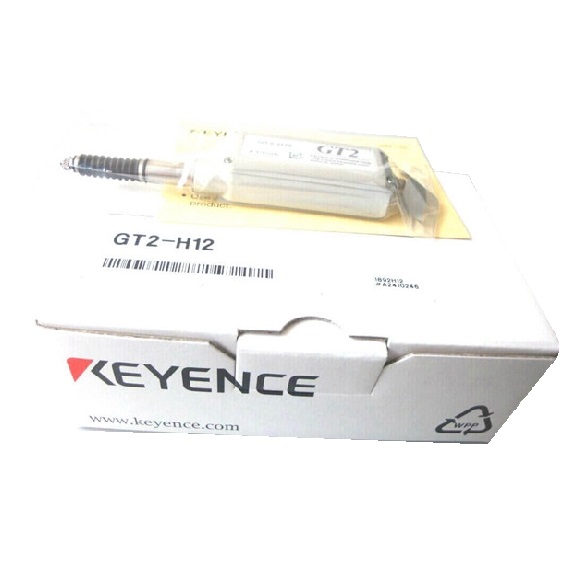

Keyence Digital Contact Sensor GT2-H12K GT2-H12KF GT2-H12KL GT2-H12KLF

Series#: Keyence Positioning Sensors

Product Details

Qty:

Specification

Model GT2-H12K GT2-H12KF GT2-H12KL GT2-H12KLF GT2-H12 GT2-H12F GT2-H12L GT2-H12LF


Detection system

Scale Shot System, absolute (no tracking errors) type
Measuring range 12 mm 0.47″
Resolution 0.1 μm 0.5 μm
Indicated accuracy*1 1 μm (P-P) 2 μm (P-P)
Downward mounting 1.0 N 0.4 N 1.0 N 0.4 N
Side mounting 0.9 N 0.3 N 0.9 N 0.3 N
Upward mounting 0.8 N 0.2 N 0.8 N 0.2 N
Sampling cycle 1 ms
Mechanical response*1 10 Hz 4 Hz 10 Hz 4 Hz
Operation indicator light 2-color LED (red, green)
Enclosure rating IP67 (IEC) IP67 (IEC)
Ambient temperature -10 to +55°C 14 to 131°F (No freezing)
Relative humidity 35 to 85% RH (No condensation)
Vibration 10 to 55 Hz Double amplitude 1.5 mm 0.06″ in the X, Y, Z axis directions respectively, 2 hours
Impact resistance 1000 m/s2 (IEC60068-2-27)
Materials Main body Main body case: die-cast zinc, Indicator: polyarylate (PAR)
Dustboot NBR NBR
Contact*3 SUS304, cemented tungsten carbide SUS304, SUS440C
Sensor head cable Optional (connect to the M8 connector)
Weight (not including cable) Approx. 95 g Approx. 100 g Approx. 95 g Approx. 100 g Approx. 95 g Approx. 100 g Approx. 95 g Approx. 100 g
