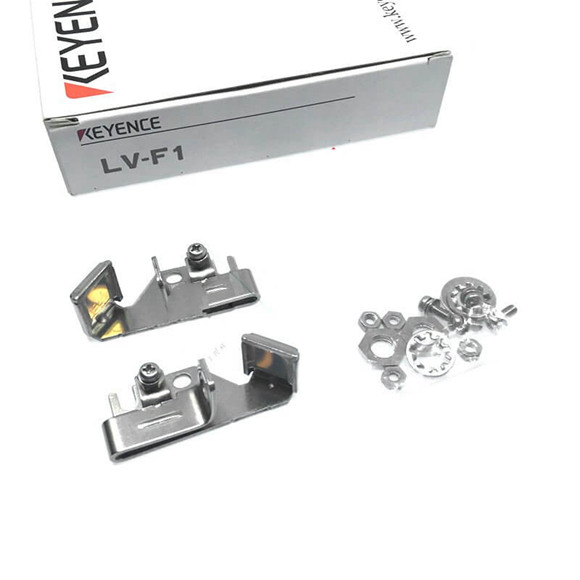

Model | LV-F1*1 | |||
Type | Side-view attachment for thrubeam |
|||
Applicable model | LV-S71, LV-S72 | |||
Detecting distance MEGA | LV-S71:250 mm 9.84″、LV-S72:400 mm 15.75″*2 | |||
ULTRA | LV-S71:250 mm 9.84″、LV-S72:400 mm 15.75″ | |||
SUPER | ||||
TURBO | ||||
FINE | ||||
HSP | ||||
Environmental resistance
Ambient temperature |
-10 to +50 °C 14 to 122 °F (No freezing) | |||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis | |||
Material
Main unit |
Metal part: Stainless steel Mirror part: Glass |
|||
Weight | Approx. 22 g | |||
Model | LV-11SB*1 | LV-11SBP*1 | LV-12SB*1 | LV-12SBP*1 |
Type | Main unit | Expansion unit (1 line) | ||
Output | NPN | PNP | NPN | PNP |
Control output | NPN open-collector x 2 ch 40 VDC max. 100 mA max. per output | PNP open-collector x 2 ch 30 VDC max. 100 mA max. per output | NPN open-collector x 2 ch 40 VDC max. 100 mA max. per output | PNP open-collector x 2 ch 30 VDC max. 100 mA max. per output |
Unit expansion | Up to 16 expansion units can be installed (17 units including the main unit)*3 | |||
Weight | Approx. 80 g (including 2 m 6.6′ cable) |
