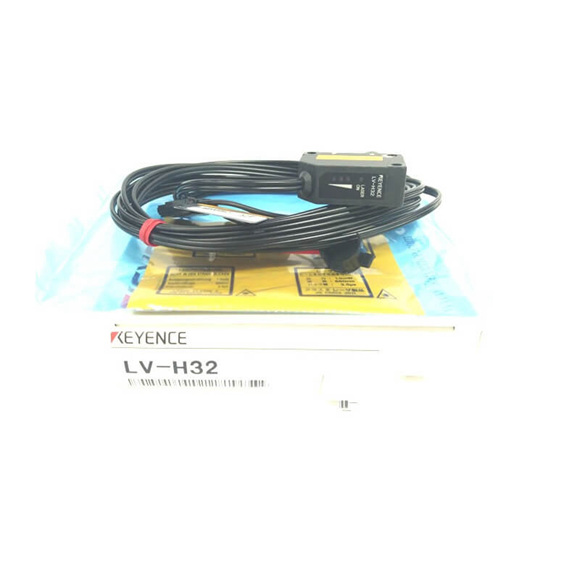

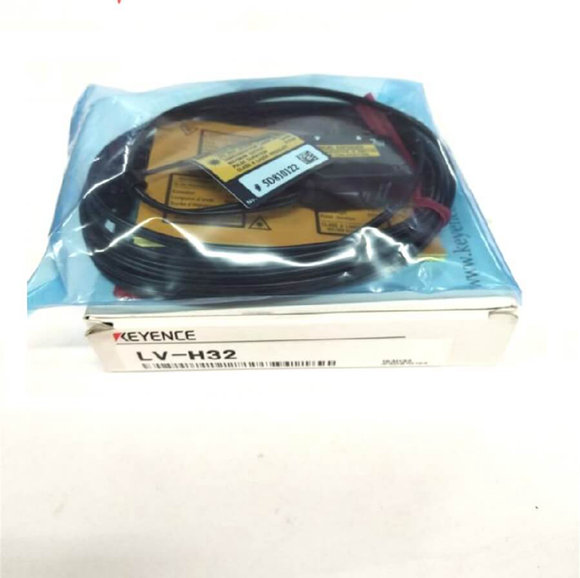

Keyence Digital Laser Sensor LV-H35 LV-H32 LV-H37 LV-H47 LV-H42 LV-H62 LV-H67 LV-H64

Series#: Keyence Digital Laser Sensor

Product Details

Qty:

Specification

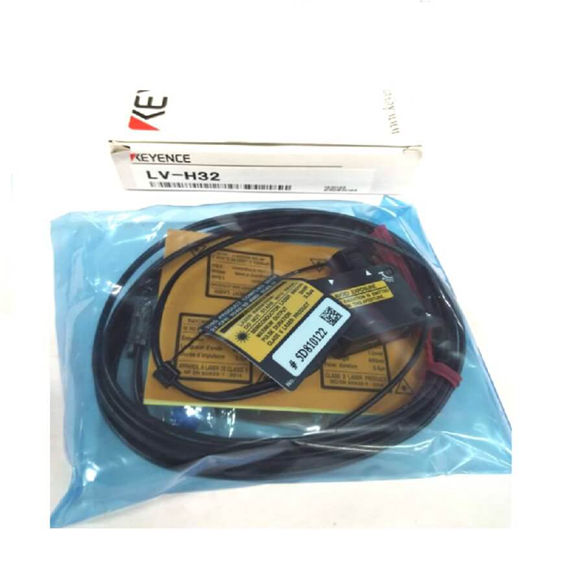

Model LV-H35 LV-H32 LV-H37
Type Straight-beam coaxial Adjustable beam spot Ultra-small beam spot
FDA (CDRH) Part 1040.10 Class II
Light source Visible red semiconductor laser
Wavelength 660 nm
FINE 150 mm 5.91″ 30 to 250 mm 1.181″ to 9.842″ 70 ±15 mm 2.76″ ±0.59″
TURBO 300 mm 11.81″ 30 to 500 mm 1.181″ to 19.685″
SUPER 600 mm 23.62″ 30 to 1000 mm 1.18″ to 39.37″
Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Material Case Glass reinforced plastic *1
Lens cover Transparent plastic Acrylic *2 Glass *2
Weight Approx. 45 g

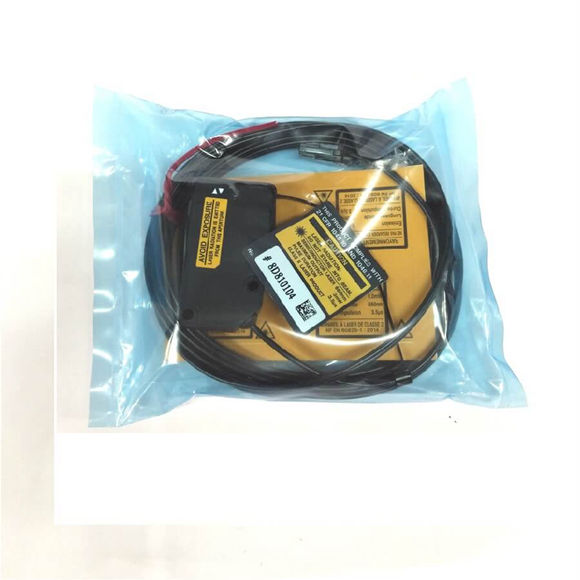

Model LV-H64 LV-H65
Type Long distance Wide
FDA (CDRH) Part 1040.10 Class II
Light source Visible red semiconductor laser
Wavelength 660 nm
Weight Approx. 45 g



Model LV-H47 LV-H42
Type Area definite reflective Long-distance area
FDA (CDRH) Part 1040.10 Class II
Light source Visible red semiconductor laser
Wavelength 660 nm
Detecting distance FINE 55 to 85 mm 2.17″ to 3.35″ 250 mm 9.84″
TURBO 500 mm 19.69″
SUPER 1000 mm 39.37″
Environmental resistance Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Material Case Glass reinforced plastic
Lens cover Glass *1 Polyarylate
Weight Approx. 45 g



Model LV-H62 LV-H67
Type Small beam spot High power
FDA (CDRH) Part 1040.10 Class II
Light source Visible red semiconductor laser
Wavelength 660 nm
Detecting distanceFINE 2 m 6.6′ 20 m 65.6′
TURBO 5 m 16.4′ 30 m 98.4′
SUPER 7 m 23.0′ 30 m *2 98.4′
Environmental resistance

Ambient temperature

-10 to +55 °C 14 to 131 °F (No freezing)
Weight Approx. 45 g
