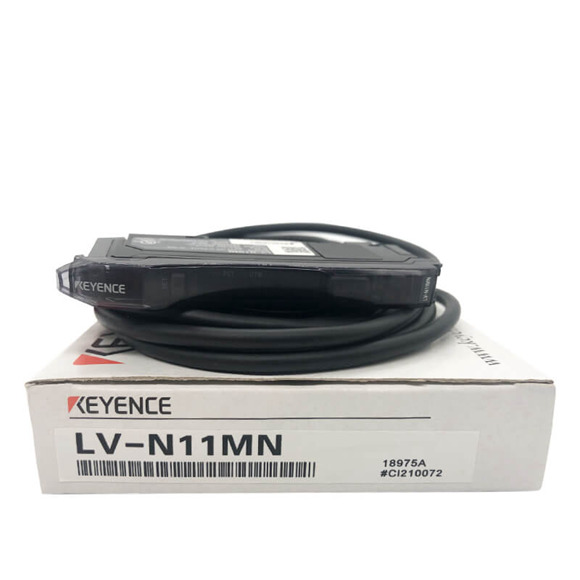

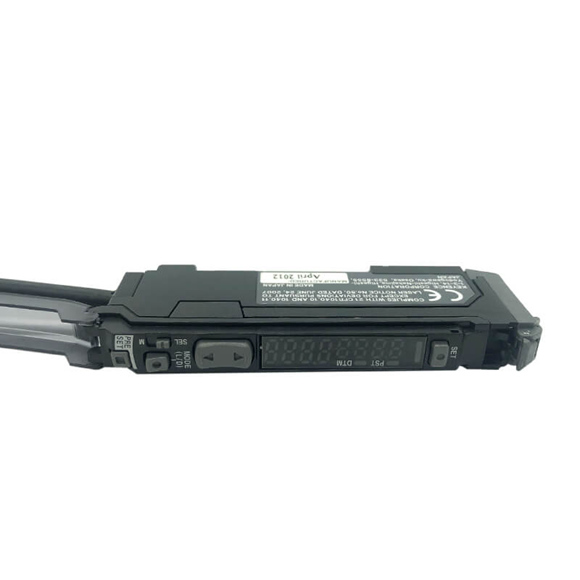

Model | LV-N11N | LV-N12N | LV-N11CN | LV-N12CN | LV-N11MN |
Type | 2 output | 1 output | Monitor output | ||
Output | NPN | ||||
Cable/connector | Cable | M8 connector | Cable | ||
Main/Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit | Main unit |
I/O Control outputs | 2 output | 1 output | |||
External input | 1 input | ||||
Monitor output | None | 1 output | |||
Response time | 80 µs (HIGH SPEED)/250 µs (FINE)/500 µs (TURBO)/1 ms (SUPER)/4 ms (ULTRA)/16 ms (MEGA) *1 | ||||
Output selection | LIGHT-ON/DARK-ON (switch-selectable) | ||||
Timer function | Timer OFF/OFF-delay timer/ON-delay timer/One-shot timer, Timer duration selectable: 1 ms to 9,999 ms, Maximum error against the setting value: ±10% max. |
||||
Control outputs | NPN open collector 30 V, Residual voltage 1 V or less (Output current: 10 mA or less) / 2 V or less (Output current: 10 to 100 mA) (Stand-alone) 1 output max: 100 mA or less, 2 output total: 100 mA or less (Multiple connections) 1 output max: 20 mA or less |
||||
Monitor output | – | 1 to 5 V voltage output; load resistance 10 kΩ or more; repeat precision ±0.5% of F.S.; response time: 1 ms (HIGH SPEED, FINE, TURBO), 1.2 ms (SUPER), 1.8 ms (ULTRA), 4.2 ms (MEGA) |
|||
External input | Input time 2 ms (ON)/20 ms (OFF) or more*2 | ||||
Multiple connections to expansion units |
Up to 17 units can be connected in total (two-output type is treated as two units) | ||||
Protection circuit | Reverse polarity protection, Over-current protection, Surge absorber | ||||
Number of interference prevention units |
Connected to other than LV-S31: 0 for HIGH SPEED; 2 for FINE/TURBO/SUPER; 4 for ULTRA/MEGA, Connected to LV-S31: 2 for FINE; 4 for TURBO/SUPER/ULTRA/MEGA*3 |
||||
Case size | H 32.6 mm 1.28″ × W 9.8 mm 0.39″ × L 78.7 mm 3.1″ | ||||
Rating
Power voltage |
24 VDC (operating voltage 10 to 30 VDC (with ripple)), Ripple (P-P) 10 % or less, Class 2 or LPS*4*5 | ||||
Power consumption |
Normal: 830 mW or less (at 30 V. 30 mA at 24 V, 56 mA or less at 12 V)*6 Eco on mode: 710 mW or less (at 30 V. 26 mA at 24 V, 48 mA or less at 12 V)*6 Eco Full mode: 550 mW or less (at 30 V. 21 mA at 24 V, 40 mA or less at 12 V) *7 |
||||
Weight | Approx. 75 g | Approx. 65 g | Approx. 20 g | Approx. 75 g |
