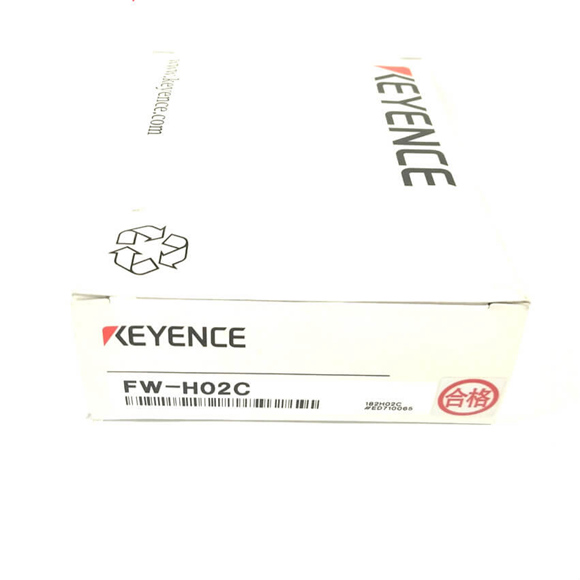

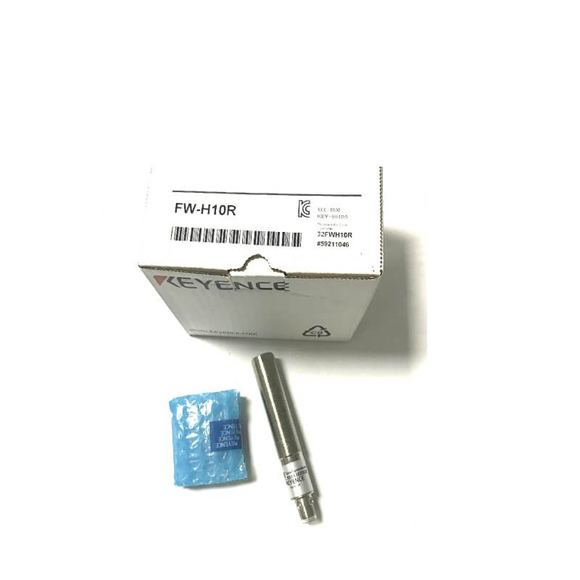

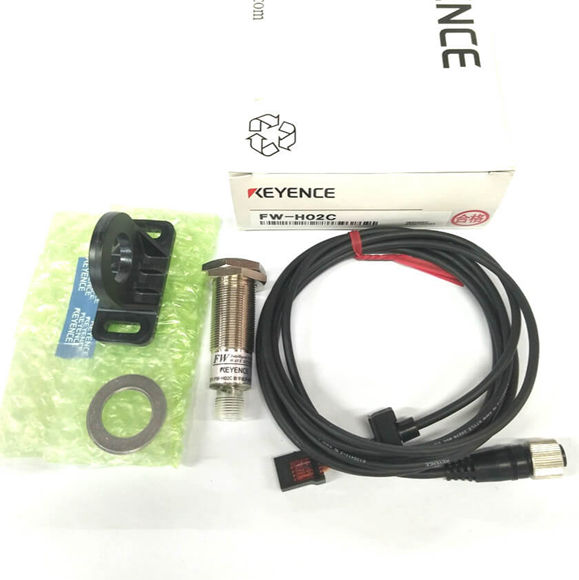

Keyence Digital Ultrasonic Sensors FW-H02 FW-H07 FW-H10R FW-V20 FW-V20P

Series#: Keyence Positioning Sensors

Product Details

Qty:

Specification

Model FW-H02 FW-H07 FW-H10R
Type Standard type Long range
Detecting area 50 to 200 mm 2.0″ to 7.9″*1 150 to 700 mm 5.9″ to 27.6″*1 150 to 1000 mm 5.9″ to 39.4″*1
Response speed 250 ms 300 ms 1,000 ms
Temperature characteristics 0.25% of F.S./°C *2*3 0.06% of F.S./°C*4
Indicator lamp Operation indicator (orange) x1 (Turns on when the power is turned on.) Operation indicator (orange) x1 (Turns on when the target is within the detecting range.)
Dimensions M18 x P1, Length= 63.5 mm 2.50″ M18 x P1, Length= 104 mm 4.09″
Enclosure rating IP67
Ambient temperature -25 to +70 °C -13 to 158 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Material Brass-nickel plating, PBT, Polyurethane, Polyamide resin
Accessories M18 nut: 2, Head cable: 2 m 6.6′, Standard Mounting Bracket (FW-B01)
Weight Approx. 89 g Approx. 106 g



Model FW-V20 FW-V20P FW-V25 FW-V25P
Type NPN PNP NPN PNP
Rating

Power voltage

24 VDC, ripple (P-P): 10% or less


Normal

1680 mW (70 mA) or less*1
Power save 1370 mW (57 mA) or less*1
Normal 2640 mW (110 mA) or less*1
Power save 2330 mW (97 mA) or less*1
Display power Dual row display with signed 3-digit 7-segment LED (character height: upper characters: 8 mm 0.32″, red; lower characters: 5.7 mm 0.22″, green),
display update cycle: 10 times/sec. (5 times/sec. when averaging the display)
Operation status indicators Red LED × 2 (corresponding to control output 1 and control output 2), green LED × 2 (display channel indicators)
Chattering prevention function Off, 0.5, 1, 2, 5, 10 s selectable (When the FW-H10R is connected, this is selectable between off, 1, 2, 5, and 10 s.)
Bank/external shift input No-voltage input (with contacts, without contacts), input time: 25 ms or more (switchable with analog output)
Control output Maximum NPN open-collector output: 100 mA (40 V or less),
residual voltage: 1 V or less, 2 outputs (N.O./N.C. switchable)
Maximum PNP open-collector output: 100 mA (30 V or less),
residual voltage: 1 V or less, 2 outputs (N.O./N.C. switchable)
Maximum NPN open-collector output: 100 mA (40 V or less),
residual voltage: 1 V or less, 2 outputs (N.O./N.C. switchable)
Maximum PNP open-collector output: 100 mA (30 V or less),
residual voltage: 1 V or less, 2 outputs (N.O./N.C. switchable)
Protection circuit Reverse polarity protection, overcurrent protection, surge absorption
Analog output 4 to 20 mA, maximum load resistance: 260 Ω (Bank/external shift input/analog output selectable)
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Material Main unit and cover: polycarbonate, key tops: elastomer
Accessories Mounting bracket, power cable, instruction manual Panel mounting bracket, Protective front cover, Power cable, Instruction manual
Weight Approx. 85 g (Including a 6.6′ 2-m power cable)
