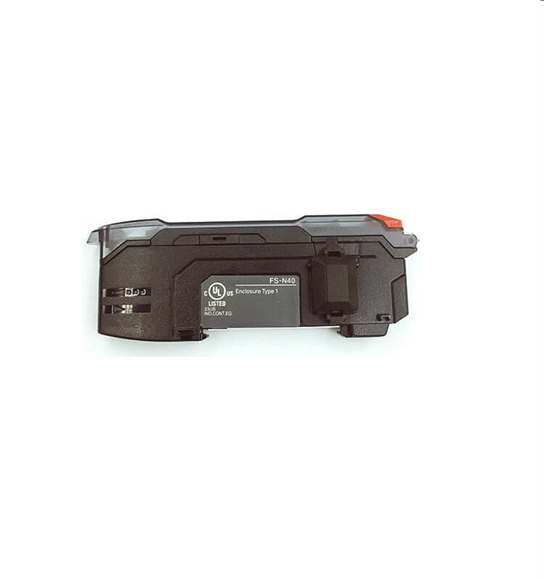

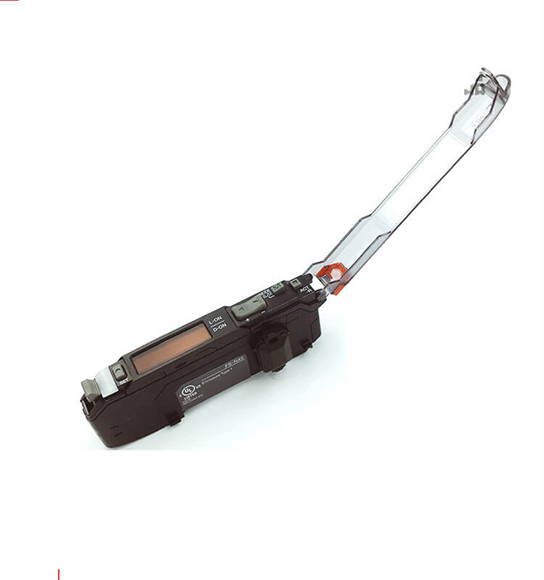

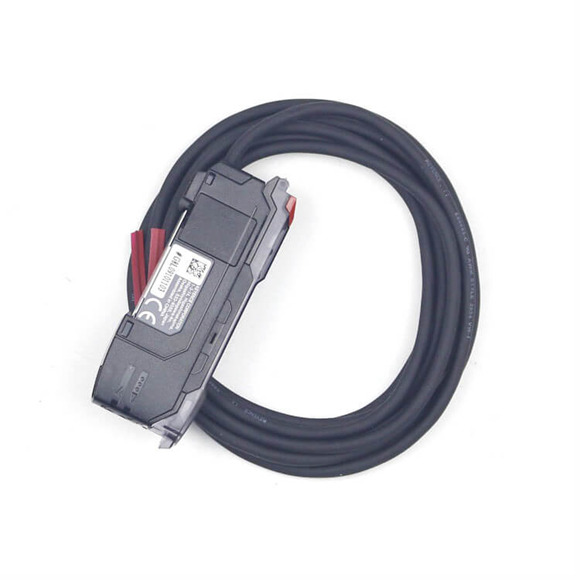

Model | FS-N40 |
Type | Zero Line Type |
Main unit/expansion unit | Expansion unit |
Number of control outputs | None*1 |
Light source LED | Transmitter side: Red, four-element LED (wavelength: 660 nm) |
Response time | 23 µs (S-HSPD*2) /50 µs (HSPD*3) /250 µs (FINE) /500 µs (TURBO) /1 ms (SUPER) /4 ms (ULTRA) /16 ms (MEGA) /64 ms (TERA) |
External input | Input time: 2 ms (ON) /20 ms (OFF) or longer*4 |
Unit expansion | Up to 16 units (17 units connected in total including the main unit) . However, each dual output type will be treated as two expansion units. |
Protection circuit | Protection against reverse power connection, output overcurrent, output surge, and reverse output connection |
Mutual interference prevention | S-HSPD/HSPD: 0 units, FINE: 4 units, TURBO/SUPER/ULTRA/MEGA/TERA: 8 units (The mutual interference prevention values are twice those shown here when Double is set.) |
Power supply
Power voltage |
10 to 30 VDC (including 10 % ripple (P-P) or less) , class 2 or LPS*5 |
Power consumption | During normal operation: 870 mW or less (34 mA or less at 24 V/62 mA or less at 12 V) ECO ON: 800 mW or less (31 mA or less at 24 V/56 mA or less at 12 V) ECO FULL: 710 mW or less (28 mA or less at 24 V/49 mA or less at 12 V)*6 |
Environmental resistance
Ambient light |
Incandescent lamp: 20,000 lx or less, sunlight: 30,000 lx or less |
Ambient temperature | -20 °C -4 °F to +55 °C +131 °F (no freezing)*7 |
Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06″; 2 hours each for X, Y, and Z axes |
Shock resistance | 500 m/s2; 3 times each for X, Y, and Z axes |
Case material | Main unit and cover: polycarbonate |
Weight | Approx. 23 g |
