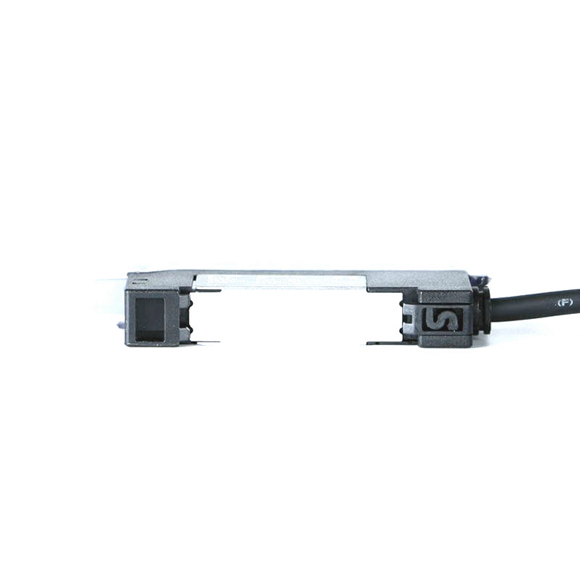

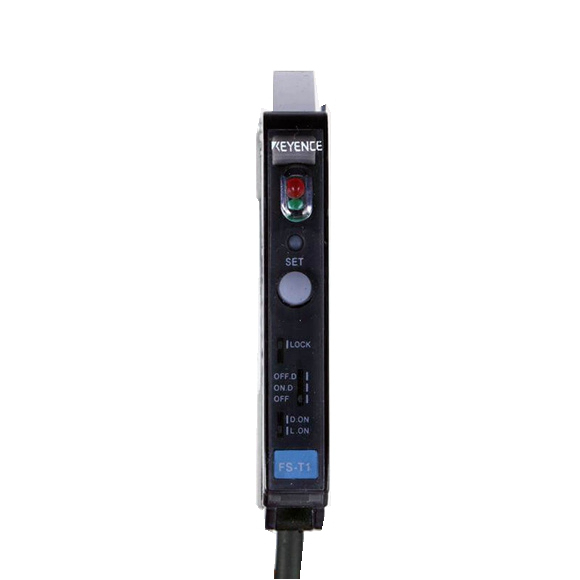

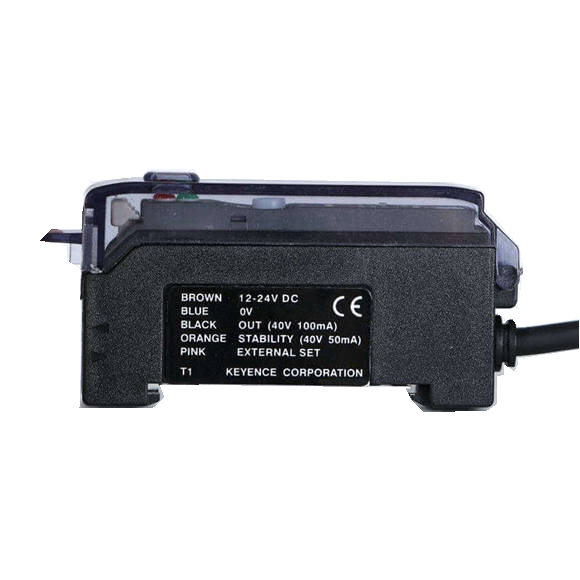

Model | FS-T1 | FS-T2 | FS-M1 | FS-M2 |
Type | Main unit | 1-line expansion unit | Main unit | 1-line expansion unit |
Output | NPN | |||
Light source | Red LED | |||
Sensitivity adjustment/Mode selection | Button | 8-turn trimmer (with indicator), FINE/TURBO (switch-selectable) | ||
Response time | 250 µs | 250 µs (FINE) /500 µs (TURBO) | ||
Operation mode | LIGHT-ON/DARK-ON (switch-selectable) | |||
Indicator lamp | Output indicator: Red LED, Stable operation indicator: Green LED Calibration indicator: Orange LED | Output: Red LED Stable operation: Green LED |
||
Timer function | ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable) | |||
Input | Non-voltage input (contact, solid state) | ― | ||
Control output | NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max. | |||
Stability output | NPN open-collector 50 mA max. (40 VDC max.), Residual voltage: 1 V max. *1 | |||
Protection circuit | Reversed polarity protection, over-current protection, surge absorber | |||
Unit expansion | Up to 16 expansion units can be connected (a total of 17 units).*2 | |||
Mutual interference suppression | 4 | FINE : 4, TURBO/SUPER: 8 | ||
Rating
Power voltage |
12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less*4 | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less*4 |
Rating
Current consumption |
35 mA or less | |||
Ambient light |
Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max. | |||
Ambient temperature | -10 to +55 °C 14 to 131 °F (No freezing)*3 | |||
Relative humidity | 35 to 85 % RH (No condensation) | |||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions | |||
Case material | Polycarbonate | |||
Weight | Approx. 75 g | Approx. 40 g | Approx. 75 g | Approx. 40 g |
