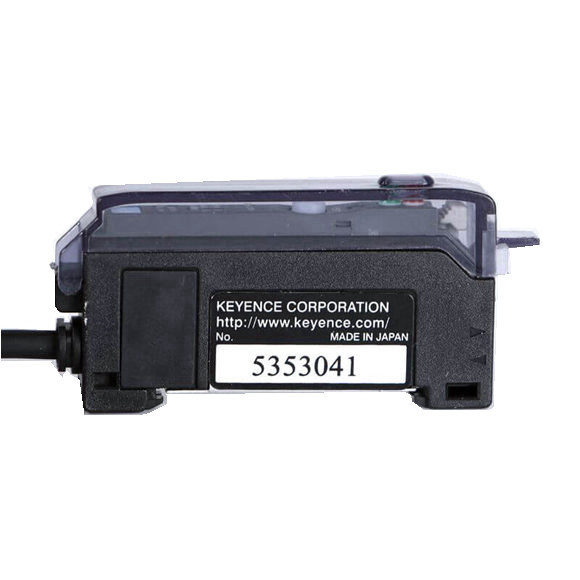

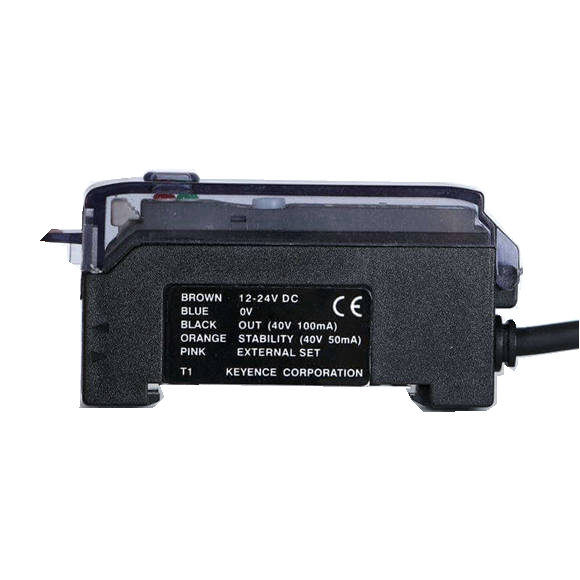

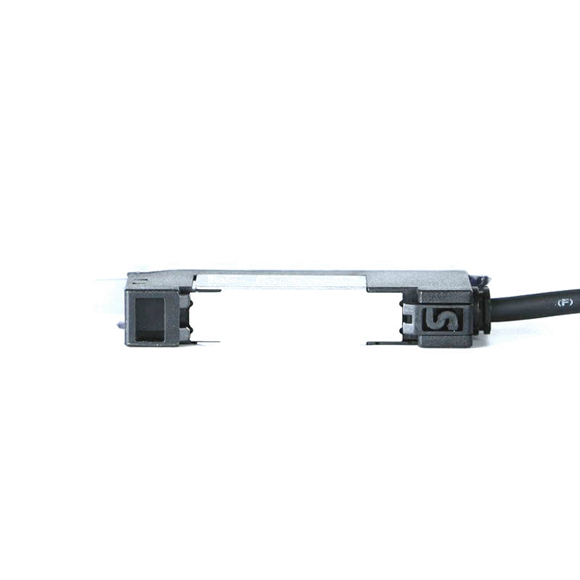

Keyence Fiber Optic Sensors FS-T1G FS-M1H

Series#: Keyence Fiber Optic Sensors

Product Details

Qty:

Specification

Model FS-T1G
Light source Green LED
Response time 250 µs
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output indicator: Red LED, Stable operation indicator: Green LED, Calibration indicator: Orange LED
Timer function ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
External calibration input
signal
Non-voltage input (contact, solid state)
Input
Control output NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
Stability output NPN open-collector: 50 mA max. (40 VDC max.), Residual voltage:1 V max
Protection circuit Reversed polarity protection, over-current protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current consumption 35 mA or less
Environmental resistance

Ambient light

Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)*1
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Polycarbonate
Weight Approx. 75 g
Model FS-M1H
Light source Red LED
Sensitivity adjustment/Mode selection 8-turn trimmer (with indicator),
FINE/TURBO (switch-selectable)
Response time 20 µs (FINE) /50 µs (TURBO)
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output: Red LED
Stable operation: Green LED
Timer function ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
Control output NPN open-collector 100 mA max. (24 VDC max.), Residual voltage: 1 V max.
Stability output NPN open-collector: 50 mA max. (40 VDC max.), Residual voltage:1 V max.
Protection circuit Reversed polarity protection, over-current protection, surge absorber
Rating Power voltage 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less
Current consumption 35 mA or less
Environmental resistance

Ambient light

Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)*1
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Polycarbonate
Weight Approx. 75 g
