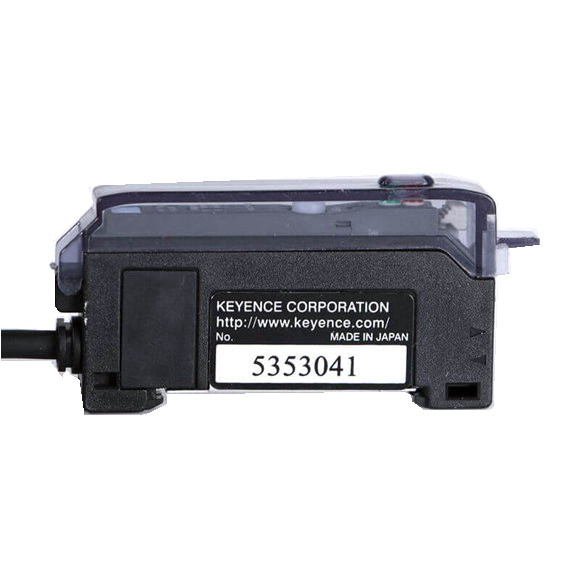

Keyence Fiber Optic Sensors FS-T1P FS-T2P FS-M1P FS-M2P

Series#: Keyence Fiber Optic Sensors

Product Details

Qty:

Specification

Model FS-T1P FS-T2P FS-M1P FS-M2P
Type Main unit 1-line expansion unit Main unit 1-line expansion unit
Output PNP
Light source Red LED
Sensitivity adjustment/Mode selection Button 8-turn trimmer (with indicator), FINE/TURBO (switch-selectable)
Response time 250 µs 250 µs (FINE) /500 µs (TURBO)
Operation mode LIGHT-ON/DARK-ON (switch-selectable)
Indicator lamp Output indicator: Red LED, Stable operation indicator: Green LED Calibration indicator: Orange LED Output: Red LED
Stable operation: Green LED
Timer function ON-delay: 40 ms/OFF-delay: 40 ms/Timer OFF (switch-selectable)
Input Non-voltage input (contact, solid state)
Control output PNP open-collector 100 mA max. (40 VDC max.), Residual voltage: 1 V max.
Stability output PNP open-collector 50 mA max. (40 VDC max.), Residual voltage: 1 V max.*1
Protection circuit Reversed polarity protection, over-current protection, surge absorber
Unit expansion Up to 16 expansion units can be connected (a total of 17 units).*2
Mutual interference suppression 4 FINE : 4, TURBO/SUPER: 8
Rating

Power voltage

12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less*4 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less*4
Current consumption 35 mA or less
Environmental resistance

Ambient light

Incandescent lamp: 10,000 lux max., Sunlight: 20,000 lux max.
Ambient temperature -10 to +55 °C 14 to 131 °F (No freezing)*3
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Shock resistance 500 m/s2, 3 times in each of the X, Y, and Z directions
Case material Polycarbonate
Weight Approx. 75 g Approx. 40 g Approx. 75 g Approx. 40 g
