| Type | 1-output with cable | 1-output + 1-input with M8 connector | 2-output + 1-input with cable | 2-output with M8 connector | Monitor output | 0-line | ||||

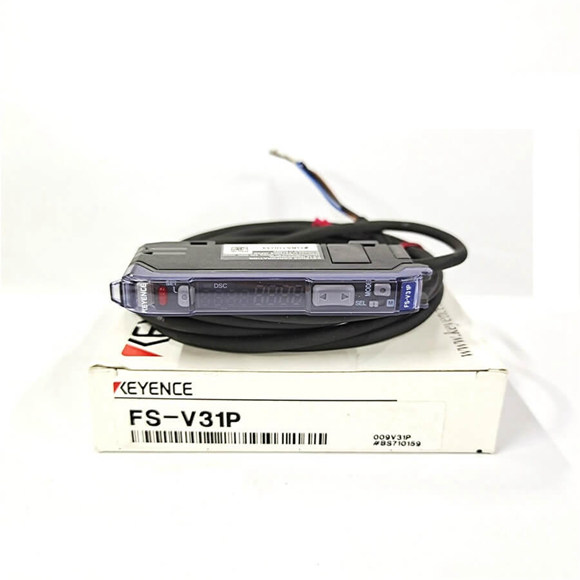

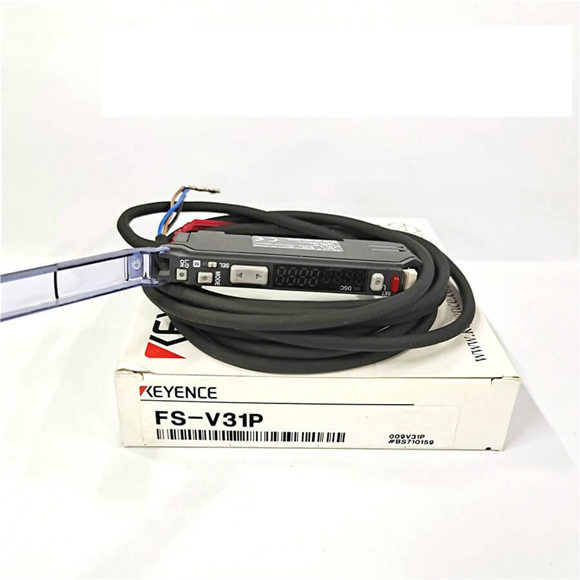

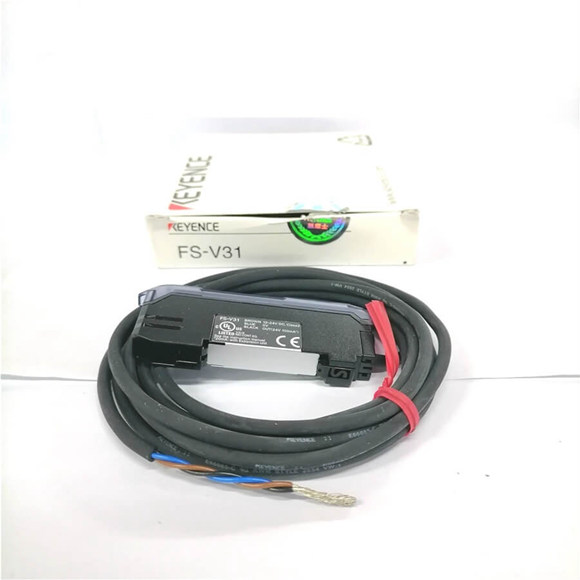

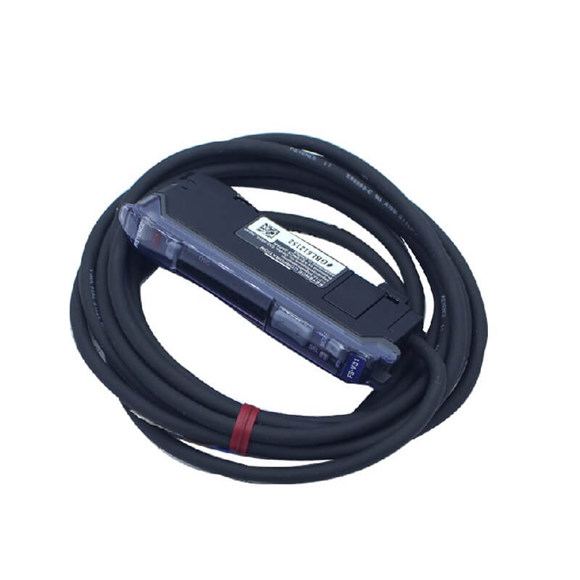

| Model NPN | FS-V31 | FS-V32 | FS-V31C | FS-V32C | FS-V33 | FS-V34 | FS-V33C | FS-V34C | FS-V31M | FS-V30 |
| PNP | FS-V31P | FS-V32P | FS-V31CP | FS-V32CP | FS-V33P | FS-V34P | FS-V33CP | FS-V34CP | — | — |
| Main unit/Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit | Main unit | Expansion unit |
| Control output | 1 output | 1 output | 2 outputs | 2 outputs | 1 output | N/A | ||||
| Monitor output (1 to 5 V) | N/A | N/A | N/A | N/A | 1 output | N/A | ||||
| External input | N/A | 1 input | 1 input | N/A | N/A | N/A | ||||
| Connector | — | M8 | — | M8 | — | — | ||||
| Light source | Red, 4-element LED (Wavelength: 640 nm) | |||||||||
| Response time | 33 ms (HIGH SPEED)/250 ms (FINE)/500 ms (TURBO)/1 ms (SUPER TURBO)/4 ms (ULTRA TURBO)/16 ms (MEGA TURBO) | 193 ms to16.7 ms | ||||||||
| Output selection | LIGHT-ON/DARK-ON (switch-selectable) | |||||||||
|
Display indicator |
Operation indicator: Red LED/Dual digital monitor: Dual 7-segment display, Preset Value (4-digit green LED indicator) and Current Value (4-digit red LED indicator) illuminated together. Current Value range: 0 to 64512; Excess gain: 0P to 999P, Hold function: Possible to display both peak and bottom hold values.selectable from 5 variations
Bar LED monitor: Excess gain displayed (85% to 115% in 7 steps), Scaling display |
|||||||||
| Detection mode | Light intensity (area detection possible, automatic sensitivity-tracking function provided)/ [Limited light intensity/Count check/Abnormality detection] 1. | |||||||||
| Timer function | OFF-delay timer/ON-delay timer/One-shot timer/ON-delay timer + OFF-delay timer/ON-delay timer + One-shot timer, selectable Timer duration selectable: 0.1 ms to 9999 ms, Maximum error against the setting value: ±10% max. | |||||||||
| Counter function | N/A | 65,535 max. count | N/A | |||||||
| Control output
NPN |
NPN open-collector 40 V, 100 mA max.2. (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max. | |||||||||
| PNP | PNP open-collector 30 V, 100 mA max.2. (main unit only)/20 mA max. (when the expansion unit(s) is connected), Residual voltage: 1 V max. | |||||||||
| Monitor output | Voltage output: 1 to 5 V 3., Load resistance: 10 kΩ min., Repeatability: ±0.5% of F.S., Response time: 1 ms (FS-V31M only) | |||||||||
| External input 4. | Input time: 2 ms (ON)/20 ms (OFF) min. | |||||||||
| Unit expansion | Up to 16 expansion units can be connected (a total of 17 units). Note that the 2-output type should be counted as two units. | |||||||||
| Power supply | 12 to 24 VDC ±10%, ripple: 10% max. Class 2 | |||||||||
| Current consumption | Normal operation: 990 mW (at 24 V: 42 mA max, at 12 V: 83 mA max.) / Power-saving mode: 820 mW (at 24 V: 34 mA max, at 12 V: 68 mA max.) | |||||||||
| Ambient illumination | Incandescent lamp: 20,000 lux max., Sunlight: 30,000 lux max. | |||||||||
| Ambient temperature | 14 to 131°F (-10 to 55°C), No condensation 5. | |||||||||
| Relative humidity | 35 to 85%, No condensation | |||||||||
| Vibration | 10 to 55 Hz, double amplitude: 0.06″ 1.5 mm, 2 hours each in the X, Y and Z axis | |||||||||
| Shock | 500 m/s2 in X, Y, and Z directions, 3 times respectively | |||||||||
| Housing | Polycarbonate | |||||||||
| Size | 1.19″ 30.3 mm (H) x 0.39″ 9.8 mm (W) x 2.83″ 71.8 mm (D) | |||||||||
| Weight | Approx. 80 g | Approx. 45 g | Approx. 80 g | Approx. 45 g | Approx. 80 g | Approx. 70 g | Approx. 22 g | Approx. 22 g | Approx. 80 g | Approx. 25 g |
| Accessory | N/A | |||||||||
