Model | FU-11*1 |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø2.2×2 |
Minimum bend radius | R25 mm0.984″ |
Minimum detectable object | Metal wire (parallel) with a diameter of 0.005 mm0.0002″ *2 |
Environmental resistance
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
Weight | Approx. 19 g |

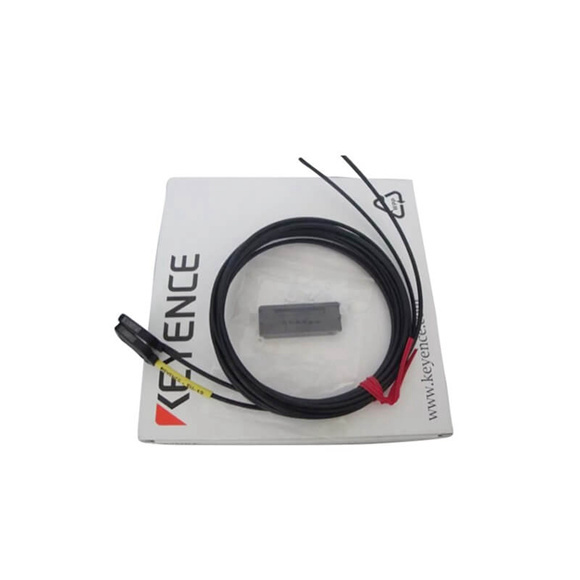

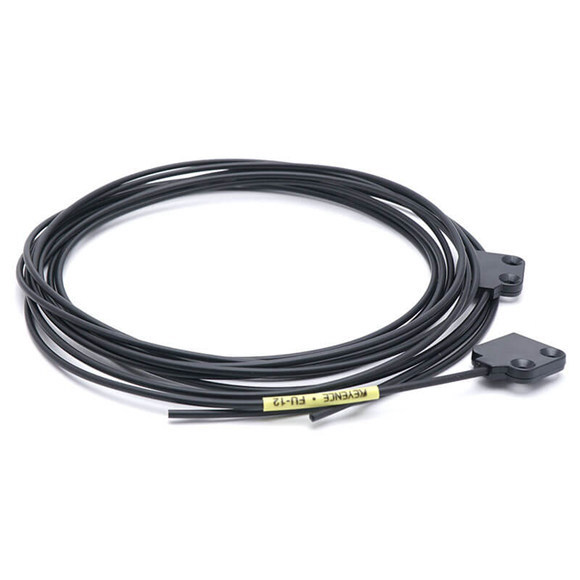

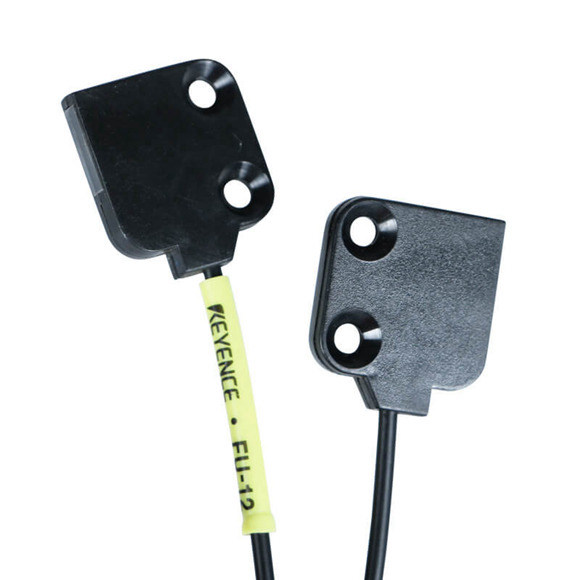

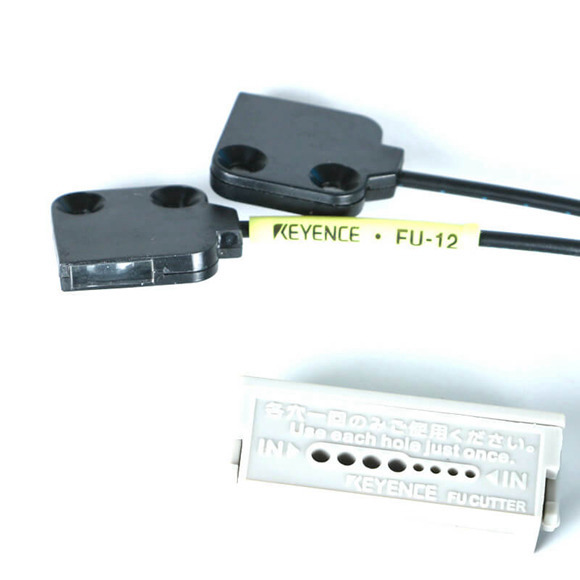

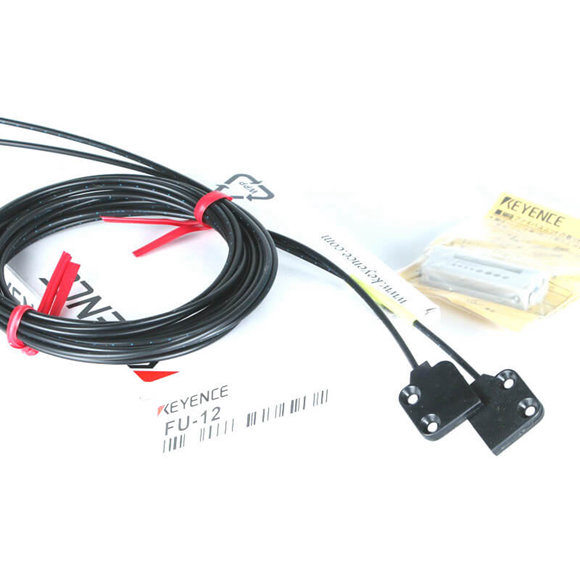

Model | FU-12*1 |
Optical axis diameter (Standard target to be detected) |
10 × 3 mm0.394″ × 0.118″ |
Optical axis width | 10 mm0.394″ |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø2.2 |
Minimum bend radius | R2 mm0.079″ Tough-Flex |
Environmental resistance
Ambient temperature |
-40 to +50 °C -40 to 122 °F |
Weight | Approx. 23 g |
