Keyence Fiber Sensors FU-66TZ FU-67TG FU-67TZ FU-77TG FU-70TU FU-77TZ

Series#: Keyence Fiber Optic Sensors

Product Details

Qty:

Specification

Model FU-66TZ*1
Size M4
Detection arrangement Parallel
Fibre unit length 2 m78.74″ free-cut
Fibre unit diameter ø1.3×2
Shape Threaded
Minimum bend radius R2 mm0.079″ Tough-Flex
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance Ambient temperature -40 to +50 °C -40 to 122 °F
Weight Approx. 10 g
Model FU-67TG*1
Size M6
Detection arrangement Parallel
Fibre unit length 1 m39.37″ cannot be cut
Shape Threaded
Minimum bend radius R10 mm0.394″ , stainless
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance Ambient temperature -40 to +50 °C -40 to 122 °F
Weight Approx. 32 g
Model FU-67TZ*1
Size M6
Detection arrangement Parallel
Fibre unit length 2 m78.74″ free-cut
Fibre unit diameter ø2.2×2
Shape Threaded
Minimum bend radius R2 mm0.079″ Tough-Flex
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance Ambient temperature -40 to +50 °C -40 to 122 °F
Weight Approx. 32 g
Model FU-77TG*1
Optical axis diameter
(Standard target to be detected)
ø1.13 mm 0.04″
Size M4
Fibre unit length 1 m 3.28′, cut not allowed.
Shape Hex-shaped
Minimum bend radius R10 mm R0.39″, Stainless Steel
Environmental resistance Ambient temperature -40 to +50 °C -40 to 122 °F
Weight Approx. 43 g
Model FU-77TZ*1
Optical axis diameter
(Standard target to be detected)
ø1.13 mm 0.04″
Size M4
Fibre unit length 2 m 6.56′, Free-cut
Fibre unit diameter ø2.2 ø0.09″
Shape Hex-shaped
Minimum bend radius R2 mm R0.08″, ToughFlex
Environmental resistance Ambient temperature -40 to +50 °C -40 to 122 °F
Weight Approx. 25 g

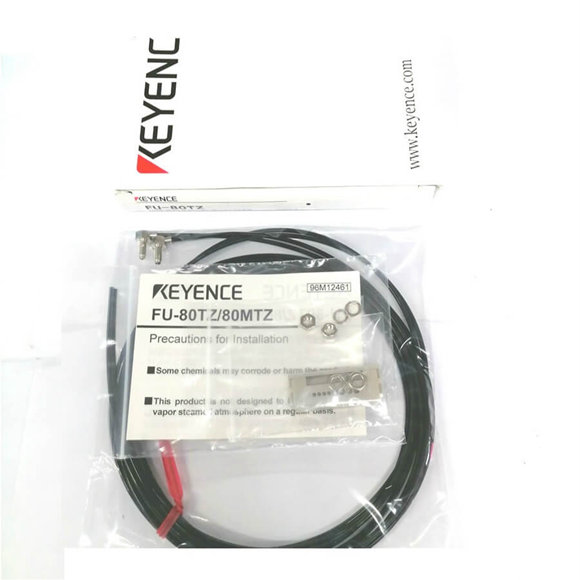

Model FU-80MTZ*1
Fibre unit length 2 m 6.56′
Minimum bend radius R2 mm
Minimum detectable object Opaque material with a diameter of 0.2 mm 0.008″*2
Tightening torque 6N・m
Environmental resistance

Ambient temperature

-20 to +100 °C -4 to 212 °F (No freezing)
Environmental resistance

Relative humidity

35 to 85 % RH (No condensation)
Weight Approx. 55 g
