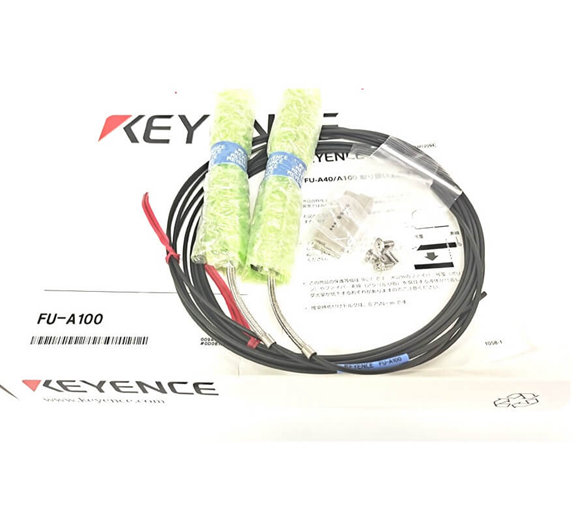

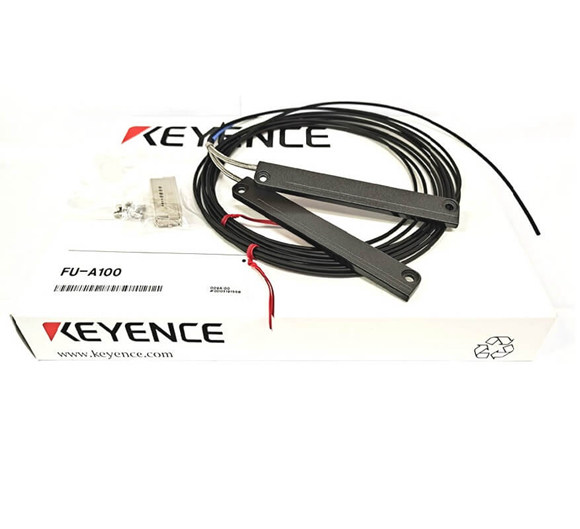

Model | FU-A100*1 |
Type | Array thrubeam 100 mm 3.94″ type |
Optical axis area (Standard detection target) (mm inch) | 100 × 0.25 mm3.937″ × 0.01″ |
Fibre unit length | 2 m 6.6′ *2 (Free-cut) ø2.2 mm ø0.09″ Spiral parts cannot be cut |
Minimum bend radius | R10 mm0.394″ |
Minimum detectable object | ø6 mm ø0.24″ opaque object*3 |
Tightening torque | 0.75 N∙m |
Enclosure rating | IP67 |
Ambient temperature | -20 to +50 °C -4 to 122 °F (No freezing) |
Relative humidity | 35 to 85 % RH (No condensation) |
Material | Case : Die-cast zinc, Detecting surface : PBT, Core fiber : Acrylic, Fiber sheath : Polyethylene |
Accessories | Fiber cutter, Mounting screws (M4 X L8, 4 units) |
Weight | Approx. 110 g |
Model | FU-A40*1 |
Type | Array thrubeam 40 mm 1.57″ type |
Optical axis area (Standard detection target) (mm inch) | 40 × 0.25 mm1.575″ × 0.01″ |
Fibre unit length | 2 m 6.6′ *2 (Free-cut) ø2.2 mm ø0.09″ Spiral parts cannot be cut |
Minimum bend radius | R10 mm0.394″ |
Minimum detectable object | ø2.5 mm ø0.10″ opaque object*3 |
Tightening torque | 0.75 N∙m |
Enclosure rating | IP67 |
Ambient temperature | -20 to +50 °C -4 to 122 °F (No freezing) |
Relative humidity | 35 to 85 % RH (No condensation) |
Material | Case : Die-cast zinc, Detecting surface : PBT, Core fiber : Acrylic, Fiber sheath : Polyethylene |
Accessories | Fiber cutter, Mounting screws (M4 X L8, 4 units) |
Weight | Approx. 70 g |
