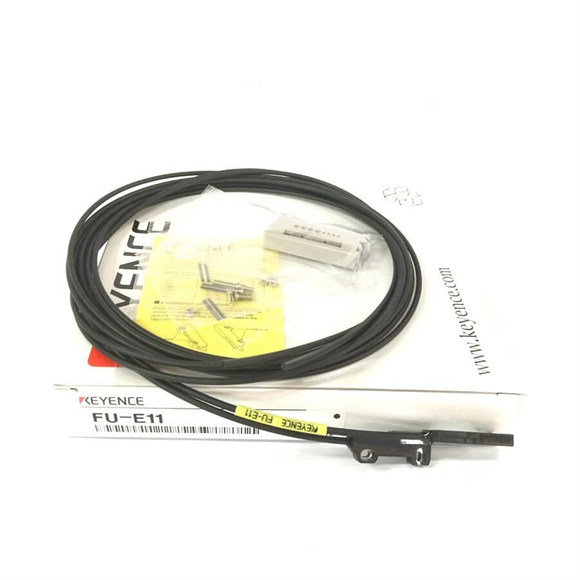

Model | FU-E11 |
Type | Area thrubeam |
No. of beam axes | 11 × 2 mm0.433″ × 0.079″, 11 × 1 mm0.433″ × 0.039″ (when the 1.0 mm0.039″ slit is attached), 11 × 0.5 mm0.433″ × 0.02″ (when the 0.5 mm0.02″ slit is attached) |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø2.2 |
Minimum bend radius | R2 mm0.079″ |
Minimum detectable object | Opaque material with a diameter of 0.2 mm0.008″*1 |
Tightening torque | 0.15 Nm |
Environmental resistance
Ambient temperature |
-40 to +50 °C -40 to 122 °F (No freezing) |
Relative humidity | 35 to 85 % RH (No condensation) |
Material | Main unit case : polybutylene terephthalate, screw mounting seat : SUS304, lens : norbornene plastic, core fiber : acrylic, fiber sheath : polyethylene |
Accessories | Mounting screws (M2 × 6), nuts (M2, t = 1.2), fiber cutter, slit (0.5 mm or 1.0 mm width) |
Weight | Approx. 20 g |
Model | FU-E40*1 |
Optical axis diameter (Standard target to be detected) |
40 × 3 mm1.575″ × 0.118″ |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø2.2×2 |
Minimum bend radius | R2 mm0.079″ Tough-Flex |
Ambient temperature | -40 to +50 °C -40 to 122 °F |
Weight | Approx. 30 g |
