Model | FU-37*1 | |
Beam emitting direction | Side | |
Fibre unit length | 2 m78.74″ free-cut | |
Fibre unit diameter | ø1.0×2 | |
Minimum bend radius | R10 mm0.394″ | |
Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 | |
Repetition accuracy | ― | |
Environmental resistance Ambient temperature | -40 to +70 °C -40 to 158 °F | |
Weight | Approx. 6 g | |

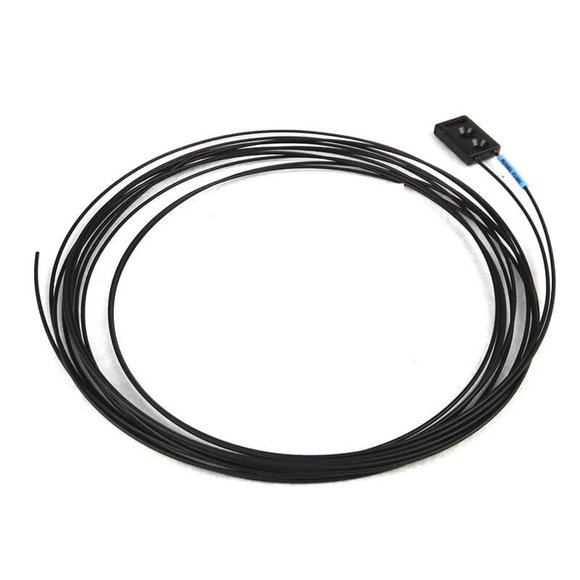

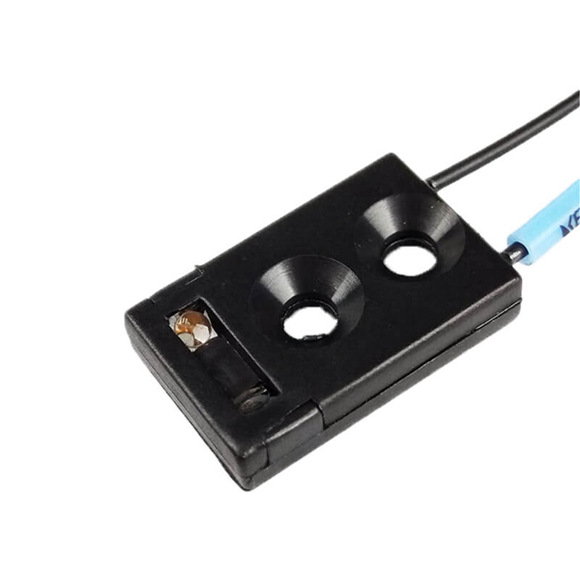

Model | FU-38*1 | |
Beam emitting direction | Flat | |
Fibre unit length | 2 m78.74″ free-cut | |
Fibre unit diameter | ø1.0×2 | |
Minimum bend radius | R10 mm0.394″ | |
Minimum detectable object | Gold wire with a diameter of 0.005 mm0.0002″ *2 | |
Environmental resistance
Ambient temperature |
-40 to +70 °C -40 to 158 °F | |
Weight | Approx. 5 g | |
Model | FU-38H*1 | |
Heat resistant temperature | 180°C 356°F*2*3 | |
Fibre unit length | 2 m78.74″ free-cut | |
Fibre unit diameter | ø2.2×2 | |
Minimum bend radius | R35 mm1.378″ | |
Environmental resistance
Ambient temperature |
-40 to +180 °C -40 to 356 °F | |
Weight | Approx. 45 g | |

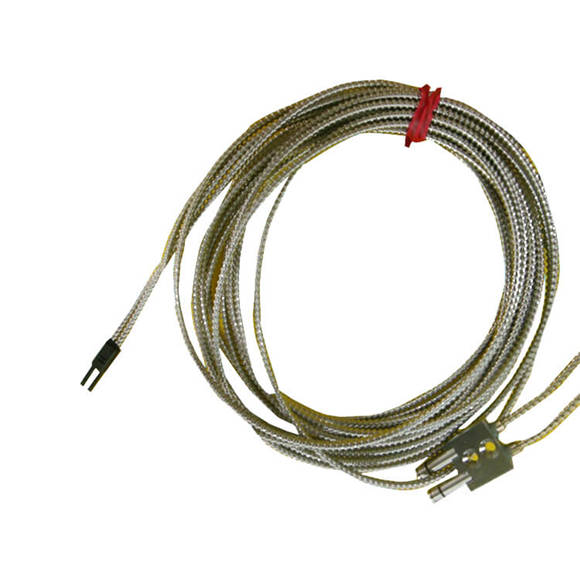

Model | FU-38K*1 | |
Heat resistant temperature | 250°C 482°F*2 | |
Fibre unit length | 1 m39.37″ cannot be cut | |
Minimum bend radius | R25 mm0.984″ | |
Environmental resistance
Ambient temperature |
-40 to +250 °C -40 to 482 °F | |
Weight | Approx. 45 g | |
Model | FU-38L*1 | |
Beam emitting direction | Flat | |
Fibre unit length | 2 m78.74″ free-cut | |
Fibre unit diameter | ø2.2×2 | |
Minimum bend radius | R25 mm0.984″ | |
Environmental resistance
Ambient temperature |
-40 to +60 °C -40 to 140 °F | |
Weight | Approx. 20 g |
