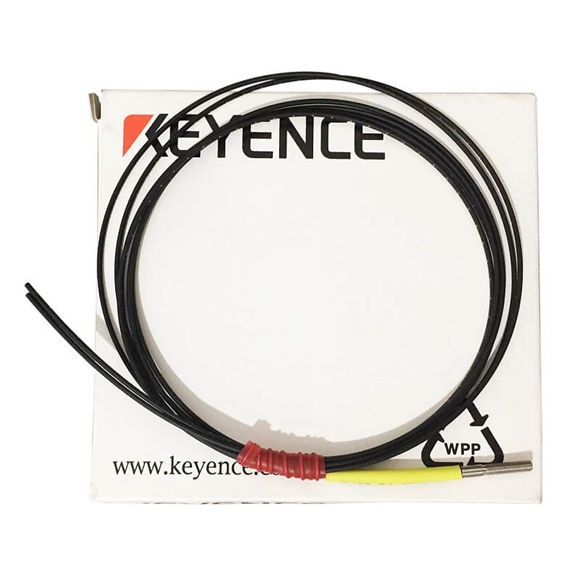

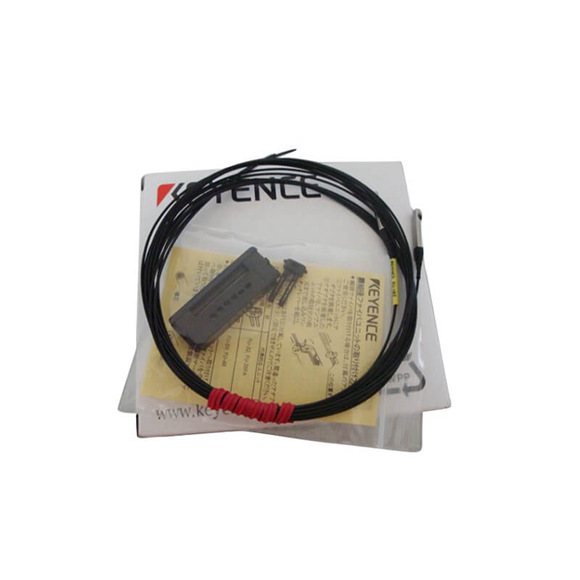

Model | FU-16*1 |
Optical axis diameter (Standard target to be detected) |
ø2.5 mm0.098″ |
Beam emitting direction | Side |
Aperture angle | Approx 6° |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø1.0 |
Minimum bend radius | R10 mm0.394″ |
Minimum detectable object | Object with a diameter of 0.1 mm0.004″*2 |
Environmental resistance
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
Weight | Approx. 8 g |
Model | FU-16Z*1 |
Optical axis diameter (Standard target to be detected) |
ø2.5 mm0.098″ |
Beam emitting direction | Side |
Aperture angle | Approx 6° |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø1.0 |
Minimum bend radius | R2 mm0.079″ Tough-Flex |
Minimum detectable object | Object with a diameter of 0.1 mm0.004″*2 |
Environmental resistance
Ambient temperature |
-40 to +50 °C -40 to 122 °F |
Weight | Approx. 8 g |

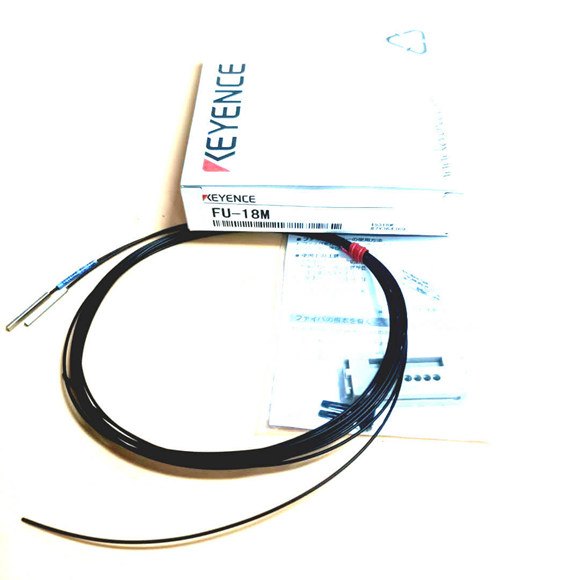

Model | FU-18*1 |
Optical axis diameter (Standard target to be detected) |
ø2.5 mm0.098″ |
Beam emitting direction | Side |
Aperture angle | Approx 2° |
Fibre unit length | 2 m78.74″ free-cut |
Fibre unit diameter | ø1.0 |
Minimum bend radius | R10 mm0.394″ |
Minimum detectable object | Object with a diameter of 0.1 mm0.004″*2 |
Environmental resistance
Ambient temperature |
-40 to +70 °C -40 to 158 °F |
Weight | Approx. 8 g |
