Keyence Fiber Unit Optic Sensors FU-21X FU-22X FU-23X FU-24X FU-2303

Series#: Keyence Fiber Unit Optic Sensors

Product Details

Qty:

Specification

Model FU-21X*1
Size M3
Detection arrangement Coaxial
Fibre unit length 50 cm19.685″ cannot be cut
Shape Straight
Minimum bend radius R25 mm0.984″
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance

Ambient temperature

-40 to +70 °C -40 to 158 °F
Weight Approx. 4 g

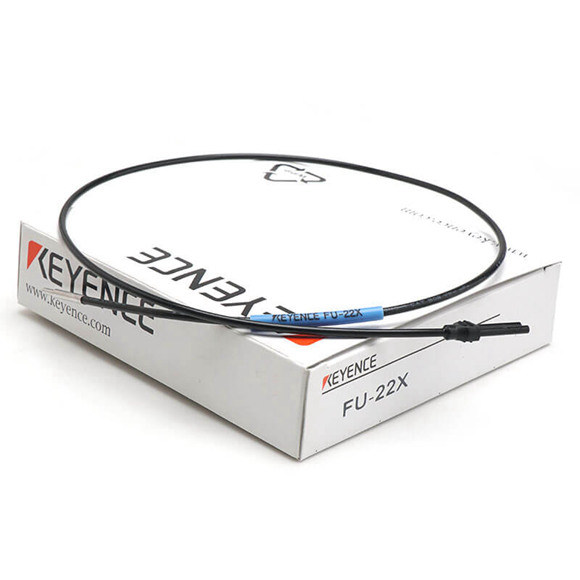

Model FU-22X*1
Fibre unit length 50 cm19.685″ cannot be cut
Minimum bend radius R25 mm0.984″
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance

Ambient temperature

-40 to +70 °C -40 to 158 °F
Weight Approx. 4 g

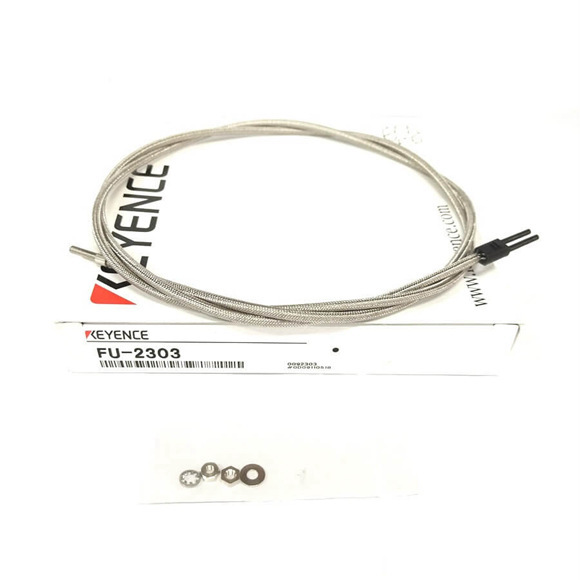

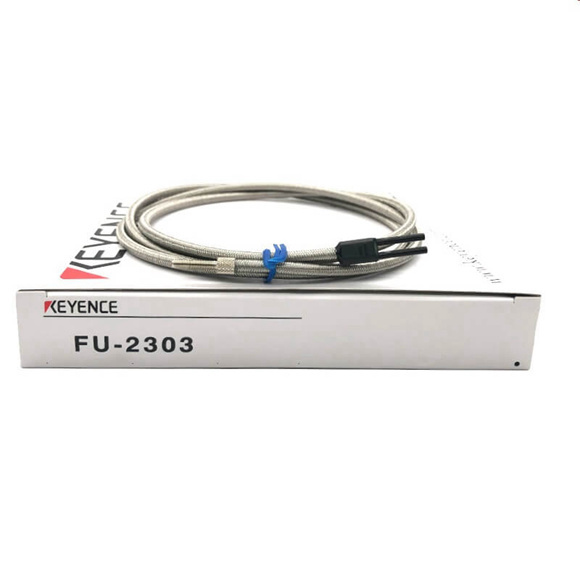

Model FU-2303
Detecting method Diffuse Reflective
Size M3
Detection arrangement Coaxial
Fibre unit length 1 m 39.37″, cut not allowed.
Shape Threaded
Minimum detectable object ø0.005 mm 0.0002″, gold wire
Diameter ø1.3 × 2
Environmental resistance

Ambient temperature

-40 to +50 °C -40 to 122 °F
Weight Approx. 15 g
Model FU-23X*1
Size ø3 mm0.118″
Fibre unit length 50 cm19.685″ cannot be cut
Minimum bend radius R25 mm0.984″
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance

Ambient temperature

-40 to +70 °C -40 to 158 °F
Weight Approx. 4 g

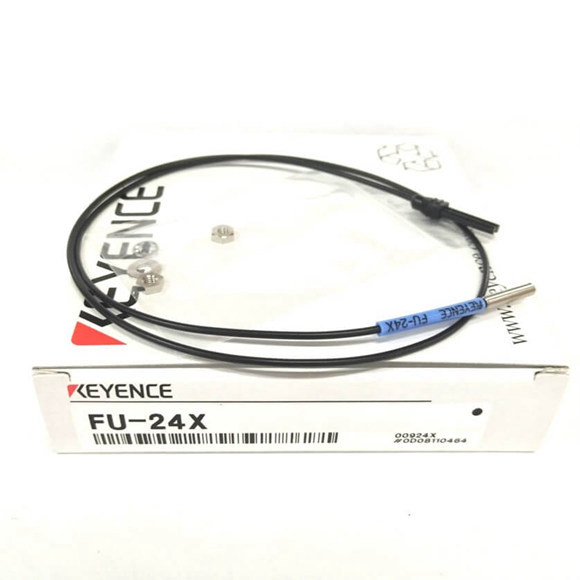

Model FU-24X*1
Size M3
Detection arrangement Coaxial
Fibre unit length 50 cm19.685″ cannot be cut
Shape Straight
Minimum bend radius R10 mm0.394″
Minimum detectable object Gold wire with a diameter of 0.005 mm0.0002″ *2
Environmental resistance

Ambient temperature

-40 to +50 °C -40 to 122 °F
Weight Approx. 4 g
