Keyence Fiber Unit Optic Sensors FU-35FA FU-35FG FU-35FZ FU-35TG FU-35TZ

Keyence Fiber Unit Optic Sensors FU-35FA FU-35FG FU-35FZ FU-35TG FU-35TZ

Series#: Keyence Fiber Optic Sensors

Product Details

Keyence Fiber Unit Optic Sensors FU-35FA FU-35FG FU-35FZ FU-35TG FU-35TZ
We are First Class Keyence sensor dealer and Keyence sensor distributor in China.
We can Supply all kinds of Keyence sensor parts,such as Keyence Digital Laser Sensors,Keyence Vision Sensors,Keyence Fiber Optic Sensors,Keyence Inductive Proximity Sensors,Keyence Photoelectric Sensors,Keyence Positioning Sensors and So on.
All parts are 100% Original and new in stock by Keyence and fast delivery time within 1 day
100% after sale service and technology Support
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

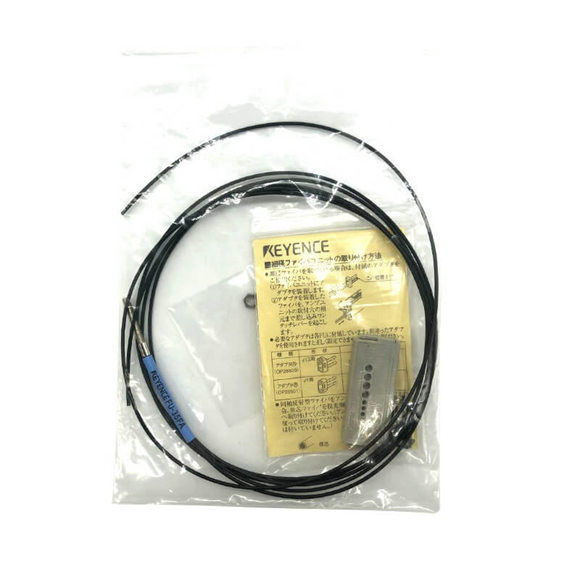

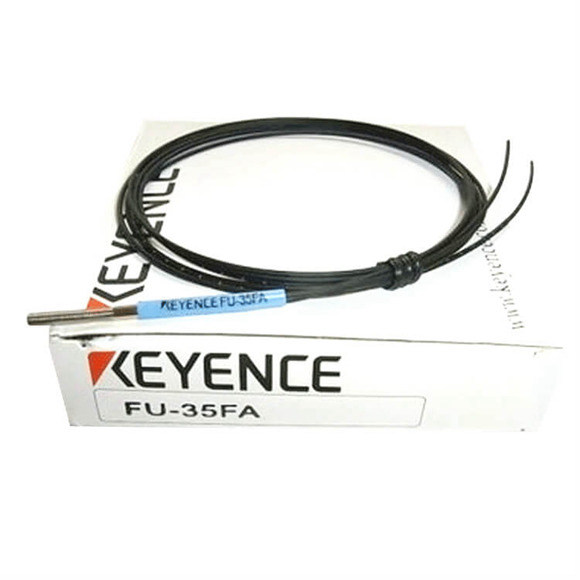

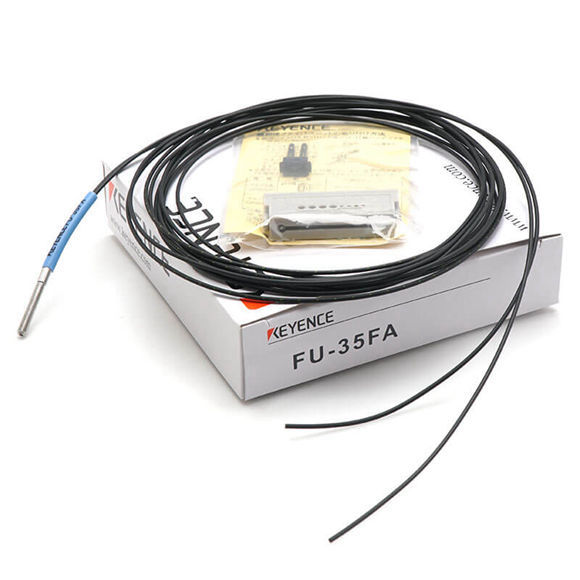

Model	FU-35FA^*1
Size	M3
Detection arrangement	Coaxial
Fibre unit length	1 m39.37″ free-cut
Fibre unit diameter	ø1.3×2
Shape	Straight
Minimum bend radius	R25 mm0.984″
Minimum detectable object	Gold wire with a diameter of 0.005 mm0.0002″ ^*2
Environmental resistance Ambient temperature	-40 to +70 °C -40 to 158 °F
Weight	Approx. 6 g
Model	FU-35FG^*1
Size	M3
Detection arrangement	Coaxial
Fibre unit length	1 m39.37″ free-cut
Fibre unit diameter	ø1.3×2
Shape	Straight
Minimum bend radius	R10 mm0.394″ , stainless
Minimum detectable object	Gold wire with a diameter of 0.005 mm0.0002″ ^*2
Environmental resistance Ambient temperature	-40 to +50 °C -40 to 122 °F
Weight	Approx. 15 g
Model	FU-35FZ^*1
Size	M3
Detection arrangement	Coaxial
Fibre unit length	1 m39.37″ free-cut
Fibre unit diameter	ø1.3×2
Shape	Straight
Minimum bend radius	R2 mm0.079″ Tough-Flex
Minimum detectable object	Gold wire with a diameter of 0.005 mm0.0002″ ^*2
Environmental resistance Ambient temperature	-40 to +50 °C -40 to 122 °F
Weight	Approx. 6 g
Model	FU-35TG^*1
Size	M6
Detection arrangement	Coaxial
Fibre unit length	1 m39.37″ cannot be cut
Shape	Threaded
Minimum bend radius	R10 mm0.394″ , stainless
Minimum detectable object	Gold wire with a diameter of 0.005 mm0.0002″ ^*2
Environmental resistance Ambient temperature	-40 to +50 °C -40 to 122 °F
Weight	Approx. 32 g

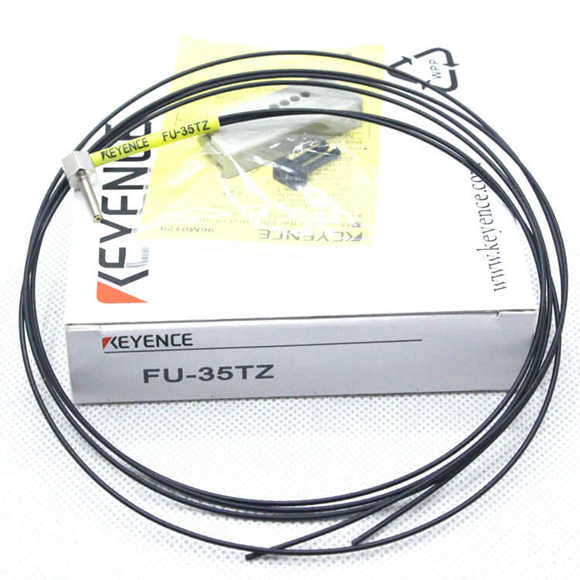

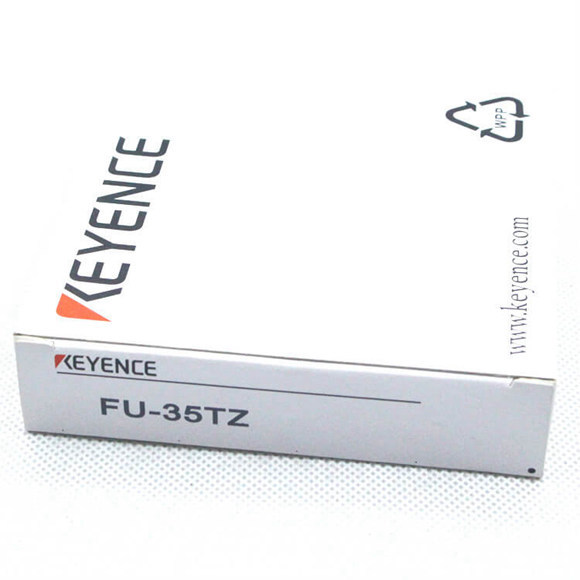

Model	FU-35TZ^*1
Size	M3
Detection arrangement	Coaxial
Fibre unit length	1 m39.37″ free-cut
Fibre unit diameter	ø1.3×2
Shape	Threaded
Minimum bend radius	R2 mm0.079″ Tough-Flex
Minimum detectable object	Gold wire with a diameter of 0.005 mm0.0002″ ^*2
Environmental resistance Ambient temperature	-40 to +50 °C -40 to 122 °F
Weight	Approx. 7 g
