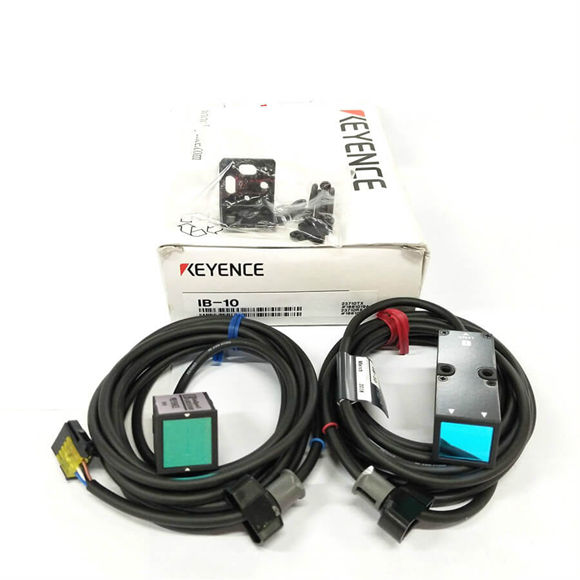

Keyence Beam Sensor IB-01 IB-05 IB-10 IB-30 IB-1000 IB-1500 IB-1050 IB-1550

Series#: Keyence Positioning Sensors

Product Details

Qty:

Specification

Model IB-01 IB-05 IB-10 IB-30
Wavelength 660 nm (Visible light semiconductor laser)
Laser Class Class 1 Laser Product (IEC 60825-1, FDA (CDRH) Part 1040.10*1)
Installation distance 0 to 2,000 mm 78.74″ 0 to 300 mm 11.81″
Measurement range ø1 mm ø0.04″ (Installation distance 0 to 300 mm 11.81″)
ø1 to 2.5 mm (Installation distance 300 to 2,000 mm 11.81″ to 78.74″)
5 mm 0.20″ 10 mm 0.39″ 30 mm 1.18″
Sampling cycle 12,500 times/sec. (80 µs)
Minimum detection target ø8 µm ø0.31 Mil (Installation distance 0 to 300 mm 11.81″)
ø8 to 50 µm ø0.31 to 1.97 Mil (Installation distance 300 to 2,000 mm 11.81″ to 78.74″)*2
ø0.05 mm ø0.002″*2 ø0.1 mm ø0.004″*2 ø0.2 mm ø0.01″*2
Repeatability 5 µm 0.20 Mil (distance 0 to 300 mm 11.81″)*3 5 µm 0.20 Mil*3 10 µm 0.39 Mil*3
Temperature characteristics ±0.2 % of F.S./°C*4 ±0.1 % of F.S./°C (±5 µm 0.20 Mil)*4 ±0.1 % of F.S./°C (±10 µm 0.39 Mil)*4 ±0.1 % of F.S./°C (±30 µm 1.18 Mil)*4
Operating indicators Laser emission warning indicator: green LED
Ambient light Incandescent lamp: 5,000 lux, Solar light: 10,000 lux Incandescent lamp: 5,000 lux, Solar light: 5,000 lux Incandescent lamp: 10,000 lux, Solar light: 10,000 lux
Ambient temperature 0 to +40 °C 32 to 104 °F (No freezing) 0 to +50 °C 32 to 122 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z axis
Case PBT Galvanized die cast
Lens cover Glass
Cable PVC (2 m 6.6′)
Weight Approx. 140 g Approx. 180 g Approx. 220 g Approx. 510 g
Model IB-1000 IB-1500 IB-1050 IB-1550
Type DIN rail mount Panel mount DIN rail mount Panel mount
Main unit/Expansion unit Main unit Expansion unit
Head compatibility Yes
Display resolution 0.01 %, 0.1 %, 1 % (switchable)
Display range –99.999 to 99.999, –99.99 to 99.99
–99.9 to 99.9, –99 to 99 (switchable)
Digital display method Dual7-segmentdisplay
Upper level: 5 red digits
Lower level: 5 green digits
Dual7-segmentdisplay
Upper level: 2-color (green/red) 5 digits
Lower level: 5 green digits
Dual7-segmentdisplay
Upper level: 5 red digits
Lower level: 5 green digits
Dual7-segmentdisplay
Upper level: 2-color (green/red) 5 digits
Lower level: 5 green digits
Operating indicators Judgment indicator: 2-color (green/red) LED (HI, GO, LO)
Bank indicator: Green LED x 4
Laser emission warning indicator: Green LED
Others: Green LED x 8, red LED x 3
Analog output voltage ±5 V, 1 to 5 V, 0 to 5 V Output impedance 100 Ω *1 No
Analog current output 4 to 20 mA Maximum load resistance 350 Ω *1
Control output

Judgment output (check output)

Open collector (NPN/PNP switchable, N.O./N.C. switchable) *3
Power supply

Power consumption

2400 mW or less (at 30 V, 80 mA max.) *4 *5 (including analog current output) 2550 mW or less (at 30 V, 85 mA max.) *4 *5 (including analog current output) 2400 mW or less (at 30 V, 80 mA max.) *4 *5 (including analog current output) 2550 mW or less (at 30 V, 85 mA max.) *4 *5 (including analog current output)
Rating

Power voltage

10 to 30 VDC, including ripple (P-P) 10% Class 2 or LPS *4 Supplied from main unit *4
Pollution degree 2
Ambient temperature -10 to +50 °C (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, compound amplitude 1.5 mm, 2 hours each for X, Y, Z axes
Material Main unit case/Front panel: polycarbonate, keytop: polyacetal, cable: PVC
Weight Approx. 150 g (including accessories) Approx. 170 g (including accessories) Approx. 140 g (including accessories) Approx. 165 g (including accessories)
