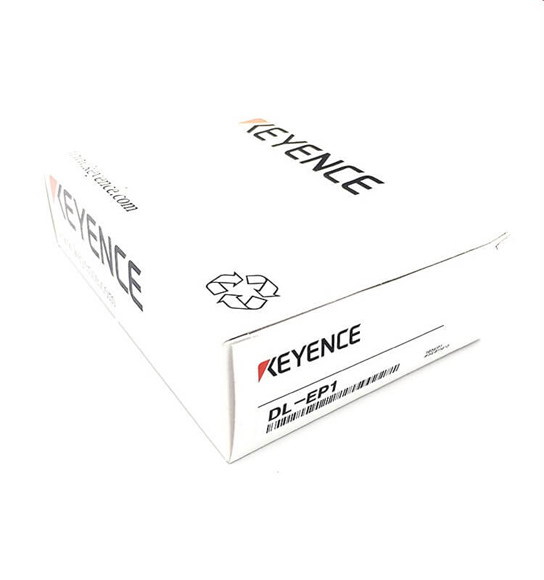

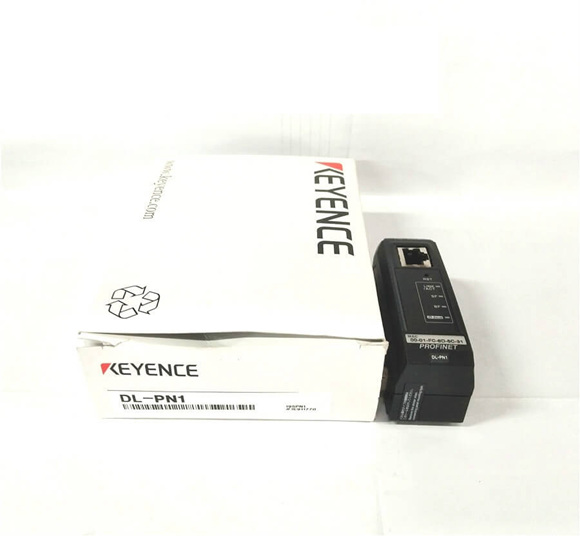

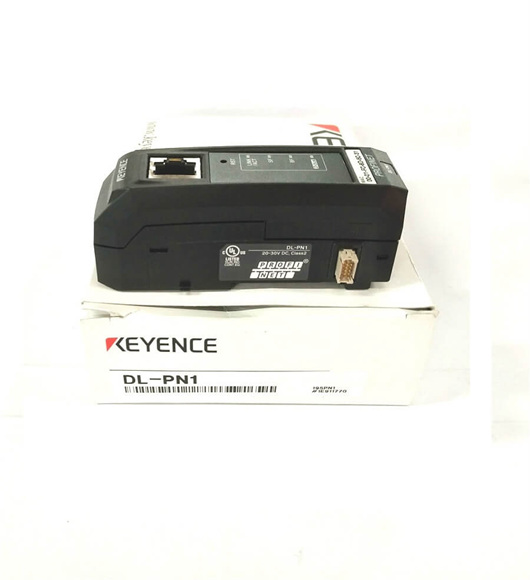

Keyence Network Communication Unit DL-EP1 DL-PN1 DL-PD1 DL-CL1

Series#: Keyence Photoelectric Sensors

Product Details

Qty:

Specification

Model DL-EP1*1
Indicator Link/activity indicator (LINK/ACT): Green LED, Module status indicator (MS): 2-color (green/red) LED,
Network status indicator (NS): 2-color (green/red) LED, Sensor communication indicator (D-bus) 2-color (green/red) LED
Connectable sensors Sensor amplifiers with D-bus support*2
Number of connectable sensor units Up to 15 units


Compliant functions

Cyclic communication (Implicit messaging)Message communication (Explicit messaging)Compatible with UCMM and Class 3
Number of connections 64
EtherNet/IPTM specifications

RPI (Transmission cycle)

0.5 to 10000 ms (0.5 ms unit)
EtherNet/IPTMspecifications

Tolerable communication bandwidth forcyclic communication

6000pps
EtherNet/IPTM specifications

Conformance test

Compatible with Version A7
Power voltage 20 to 30 VDC, including ripple, Ripple (P-P): 10% max. Class 2 (Supplied via connected sensor amplifier)
Power consumption 1500 mW or less (at 30 V 50 mA max)
Materials Main unit case: Polycarbonate
Weight Approx. 70g
Model DL-PN1
Type PROFINET Network communication unit


Conformance class

Conformance Class A
Number of connections 1
Compliant protocol LLDP, DCP
Update time 2 to 512 ms
Conformance test V2.2.4
Device type Data I/O Communication
Record data Communication
GSDML Version Ver. 2.3
Rating

Power voltage

20 to 30 VDC, including Ripple (P-P) 10 %
(Supplied from the connected sensor amplifier)
Weight Approx. 70 g (Including the connector)
Model DL-PD1
Connectable sensors Sensor amplifiers with D-bus support*1
Number of
connectable
sensor units
15 units max.*2
Device type DP-V1 Slave (D-sub 9 pin, Number of the ports: 1)
Communication speed 9.6 kbit/s to 12 Mbit/s
Cable length 9.6 / 19.2 / 45.45 / 93.75 kbit/s : 1200 m
187.5 kbit/s : 1000 m
500 kbit/s : 400 m
1.5 Mbit/s : 200 m
3 / 6 / 12 Mbit/s : 100 m
Power voltage 20 to 30 VDC, including ripple (p-p) 10%
(This voltage is supplied from the connected sensor amplifier.)
Power consumption 1600 mW or less (65 mA max. at 24 V)
Materials Main unit case and dust cover: Polycarbonate PROFIBUS connector: Steel – Nickel plating
Weight Approx. 65 g
Model DL-CL1*1
Supported version Version 2.00, version 1.10 (switchable)


No. of occupied stations

Version 2.00: 1 station x 8, 2 stations x 8, 4 stations x 2 (switchable), version 1.10: 1 station, 2 stations, 4 stations (switchable)
Station type Remote device station
Transmission speed 156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps
Station number settings 1 to 64
Power voltage 20 to 30 VDC, including ripple, Ripple (P-P): 10 % max. Class 2 (Supplied via connected sensor amplifier)
Weight Approx. 80 g
