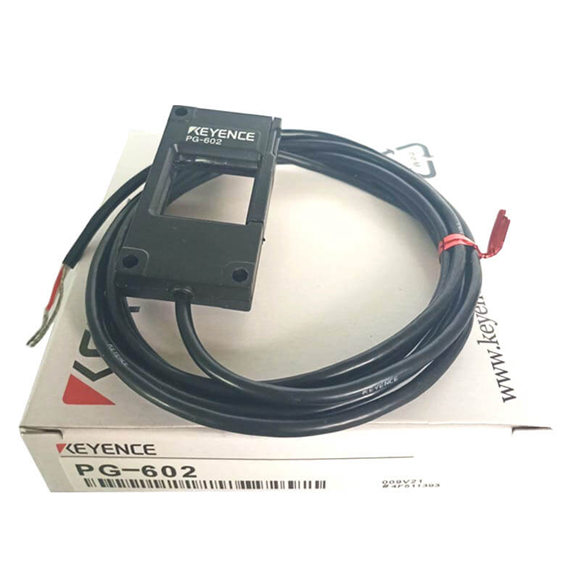

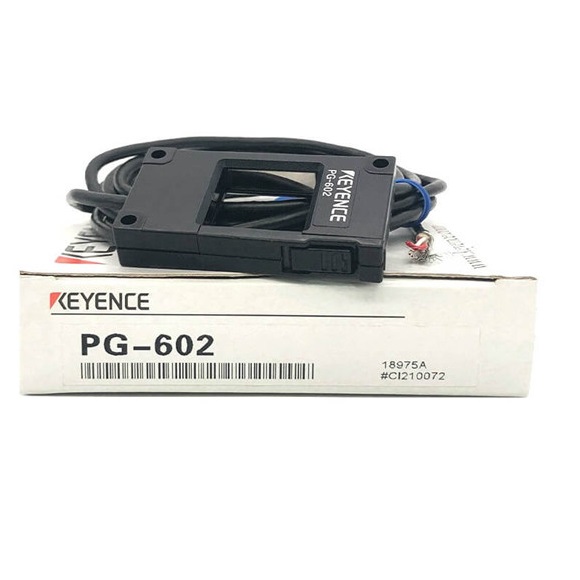

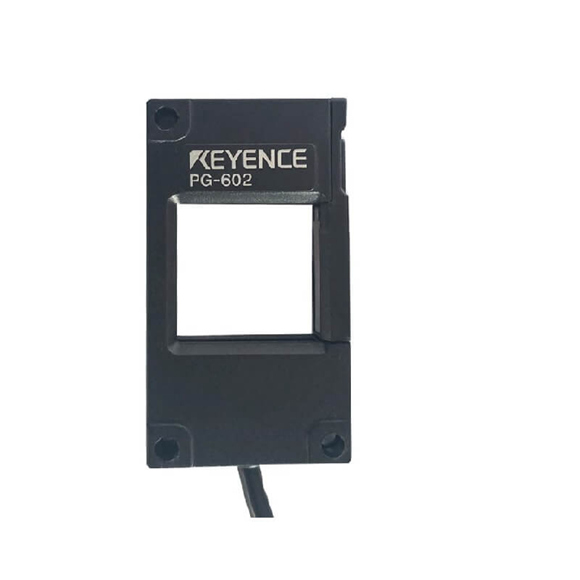

Model | PG-602 |
Type | Sensor head |

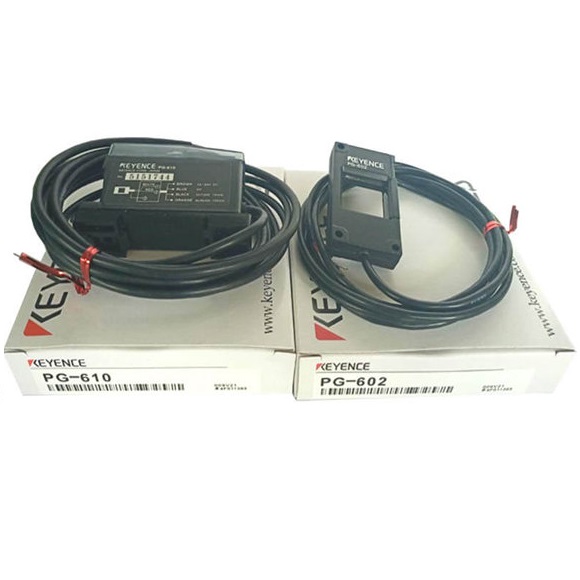

Amplifier unit | PG-610 |
Detecting area | 21 x 21 mm 0.83″ x 0.83″ |
Minimum detectable object | 0.5 mm 0.02″ dia. min. opaque materials |
Light source | Infrared LED |
Sensitivity adjustment | 1-turn trimmer |
Indicator lamp | Output: Red LED, Stable operation: Green LED |
Output Control output | NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*1 |
Self-diagnostic output | NPN: 100 mA max. (40 V max.) Residual voltage: 1 V max.*2 |
Response time | 0.2 ms*2 |
Off-delay time | 0.5 / 70 ms (selectable) |
Rating Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less |
Current consumption | 40 mA or less |
Environmental resistance
Ambient light |
Fluorescent lamp: 10,000 lux max., Sunlight: 1,500 lux max. |
Ambient temperature | -10 to +60 °C 14 to 140 °F (No freezing) |
Relative humidity | 35 to 85 % RH (No condensation) |
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions |
Material | Polycarbonate |
Weight | Sensor head (including 2-m 6.6′ cable): Approx. 40 g, |
