Type | Cable type | Connector type |

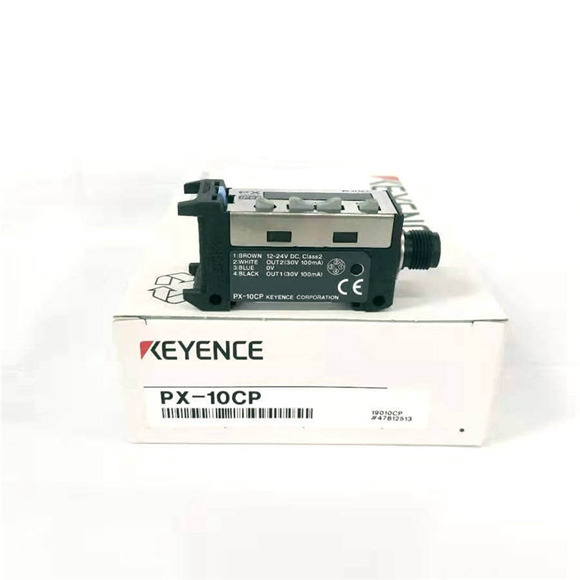

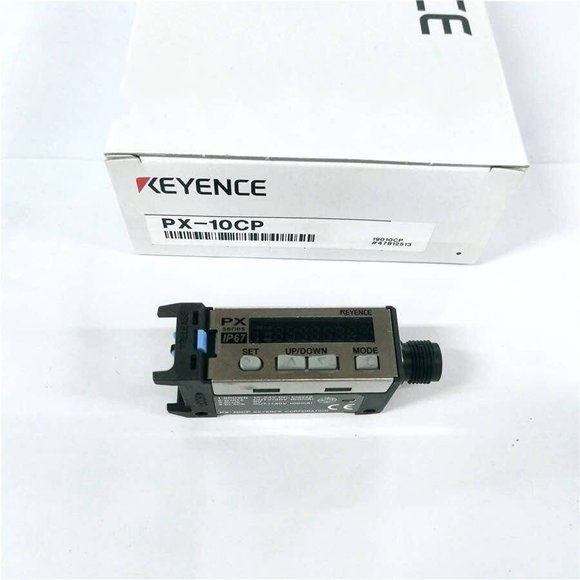

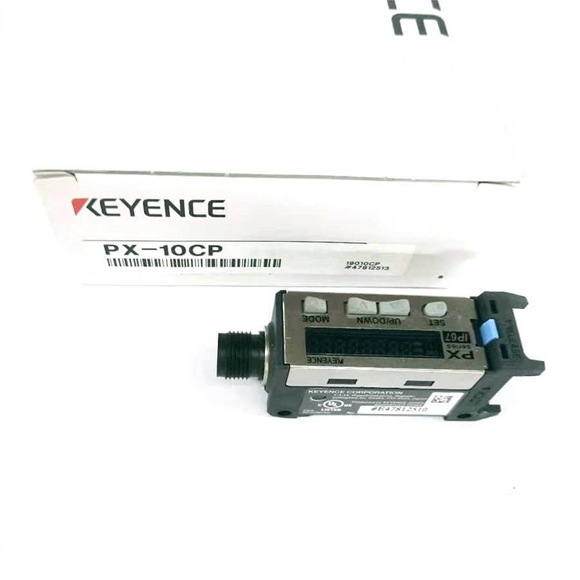

Model NPN output | PX-10 | PX-10C |
Model PNP output | PX-10P PX-10CP | |
Response time | 500us (TURBO)/1ms (SUPER)/4ms (ULTRA)/16ms (MEGA) | |
Output selection | LIGHT-ON/DARK-ON | |
Indicator |
– Operation indicator: Red LED x 2, DSC orange LED x 1
– Dual digital monitor: Dual 7-segment display [Preset value (4-digit green LED) and current value (4-digit red LED) illuminated together, current value range: 0 to 65504, excess gain: 0P to 999P] – Hold function: Possible to display both peak and bottom hold values. Selectable from 5 variations. – Bar LED monitor [Excess gain displayed (85% to 115% in 7 steps)] – Scaling display |
|
Detection mode | Light intensity (automatic sensitivity-tracking function provided)/[Limit light intensity/output monitor] | |
Shift function | 1999 to 9999 selectable | |
Timer function |
Timer OFF/OFF-delay/ON-delay/One-shot/ON-delay, OFF-delay/ON-delay One-shot Timer duration selectable: 1ms to 9999ms
Maximum error against the setting value: ±10% max. |
|
NPN output | NPN open-collector 40V, 100mA max. for an output/100mA max. for two outputs, residual voltage 1V max. | |
PNP output | PNP open-collector 30V, 100mA max. for an output /100mA max. for two outputs, residual voltage 1V max. | |
External input *1 | Input time 2ms (ON)/20ms (OFF) min. | |
Interference prevention*2 | Up to 4units (in all power modes) | |
Supply voltage*3 | 12 to 24VDC ripple (P-P) 10% max. Class2 | |
Current consumption | Standard mode: 50mA max. at 24V/ 55mA max. at 12V Power saving mode: 40mA max. at 24V/45mA max. at 12V | |
Enclosure rating | IEC: IP67/JEM: IP67/NEMA: 4X | |
Ambient temperature*4 | -10˚C to +55˚C 14 to 131˚F (No freezing) | |
Relative humidity | 35 to 85%RH (No condensation) | |
Vibration | 10 to 55Hz amplitude 1.5 mm 0.06″ 2 hours each in X, Y and Z axis | |
Materials | Housing: PBT, display: PSU, display cover/connector cover: SUS304, radiator plate: SUS304, gasket: NBR | |
Weight | 100 g (Including cable) | 50 g |
