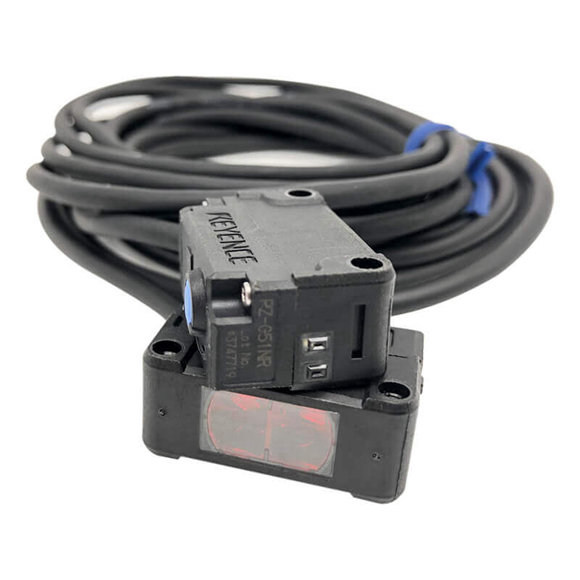

| Model | PZ-G51P | PZ-G52P | PZ-G41P | PZ-G42P | PZ-G101P | PZ-G102P | PZ-G61P | PZ-G62P |
| Type | Thrubeam Standard |
Thrubeam High-power |
Diffuse Reflective Long-range |
Diffuse Reflective Short-range |
Diffuse Reflective Narrow view reflective |
Diffuse Reflective Definite reflective |
Retro-reflective *2 Long-range (with P.R.O. function) |
Retro-reflective *2 Transparent object detection |
| Shape | Rectangular | |||||||
| Output | PNP | |||||||
| Cable connection | Cable (2 m 78.74″) *1 | |||||||
| Detecting distance | 20 m (65.6′) |
40 m (131.2′) |
1 m 3.3′ (When detecting 30 x 30 cm 11.81″x11.81″ white paper) |
300 mm 11.81″ (When detecting 10 x 10 cm 3.94″ x 3.94″ white paper) |
200 mm 7.87″ |
5 to 45 mm 0.20″ to 1.77″ |
0.1 to 4.2 m 0.3′ to 13.8′ (When R-2L reflector is used) |
0.1 to 1 m 0.3′ to 3.3′ (When R-2L reflector is used) |
| Spot diameter | ― | Approx. 5 mm 0.20″ dia. (At a detecting distance of 100 mm 3.94″) |
Approx. 2 mm 0.08″ dia. (At a detecting distance of 40 mm 1.57″) |
― | ||||
| Light source | Red LED | Infrared LED x 2 | Red LED | Infrared LED | ||||
| Sensitivity adjustment | 1-turn trimmer (230°) | |||||||
| Response time | 500 µs | |||||||
| Operation mode | LIGHT-ON/DARK-ON (switch-selectable) | |||||||
| Indicators (LED) | Power (T): Orange LED Output (R): Orange LED Stable operation: Green LED Light receiving: Red LED |
Output: Orange LED, Stable operation: Green LED |
||||||
| Control output | Open collector output, 30 V max., 100 mA max., Residual voltage: 1 V max. | |||||||
| Protection circuit | Reversed polarity, overcurrent protection, surge absorber | |||||||
| Interference suppression | Up to 2 units (When polarization filters are attached) |
Up to 2 units (with the automatic different frequency function) |
||||||
| Tightening torque | Rectangular models (Mounting hole part): 0.5 N m max. | |||||||
| Power voltage | 10 to 30 VDC, including Ripple (P-P) 10 % | |||||||
| Current consumption | Transmitter: 20 mA or less, Receiver: 28 mA or less | Transmitter: 25 mA or less, Receiver: 28 mA or less | 34 mA or less | |||||
|
Enclosure rating |
IEC: IP67/NEMA: 4A, 6, 12/DIN: IP69K | |||||||
| Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. | |||||||
| Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) | |||||||
| Relative humidity | 35 to 85 % RH (No condensation) | |||||||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||||||
| Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions | |||||||
| Material
Housing, M18 nut |
Glass-fiber reinforced PBT | |||||||
| Lens cover | Polyarylate (PAR) | Acrylic (PMMA) |
Polyarylate (PAR) | |||||
| Trimmer | Glass-fiber reinforced polyamide (PA) | |||||||
| Case connection | Screw: Nickel-plated iron and zinc, packing: nitrile butadiene rubber (NBR) | |||||||
| Cable (cable models only) | Polyvinyl chloride (PVC) | |||||||
| Connector (connector type with cable only) | ― | |||||||
| Accessories | Instruction manual | |||||||
| Weight | Rectangular cable models: Approx. 60 g (Thrubeam-models transmitter: Approx. 50 g) | |||||||
