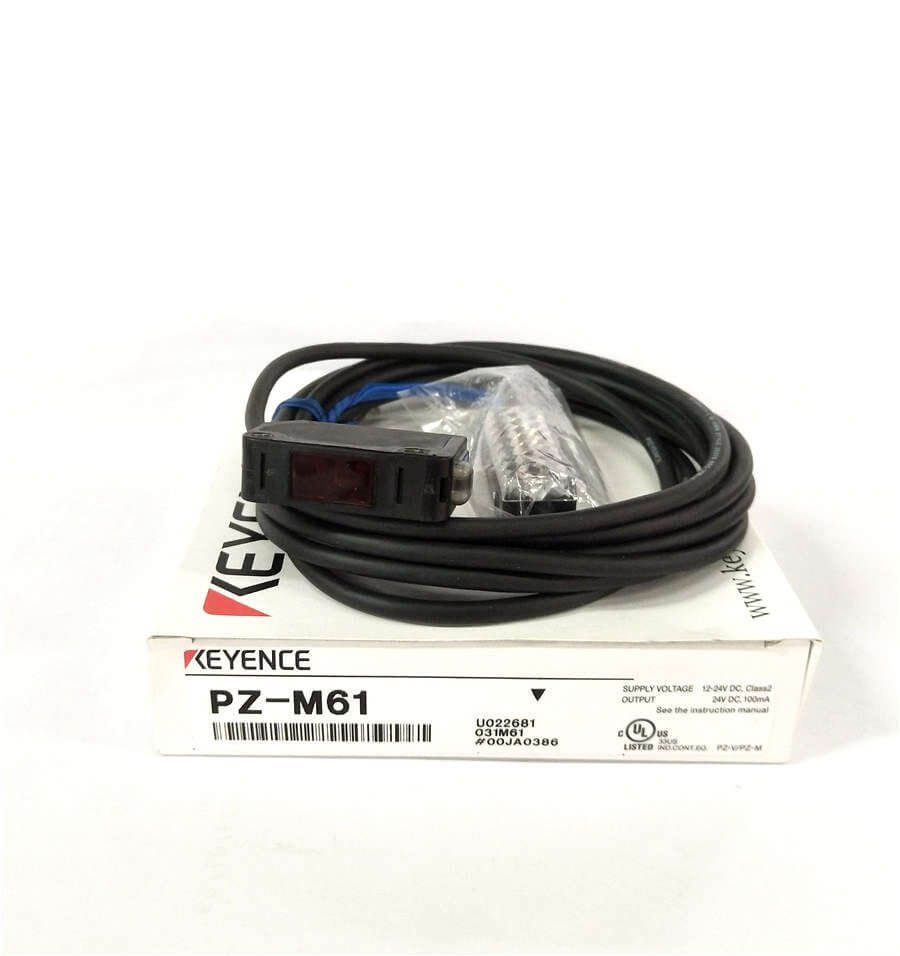

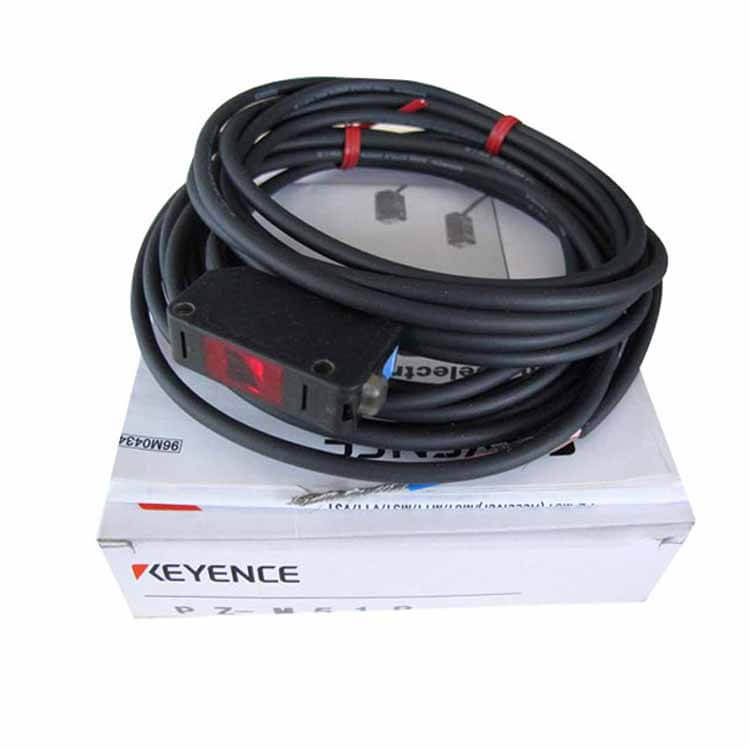

Model | PZ-M51 | PZ-M61 | PZ-M11 | PZ-M31 | PZ-M71 | PZ-V11 | PZ-V31 | PZ-V71 |
Type | Thrubeam | Polarized retro-reflective. |
Intelligent reflective | |||||
Output | NPN | |||||||
Detecting distance | 10 m 32.8′*1 | 0.1 to 1.5 m 0.3′ to 4.9′ (When R-5 reflector is used)*1 |
5 to 100 mm0.20″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1 | 5 to 300 mm0.20″ x 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1 | 20 to 900 mm 0.79″ x 35.43″ (300 x 300 mm 11.81″ x 11.81″ white mat paper)*1 |
5 to 100 mm0.20″ x 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1 | 5 to 300 mm0.20″ x 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper)*1 | 20 to 900 mm 0.79″ x 35.43″ (300 x 300 mm 11.81″ x 11.81″ white mat paper)*1 |
Setting distance | ― | 30 to 100 mm1.18″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper) | 40 to 300 mm1.57″ to 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper) | 150 to 900 mm5.91″ x 35.43″ (300 x 300 mm11.81″ x 11.81″white mat paper) | 30 to 100 mm1.18″ to 3.94″ (100 x 100 mm3.94″ x 3.94″white mat paper) | 40 to 300 mm1.57″ to 11.81″ (100 x 100 mm3.94″ x 3.94″white mat paper) | 150 to 900 mm5.91″ x 35.43″ (300 x 300 mm11.81″ x 11.81″white mat paper) | |
Light source. | Red LED | Infrared LED | Red LED | Infrared LED | ||||
Sensitivity adjustment | 1-turn trimmer (230°) | Automatic push button | ||||||
Response time | 1.5 ms max. | 2 ms max. | 1 ms max. | |||||
Operation mode | LIGHT-ON/DARK-ON (switch-selectable) | |||||||
Indicator lamp | Output and power: Orange LED, Stable operation: Green LED*2 | Output: orange LED, stable operation: green LED | ||||||
Control output | 100 mA (24 V) max., Residual voltage: 1 V max. | |||||||
Digital monitor | ― | 7-segment, 3-digit red LED | ||||||
Protection circuit | Reversed polarity, overcurrent protection, surge absorber | |||||||
Power voltage | 12 to 24 VDC ±10 %, Ripple (P-P) 10 % or less | |||||||
Power consumption | T: 24 mA max. , R: 27 mA max. | 34 mA max. | 30 mA max. | 38 mA max. | 37 mA max. | 45 mA max. | ||
Enclosure rating | IP67 | |||||||
Ambient light | Incandescent lamp: 5,000 lux max., Sunlight: 20,000 lux max. | |||||||
Ambient temperature | -20 to +55 °C -4 to 131 °F (No freezing) | |||||||
Relative humidity | 35 to 85 % RH (No condensation) | |||||||
Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||||||
Shock resistance | 1,000 m/s2, 6 times in each of the X, Y, and Z directions | |||||||
Case material | Glass-fiber reinforced plastic | |||||||
Accessories | ― | Reflector R-5 | ― | |||||
Weight | T: Approx. 50 g, R: Approx. 50 g (including 2-m 6.6′ cable) | Approx. 55 g (including 2-m 6.6′ cable) | Approx. 55 g (including 2-m 6.6′ cable). | Approx. 70 g (including 2-m 6.6′ cable) | Approx. 55 g (including 2-m 6.6′ cable) | Approx. 70 g (including 2-m 6.6′ cable) |
