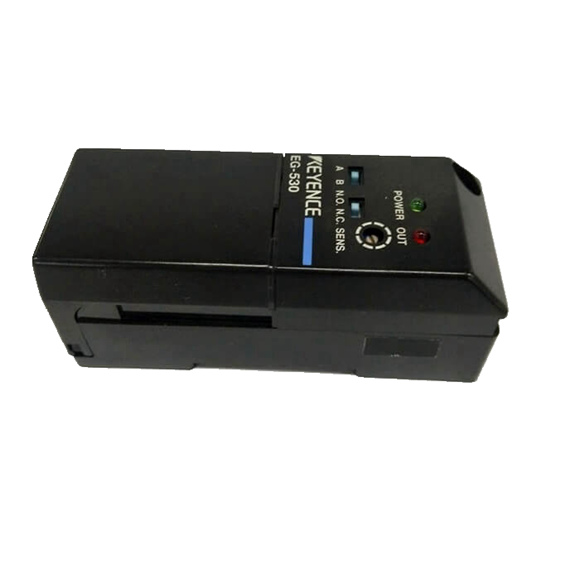

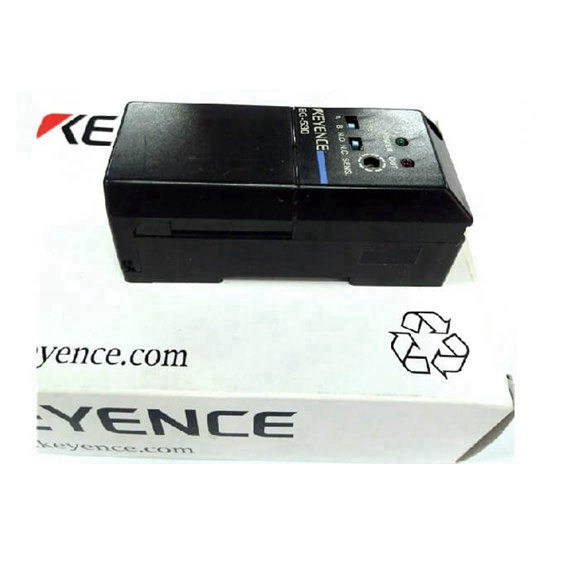

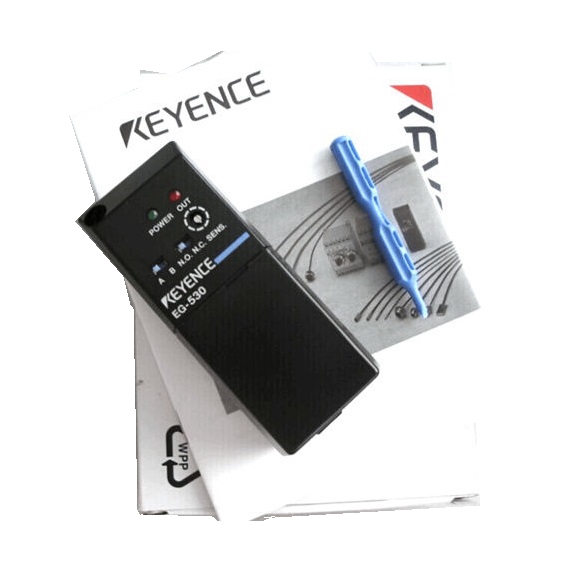

Keyence Positioning Sensor EG-520 EG-530 EG-540 EG-545 EG-547

Series#: Keyence Inductive Proximity Sensors

Product Details

Qty:

Specification

Model EG-520 EG-530 EG-540*2 EG-545*2 EG-547*3
Type DC AC AC adj-dial AC, tolerance setting*4
Sensitivity adjustment 15-turn trimmer 10-turn potentiometer dial


Operation mode

N.O./N.C. (switch-selectable) N.O./N.C. switch-selectable
(contact output only)
External synchronization,
analog voltage
switch-selectable
Operation mode

External synchronization

Equipment (contact output only) Equipment (both without contacts and with contacts)


Control output 1 (NPN)

200 mA max.
(40 V max.) Residual
voltage: 1 V max.
100 mA max. (40 V max.) Residual voltage: 1 V max.
Control output 2 SPDT, 250 VAC, 2 A max. (resistive load) DPST (N.O.), 250 VAC,
0.5 A max.
(resistive load)
Disconnection alarm output
(NPN)
100 mA max.
(40 V max.) Residual
voltage: 1 V max.
Response
time (Relay contact)
1 ms
10 ms 3 ms
OFF-delay time 65 ms (contact output only)
Temperature characteristics 0.08%/°C*1


Power voltage

11 to 30 VDC, Ripple (P-P) 10 % or less 12 to 24 VDC, Ripple (P-P) 10 % or less 110/120/220/240 VAC ±10 %, 50/60 Hz
Power consumption 100 mA max. 5 VA max.
Ambient temperature 0 to +50 °C 32 to 122 °F
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Weight Approx. 110 g Approx. 75 g Approx. 330 g Approx. 350 g Approx. 390 g
