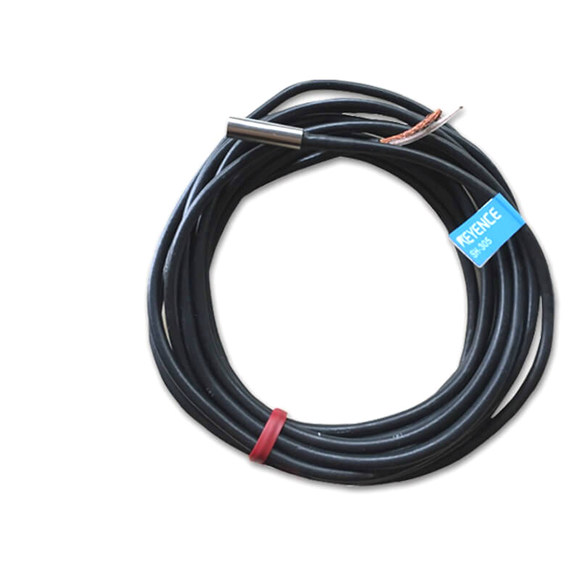

Keyence Positioning Sensor SH-302 SH-303A SH-305 SH-308 SH-110 SH-114 SH-614A

Series#: Keyence Inductive Proximity Sensors

Product Details

Qty:

Specification

Model SH-302*1 SH-303A SH-305 SH-308 SH-110 SH-114 SH-614A
Type Standard Shielded Cylindrical Standard Shielded Threaded Standard Shielded Thin
Shape ø2.8×12 Cylindrical ø3.8×18 Cylindrical ø5.4×18 Cylindrical ø8×18 Cylindrical M10×18 Threaded M14×18 Threaded 14×30×4.8 Thin
Detectable object Ferrous metal (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm <font color=”#0099ff”>0.04″</font>) 5 x 5 mm 0.20″*2 10 x 10 mm 0.39″ x 0.39″*2 15 x 15 mm 0.59″ x 0.59″*2
Stable detecting range 0 to 0.6 mm 0.02″ 0 to 0.8 mm 0.03″ 0 to 1 mm 0.04″ 0 to 2 mm 0.08″ 0 to 5 mm 0.20″
Maximum detecting distance 1.6 mm 0.06″ 2 mm 0.08″ 3 mm 0.12″ 5 mm 0.20″ 10 mm 0.39″
Repeatability 0.001 mm 0.00004″*2 0.002 mm 0.00008″*2
Hysteresis 0.03 mm 0.001″*2 0.05 mm 0.002″*2 0.01 mm 0.0004″*2 0.015 mm 0.0006″*2
Temperature characteristics 0.3%/°C*2 0.08%/°C*2 0.04%/°C*2
Enclosure rating IP67
Ambient temperature -10 to +60 °C 14 to 140 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Vibration resistance 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions
Weight Approx. 30 g Approx. 35 g Approx. 45 g Approx. 55 g Approx. 63 g Approx. 60 g
