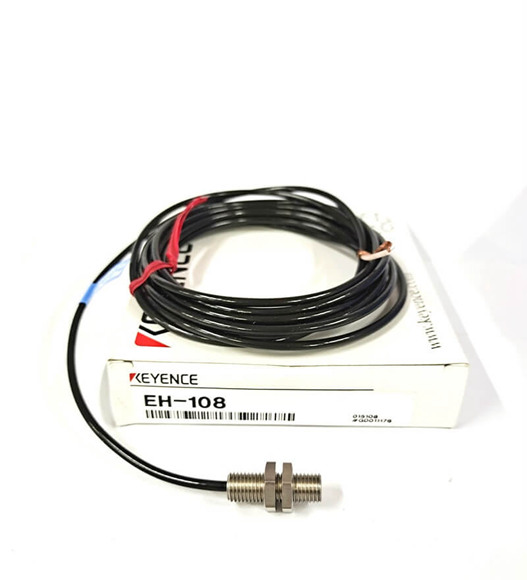

Keyence Proximity Sensor EH-605 EH-614A EH-108 EH-910 EH-305S EH-308S EH-110S

Series#: Keyence Inductive Proximity Sensors

Product Details

Qty:

Specification

Model EH-305S EH-308S EH-110S
Type with stainless steel spiral tube, Shielded , Cylindrical with stainless steel spiral tube , Shielded , Threaded
Detectable object Ferrous metals (see Characteristics for nonferrous metals)
Standard target (iron, t=1 mm <font color=”#0099ff”>0.04″</font>) 5 x 5 mm0.02″ 10 x 10 mm 0.39″ x 0.39″
Stable detecting range 0 to 1 mm0.04″ 0 to 2 mm0.08″
Maximum detecting distance 3 mm0.12″ 5 mm0.20″
Hysteresis 0.05 mm0.002″ 0.04 mm0.002″
Repeatability 0.002 mm0.00008″ 0.005 mm0.0002″
Temperature characteristics ±10% max. of detecting distance at 23°C 73.4°F, within -10 to +60°C 14 to 140°F
Enclosure rating IP67
Ambient temperature -10 to +60 °C 14 to 140 °F (No freezing)
Relative humidity 35 to 85 % RH (No condensation)
Weight Approx. 76 g (including nuts and 3-m 9.8′ cable) Approx. 88 g (including nuts and 3-m 9.8′ cable) Approx. 100 g (including nuts and 3-m 9.8′ cable)
