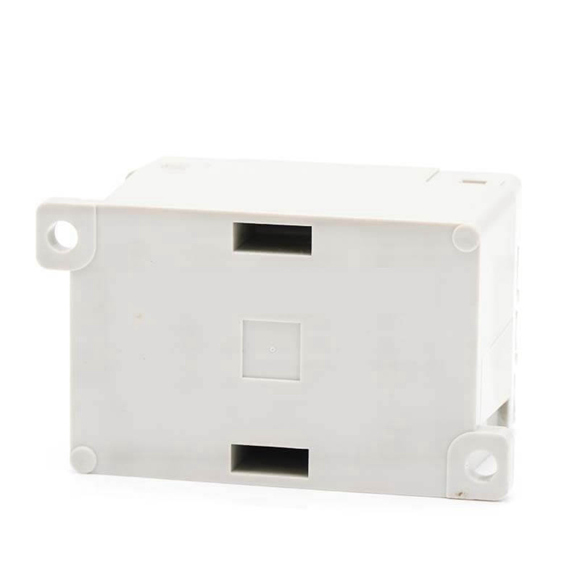

Model | ES-32DC | ES-X38 | ES-12AC*1 | ES-11AC*1 | ES-21AC*1 |
Type | DC | AC | |||
Operation mode | N.O./N.C. (switch-selectable) | N.O. | N.C. | ||
Indicator | Output: Red LED | ||||
Output
Control output |
NPN: 200 mA (40 V) max. Residual voltage: 1 V max. |
NPN: 100 mA (40 V) max. Residual voltage: 1 V max. |
Thyristor 115 VAC, 5 to 300 mA |
Thyristor 240 VAC, 5 to 300 mA | |
Disconnection alarm output | NPN: 100 mA (40 V) max. Residual voltage: 1 V max. | ― | |||
Leakage current (OFF time) | ― | 0.2 mA max. | |||
Response time | 1 ms max. | 10 ms max. | |||
Temperature characteristics | ±8% of detecting distance at 23°C 73.4°F, within 0 to 50°C 32 to 122°F | ||||
Sensitivity adjustment | 15-turn trimmer | ||||
Power voltage |
10 to 28 VDC, Ripple (P-P) 10 % or less | 12 to 24 VDC, Ripple (P-P) 10 % or less | 85 to 115 VAC 50/60 Hz | 85 to 240 VAC 50/60 Hz | |
Current/power consumption | 18 mA max. | 25 mA max. | 1.5 VA max. | 1 VA max. | |
Ambient temperature | 0 to +50 °C 32 to 122 °F | ||||
Relative humidity | 35 to 85 % RH (No condensation) | ||||
Weight | Approx. 48 g | Approx. 67 g (including 2-m 6.6′ cable) | Approx. 82 g | Approx. 125 g |
