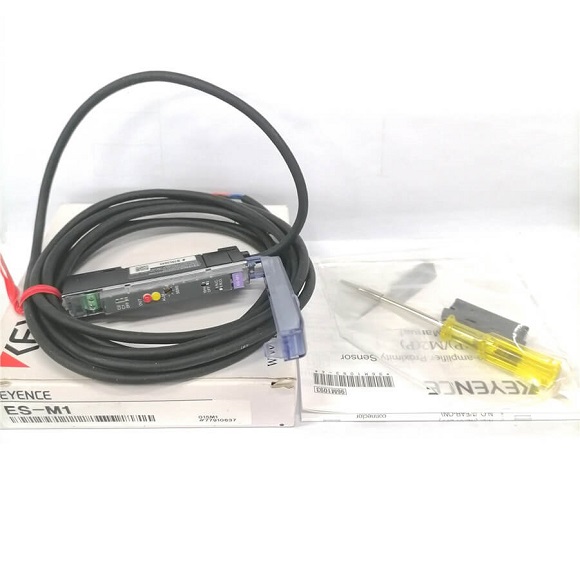

Model | ES-M1*1 | ES-M2*1 | ES-M1P*1 | ES-M2P*1 |
Type | One-line expansion system | |||
Shape | Main unit | Expansionunit | Main unit | Expansionunit |
Operation mode | N.O./N.C. switch-selectable | |||
Timer function | 10-ms delay / timer OFF switchable*2 | |||
Output | NPN | PNP | ||
Output
Control output |
NPN open collector 100 mA max. 40 V, residual voltage 1 V max. | PNPopen collector 100 mA max. 26.4 V, residual voltage 1 V max. | ||
Disconnection alarm output | NPN open collector 100 mA max. 40 V, residual voltage 1 V or less*3 |
―*3 | PNPopen collector 100 mA max. 26.4 V, residual voltage 1 V or less*3 |
―*3 |
Response time | 1 ms max. | |||
Temperature characteristics | Within ±8% of detecting distance at +23°C 73.4°F when within 0 to 50°C 32 to 122°F temperature range | |||
Sensitivity adjustment | 25-turn trimmer | |||
Protection circuit | Reverse power connection protection, output overcurrent protection, output surge protection | |||
Power voltage | 12 to 24 VDC, Ripple (P-P) 10 % or less | |||
Current/power consumption | 25 mA max. | |||
Ambient temperature | 0 to +50 °C 32 to 122 °F*4 | |||
Relative humidity | 35 to 85 % RH (No condensation) | |||
Weight | Approx. 65 g (including nuts and 2-m 9.8′ cable) | Approx. 35 g (including nuts and 2-m 9.8′ cable) | Approx. 65 g (including nuts and 2-m 9.8′ cable) | Approx. 35 g (including nuts and 2-m 9.8′ cable) |
