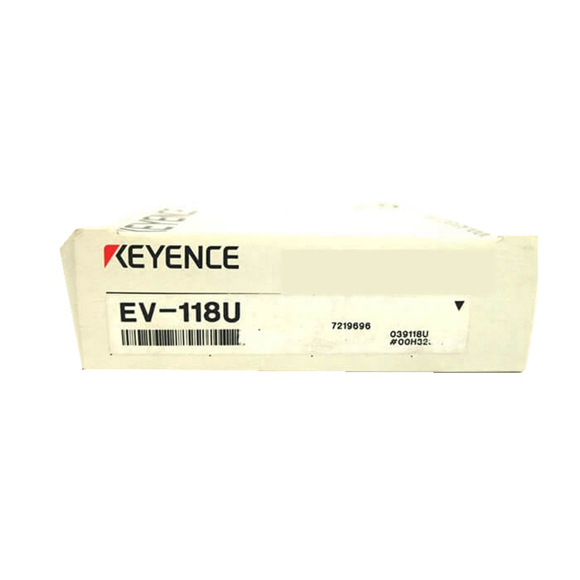

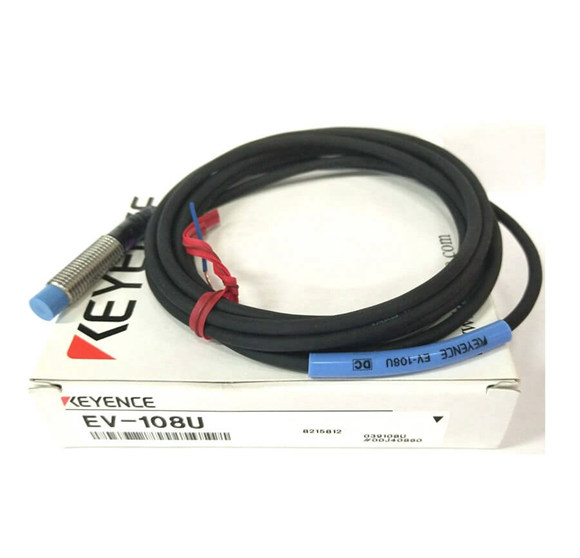

| Model | EV-108U*1 | EV-112U | EV-118U | EV-130U |
| Type | Non-shielded | DC , Non-shielded | ||
| Shape | M8 | M12 | M18 | M30 |
| Detecting distance | 4 mm 0.16″ ±10% | 8 mm 0.31″ ±10% | 15 mm 0.59″ ±10% | 27 mm 1.06″ ±10% |
| Detectable object | Ferrous metals (see Characteristics for nonferrous metals) | |||
| Standard target (iron, t=1 mm <font color=”#0099ff”>0.04″</font>) |
20 x 20 mm 0.79″ x 0.79″ | 30 x 30 mm 1.18″ x 1.18″ | 50 x 50 mm 1.97″ | 70 x 70 mm 2.76″ |
| Hysteresis | 20% max. of detecting distance, within -10 to +70°C 14 to 158°F | |||
| Response frequency | 800 Hz | 600 Hz | 350 Hz | 250 Hz |
| Operation mode | N.O. | |||
| Temperature characteristics | ±10% max. of detecting distance, within -10 to +70°C 14 to 158°F |
-5 to +20%, within -10 to +70°C 14 to 158°F |
||
| Control output (switching capacity) |
5 to 80 mA | 5 to 200 mA | ||
| Protection circuit | Reversed polarity,surge voltage | Reversed polarity, short-circuit, surge voltage | ||
| Cable length | 2 m 6.6′ | |||
| Power voltage | 12 to 24 VDC, Ripple (P-P) 20 % or less | |||
| Current consumption (leakage current) |
Current consumption (leakage current): 1.0 mA max., Residual voltage: 3.6 V max. (with 2-m 6.6′ cable) | |||
| Residual voltage | Residual voltage: 3.6 V max. (with 2-m 6.6′ cable) | |||
| Enclosure rating | IP67 | |||
| Ambient temperature | -25 to +80 °C -13 to 176 °F (No freezing) | |||
| Relative humidity | 35 to 95 % RH (No condensation) | |||
| Vibration resistance | 10 to 55 Hz, Double amplitude 1.5 mm 0.06″, 2 hours in each of the X, Y, and Z directions | |||
| Shock resistance | 500 m/s2, 3 times in each of the X, Y, and Z directions | 1,000 m/s2, 3 times in each of the X, Y, and Z directions | ||
| Case material | Stainless steel (SUS304) | Nickel-plated brass | ||
| Accessories | Nut × 2, toothed washer × 1, instruction manual | |||
| Weight | Approx. 42 g | Approx. 110 g | Approx. 140 g | Approx. 260 g |
