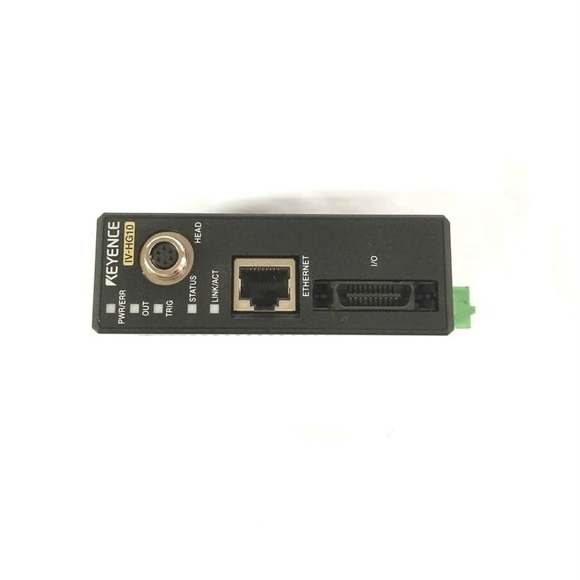

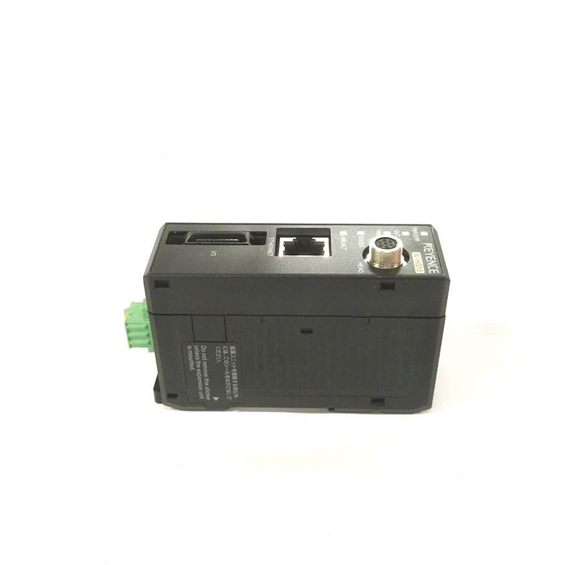

Keyence Vision Sensor IV-HG600MA IV-HG10 IV-HG15 IV-G600MA IV-G10 IV-G15

Series#: Keyence Vision Sensor

Product Details

Qty:

Specification

Model IV-G10 IV-G15
Type Main unit Expansion unit
Type Shape Detection, Color Area*1, Area*2, position adjustment
Number Detection tools: 16 tools, position adjustment tool: 1 tool*3
Switch settings (programs) 32 programs
Numbers When using a color type head: 100 images*4, when using a monochrome type head: 300 images*5*6
Condition NG only/All is selectable*6
Analysis information OFF/Statistics/Histograms is switchable
Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools
Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs*7
Other functions HDR, HighGain, Color filters*1, Digital zoom (2x, 4x)*8, Brightness correction, Tilt correction, White balance*1, Mask outline, Mask area, Test run, ToolAutoTune, Input monitor,
Output test, Security settings, Simulator, Mutual interference prevention, Total judgment result output, Direct connection (2 units or more), Failing sensor list, Failure hold
Indicators PWR/ERR, OUT, TRIG, STATUS, LINK/ACT


Type

Non-voltage input/voltage input is switchable
For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)
Inputs 6 inputs (IN1 to IN6)
Function IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input


Type

Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-G15]), remaining voltage 1.5 V or lower
For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-G15]), remaining voltage 2 V or lower
Outputs 8 outputs (OUT1 to OUT8)
Function Enable by assigning the optional functions
Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool,
Result of the logical operation of each tool, Main unit/expansion unit logical output


Standard

100BASE-TX/10BASE-T*9
Connector RJ-45 8pin connector*9
Network function FTP client, EtherNet/IPTM, PROFINET
Material Main unit case: Polycarbonate
Weight Approx. 150 g
Model IV-HG10 IV-HG15
Type Main unit Expansion unit
Type Shape Detection, Color Area*1, Area*2, Edge Pixels, Width/Height, Diameter, Edge Presence, Pitch, Position Adjustment, High Speed Position Adjustment (1-Axis/2-Axis Adjustment), OCR*3
Number Detection tools: 16 tools, position adjustment tool: 1 tool*4
Switch settings (programs) 32 programs


Numbers

When using a color type head: 100 images*5, when using a monochrome type head: 300 images*6*7
Condition NG only/All is selectable*7
Analysis information OFF/Statistics/Histograms/Matching rate list is switchable
Statistics: Processing time (latest value, MAX, MIN, AVE), number of OKs, number of NGs, trigger numbers, trigger errors, judgment results list by tools
Histograms: Histogram, matching degree (latest value, MAX, MIN, AVE), numbers of OKs, numbers of NGs
Matching rate list: Judgment results list by tools, matching rate list by tools, judgment bar list by tools*8
Other functions HDR, HighGain, Color filters*1, Digital zoom (2x, 4x)*9, Brightness correction, Tilt correction, White balance*1, Mask function, Color histogram, Test run, ToolAutoTune, Input monitor, Output test, Security settings, Simulator, Mutual interference prevention, Direct connection (2 units or more), Sensor date/time information addition, Scaling function, Failing sensor list, Failure hold
Indicators PWR/ERR, OUT, TRIG, STATUS, LINK/ACT


Type

Non-voltage input/voltage input is switchable
For non-voltage input: ON voltage 2 V or lower, OFF current 0.1 mA or lower, ON current 2 mA (short circuit)
For voltage input: Maximum input rating 26.4 V, ON voltage 18 V or higher, OFF current 0.2 mA or lower, ON current 2 mA (for 24 V)
Inputs 6 inputs (IN1 to IN6)
Function IN1: External trigger, IN2 to IN6: Enable by assigning the optional functions
Assignable functions: Program switching, Clear error, External master image registration, Main unit/expansion unit simultaneous input


Type

Open collector output NPN/PNP is switchable, N.O./N.C. is switchable
For open collector NPN output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 1.5 V or lower
For open collector PNP output: Maximum rating 26.4 V 50 mA (20 mA when linked to an expansion unit [IV-HG15]), remaining voltage 2 V or lower
Outputs 8 outputs (OUT1 to OUT8)
Function Enable by assigning the optional functions
Assignable functions: Total judgment result, RUN, BUSY, Error, Position adjustment result, Judgment result of each tool,
Result of the logical operation of each tool, Main unit/expansion unit logical output


Standard

100BASE-TX/10BASE-T*10
Connector RJ-45 8pin connector*10
Network function FTP client, EtherNet/IPTM, PROFINET


Power voltage

24 VDC ±10 % (including ripple) Supplied from main unit
Current consumption 0.8 A or less. 1.5 A or less when also using an expansion unit (IV-HG15). (The output load is excluded.)
Ambient temperature 0 to +50 °C 32 to 122 °F (No freezing)*11
Relative humidity 35 to 85 % RH (No condensation)
Material Main unit case: Polycarbonate
Weight Approx. 150 g
