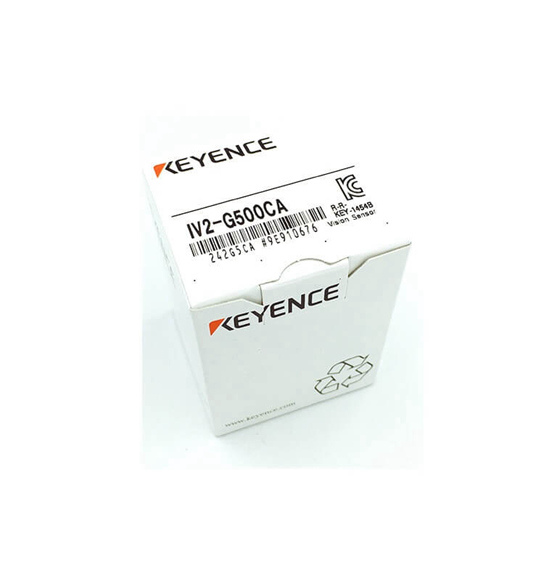

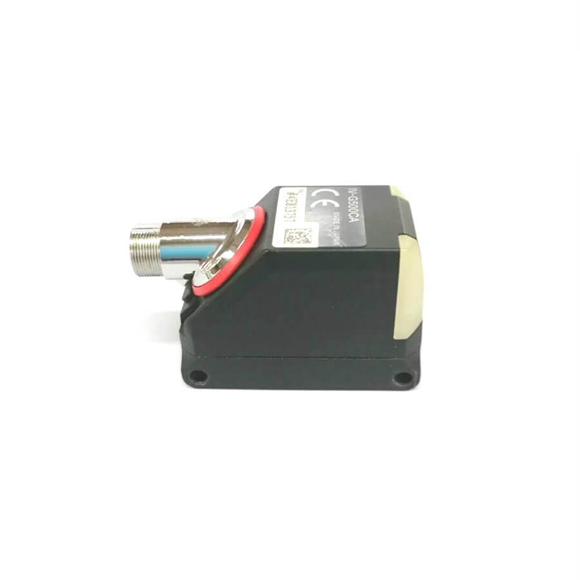

| Model | IV2-G500CA | IV2-G500MA | IV2-G150MA | IV2-G300CA | IV2-G600MA |
| Type | Standard model | Narrow field of view sensor model | Wide field of view sensor model | ||
| Reference distance | 20 to 500 mm 0.79″ to 19.69″ | 40 to 150 mm 1.57″ to 5.91″ | 40 to 300 mm 1.57″ to 11.81″ | 40 to 600 mm 1.57″ to 23.62″ | |
| Field of view | Installation distance of 20 mm 0.79″: 10 (H) × 7.5 (V) mm 0.39″ (H) × 0.30″ (V) to Installation distance of 500 mm 19.69″: 200 (H) × 150 (V) mm 7.87″ (H) × 5.91″ (V) |
Installation distance of 40 mm 1.57″: 8 (H) × 6 (V) mm 0.31″ (H) × 0.24″ (V) to Installation distance of 150 mm 5.91″: 32 (H) × 24 (V) mm 1.26″ (H) × 0.94″ (V)*4 |
Installation distance of 40 mm 1.57″: 42 (H) × 31 (V) mm 1.65″ (H) × 1.22″ (V) to Installation distance of 300 mm 11.81″: 275 (H) × 206 (V) mm 10.83″ (H) × 8.11″ (V) |
Installation distance of 40 mm 1.57″: 42 (H) × 31 (V) mm 1.65″ (H) × 1.22″ (V) to Installation distance of 600 mm 23.62″: 550 (H) × 412 (V) mm 21.65″ (H) × 16.22″ (V) |
|
|
Type |
1/3 inch color CMOS | 1/3 inch monochrome CMOS | 1/3 inch color CMOS | 1/3 inch monochrome CMOS | |
| Number of pixels | 752 (H) × 480 (V) | ||||
| Focus adjustment | Automatic*1 | ||||
| Exposure time | 1/10 to 1/50000 | 1/20 to 1/50000 | 1/25 to 1/50000 | 1/50 to 1/50000 | |
| Illumination | White LED | Infrared LED | |||
| Lighting method | Switchable between pulse lighting and DC lighting | Pulse lighting | |||
| Indicators | 2 (the same display details for both indicators) | ||||
|
Enclosure rating |
IP67*2 | ||||
| Ambient temperature | 0 to +50°C 32 to 122°F (No freezing) | ||||
| Relative humidity | 35 to 85% RH (No condensation) | ||||
| Vibration resistance | 10 to 55 Hz; double amplitude 1.5 mm 0.06″; 2 hours in each of the X, Y, and Z directions*3 | ||||
| Shock resistance | 500 m/s2 1640.4’/s2, 6 times in each of the 3 directions*3 | ||||
| Material | Main unit case: Zinc die-casting, Front cover: Acrylic (hard coat), Operation indicator cover: TPU | ||||
| Weight | Approx. 75 g | ||||
