Rating | LCP-31FM | LCP-32FM | LCP-33FM | LCP-32FI* |
Pole | 1 | 2 | 3 | 2 |
Rated insulation voltage (Ui) | 250V / 65V | 250V / 125V | 250V | 250V / 125V |
Rated current | 0.1, 0.3, 0.5, 1, 2, 3, 5, 7, 10, 15, 20, 25, 30A | 2,3,5,10,15,20,30A | ||
Rated breaking capacity
IEC60947-2 |
1500 | 1500 | 1500 | 1500 |
Rated breaking capacity
IEC60934 |
2500 | 2500 | 2500 | 2500 |
Trippping mechanism | Hydraulic-magnetic | |||
Electrical durability | 10,000 operation or more | |||
Terminal (self-lifting)
Main circuit |
M5 (25A or over), M4 (20A or less) | |||

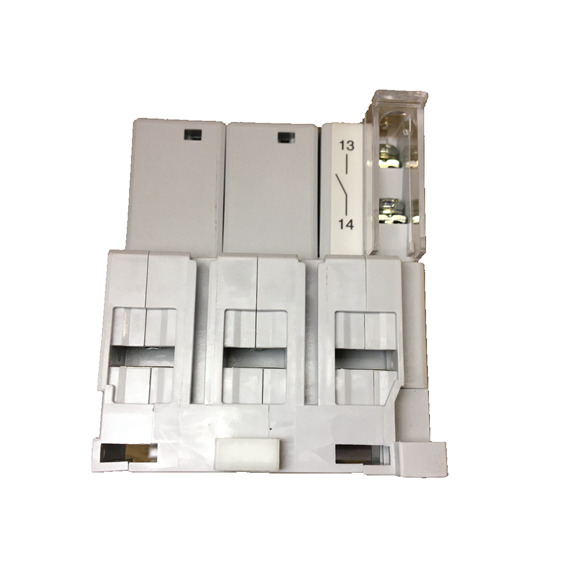

Auxiliary circuit | M3.5 | |||

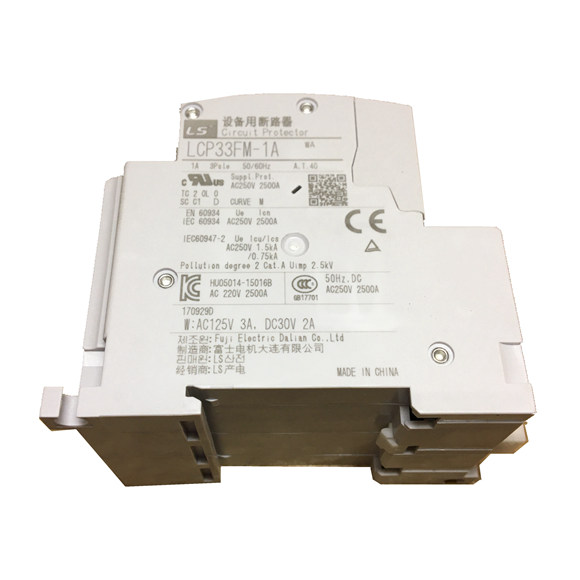

Standards | IEC/EN (CE), GB (CCC), UL, TUV | |||
Mass (Approx) | 80g | 160g | 240g | 160g |
