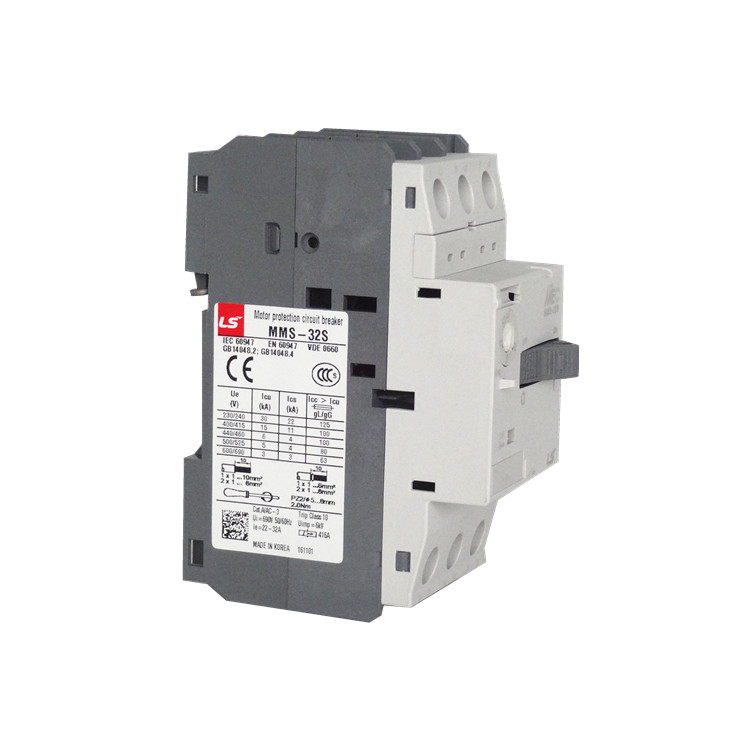

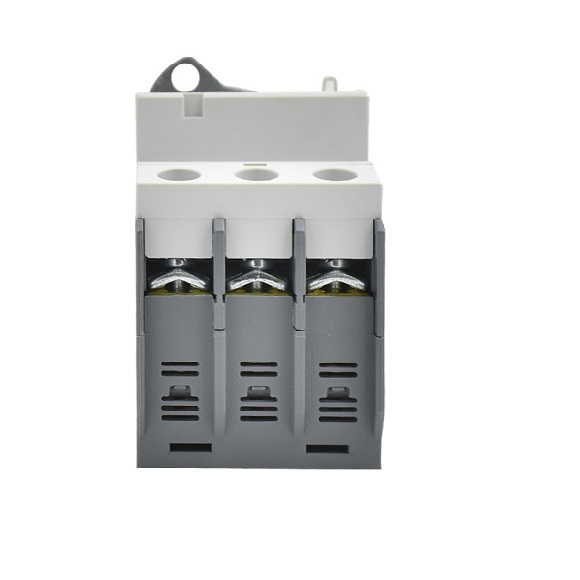

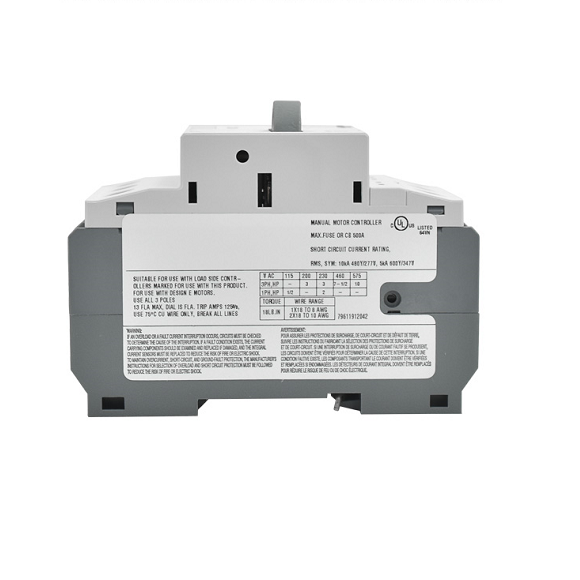

Type | Rated operational current Ie[A] |
Themal release Adjustment range[A] |
Magnetic release Operating current[A] |
Switching of 3 phase AC motors, AC-2, AC-3 | 400/415V | ||||||
3-phase[kW](50/60Hz) | 3-phase[kW](50/60Hz) | ||||||||||
230V | 400V | 690V | 230V | 400V | 690V | Icu[kA] | Icu[kA] | ||||
MMS-32S | 0.16 | 0.1…0.16 | 2.1 | – | 0.02 | – | – | – | – | 100 | 100 |
MMS-32S | 0.25 | 0.16…0.25 | 3.3 | 0.03 | 0.06 | – | – | – | – | 100 | 100 |
MMS-32S | 0.4 | 0.25…0.4 | 5.2 | 0.06 | 0.09 | – | – | – | – | 100 | 100 |
MMS-32S | 0.63 | 0.4…0.63 | 8.2 | 0.09 | 0.12 | 0.25 | – | – | – | 100 | 100 |
MMS-32S | 1 | 0.63…1.0 | 13 | 0.12 | 0.25 | 0.55 | – | 1/2 | 1/2 | 100 | 100 |
MMS-32S | 1.6 | 1.0…1.6 | 20.8 | 0.25 | 0.55 | 1.1 | 1/3 | 3/4 | 1 | 100 | 100 |
MMS-32S | 2.5 | 1.6…2.5 | 32.5 | 0.37 | 0.75 | 1.5 | 1/2 | 1½ | 1½ | 100 | 100 |
MMS-32S | 4 | 2.5…4.0 | 52 | 0.75 | 1.5 | 3 | 1 | 2 | 3 | 100 | 100 |
MMS-32S | 6 | 4…6 | 78 | 1.5 | 2.2 | 4 | 1½ | 5 | 5 | 100 | 100 |
MMS-32S | 8 | 5…8 | 104 | 1.5 | 3 | 5.5 | 2 | 5 | 5 | 100 | 100 |
MMS-32S | 10 | 6…10 | 130 | 3 | 4 | 7.5 | 3 | 7½ | 10 | 50 | 38 |
MMS-32S | 13 | 9…13 | 169 | 3 | 5.5 | 11 | 3 | 7½ | 10 | 50 | 38 |
MMS-32S | 17 | 11…17 | 221 | 4 | 7.5 | 11 | 5 | 10 | 15 | 20 | 15 |
MMS-32S | 22 | 14…22 | 286 | 4 | 7.5 | 15 | 7½ | 15 | 20 | 15 | 11 |
MMS-32S | 26 | 18…26 | 338 | 5.5 | 11 | 18.5 | 7½ | 15 | 20 | 15 | 11 |
MMS-32S | 32 | 22…32 | 416 | 7.5 | 15 | 22 | 10 | 20 | 30 | 10 | 5 |
MMS-32S | 40 | 28~40 | 520 | 7.5 | 18.5 | 30 | 15 | 30 | 40 | 10 | 5 |
