Type | Rated operational current Ie[A] |
Themal release Adjustment range[A] |
Magnetic release Operating current[A] |
Switching of 3 phase AC motors, AC-2, AC-3 | 400/415V | ||||||||||||||
3-phase[kW](50/60Hz) | 3-phase[kW](50/60Hz) | ||||||||||||||||||
230V | 400V | 690V | 230V | 400V | 690V | Icu[kA] | Icu[kA] | ||||||||||||

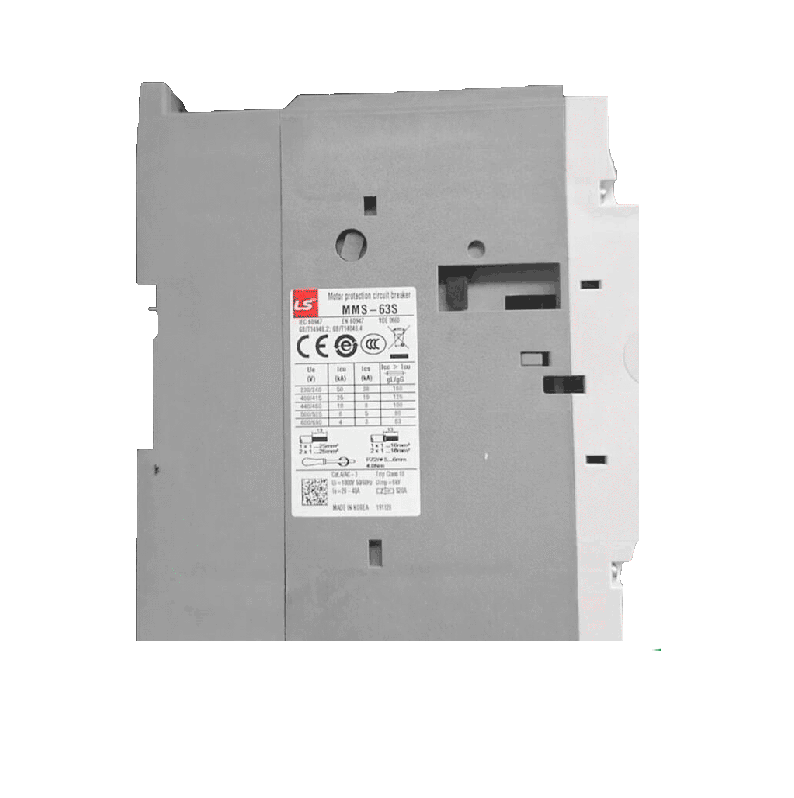

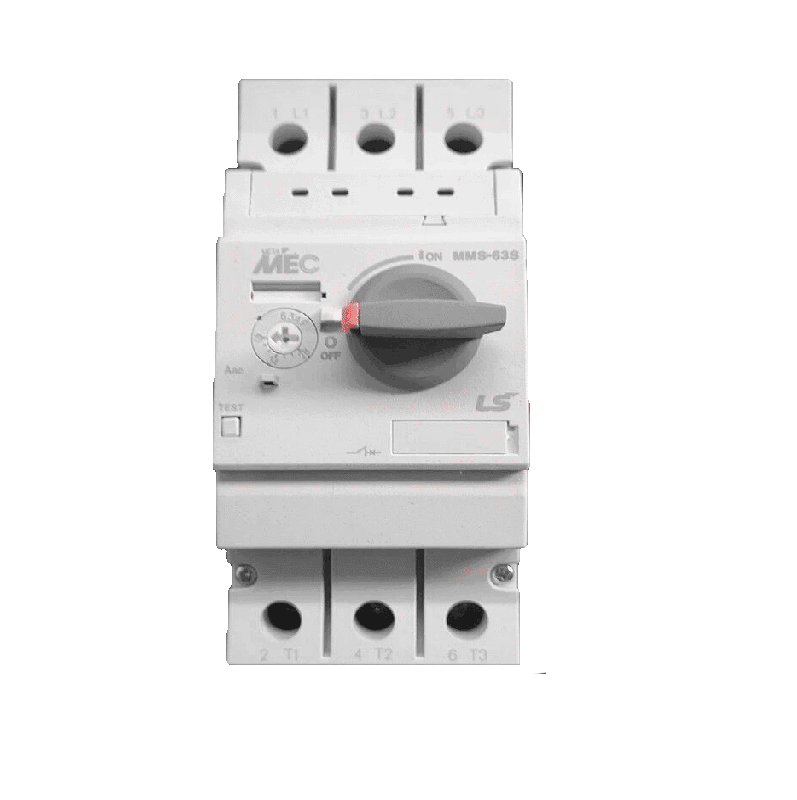

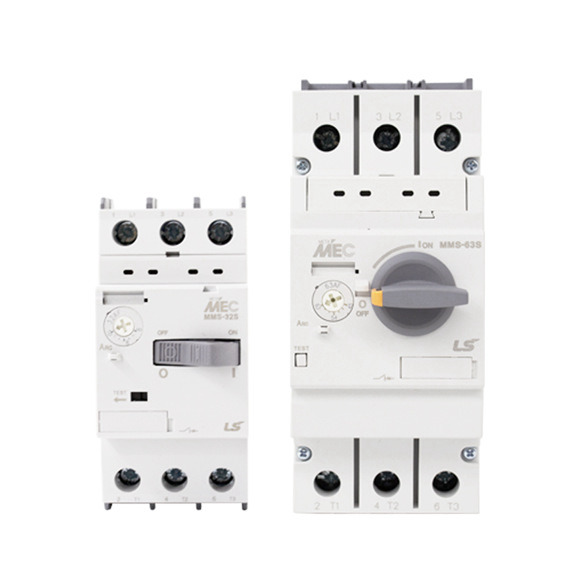

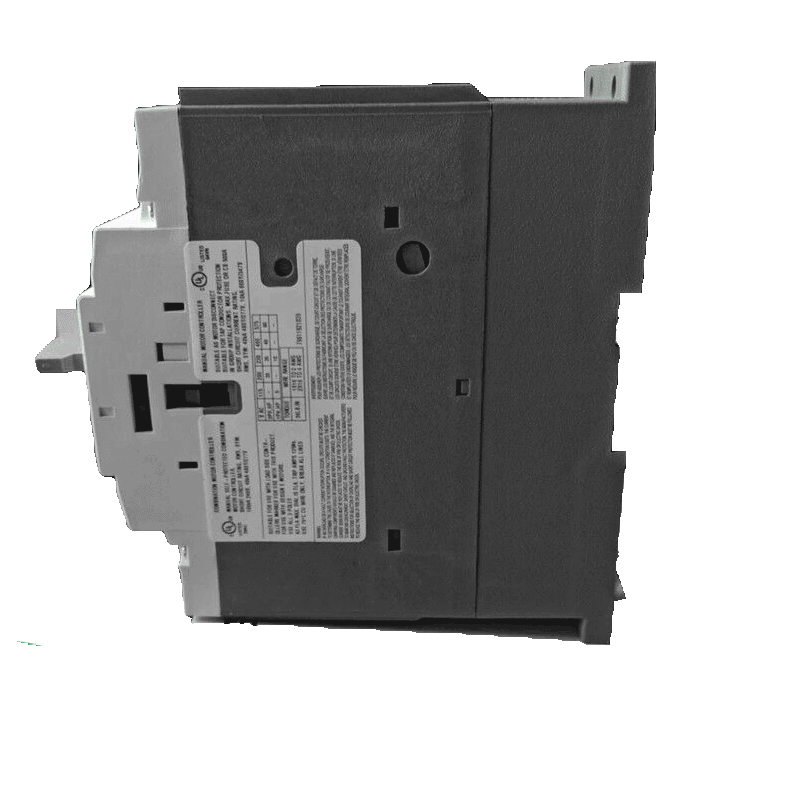

MMS-63S | 10 | 6~10 | 130 | 3 | 4 | 7.5 | 3 | 7½ | 10 | 100 | 100 | ||||||||
MMS-63S | 13 | 9~13 | 169 | 3 | 5.5 | 11 | 3 | 7½ | 10 | 50 | 38 | ||||||||
MMS-63S | 17 | 11~17 | 221 | 4 | 7.5 | 11 | 5 | 10 | 15 | 25 | 19 | ||||||||
MMS-63S | 22 | 14~22 | 286 | 4 | 7.5 | 15 | 7½ | 15 | 20 | 25 | 19 | ||||||||
MMS-63S | 26 | 18~26 | 338 | 5.5 | 11 | 18.5 | 10 | 20 | 25 | 25 | 19 | ||||||||
MMS-63S | 32 | 22~32 | 416 | 7.5 | 15 | 22 | 10 | 25 | 30 | 25 | 19 | ||||||||
MMS-63S | 40 | 28~40 | 520 | 7.5 | 18.5 | 30 | 15 | 30 | 40 | 25 | 19 | ||||||||
MMS-63S | 50 | 34~50 | 650 | 11 | 22 | 45 | 15 | 40 | 50 | 25 | 19 | ||||||||
MMS-63S | 63 | 45~63 | 819 | 15 | 30 | 55 | 20 | 50 | 60 | 25 | 19 | ||||||||
MMS-63S | 65 | 47~65 | 845 | 15 | 30 | 55 | 20 | 50 | 60 | 25 | 19 | ||||||||
MMS-100S | 17 | 11~17 | 221 | 4 | 7.5 | 11 | 5 | 10 | 15 | 50 | 38 | ||||||||
MMS-100S | 22 | 14~22 | 286 | 4 | 7.5 | 15 | 7½ | 15 | 20 | 50 | 38 | ||||||||
MMS-100S | 26 | 18~26 | 338 | 5.5 | 11 | 18.5 | 10 | 20 | 25 | 50 | 38 | ||||||||
MMS-100S | 32 | 22~32 | 416 | 7.5 | 15 | 22 | 10 | 25 | 30 | 50 | 38 | ||||||||
MMS-100S | 40 | 28~40 | 520 | 7.5 | 18.5 | 30 | 15 | 30 | 40 | 50 | 38 | ||||||||
MMS-100S | 50 | 34~50 | 650 | 11 | 22 | 45 | 15 | 40 | 50 | 50 | 38 | ||||||||
MMS-100S | 63 | 45~63 | 819 | 15 | 30 | 55 | 20 | 50 | 60 | 50 | 38 | ||||||||
MMS-100S | 75 | 55~75 | 975 | 22 | 37 | 63 | 25 | 60 | 75 | 50 | 38 | ||||||||
MMS-100S | 90 | 70~90 | 1170 | 30 | 45 | 75 | 30 | 75 | 100 | 50 | 38 | ||||||||
MMS-100S | 100 | 80~100 | 1300 | 30 | 45 | 90 | 40 | 75 | 100 | 50 | 38 |
