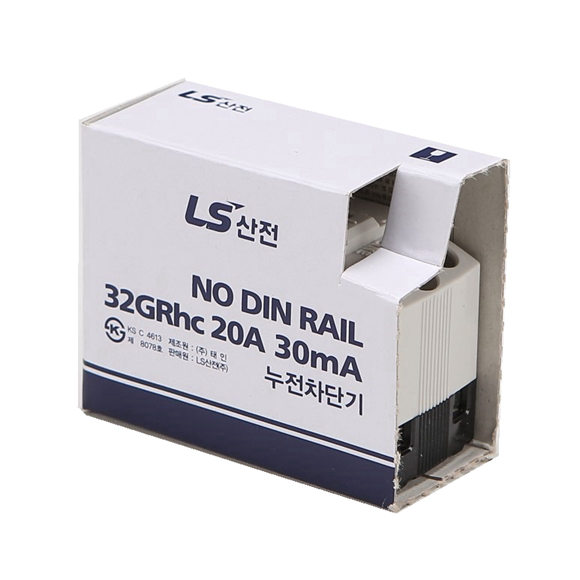

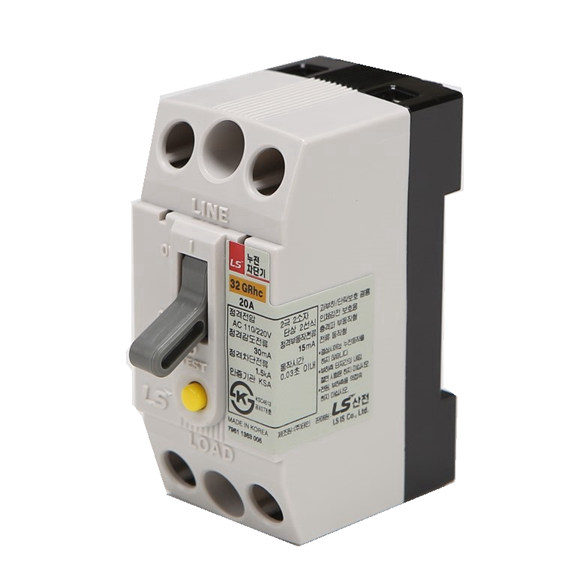

Type | 32GRhc | 32GRhd |
Protection | Ground fault and overcurrent | |
Rated current, In | 15, 20, 30A | |
Rated residual current | ||
Operating, I△n | 15, 30mA
(non-adjustable) |
|
Non-operating, I△no | 0.5I△n | |
Number of poles | 2pole | |
Rated voltage | 110/220VAC | |
Residual current off-time | ≤ 0.03 sec. | |
Standard | KS | |
Approval | KERI, CE | |
Type of trip | ||
Ground fault | Electronic | |
Overcurrent | Bimetallic | |
Breaking capacity | 1.5kA | 2.5kA |
Electrical endurance | 6000 operations | |
Mount | On 35mm DIN rail | |
Width | 35mm | |
Terminal | Screw clamp type
(cable up to 25mm2) |
