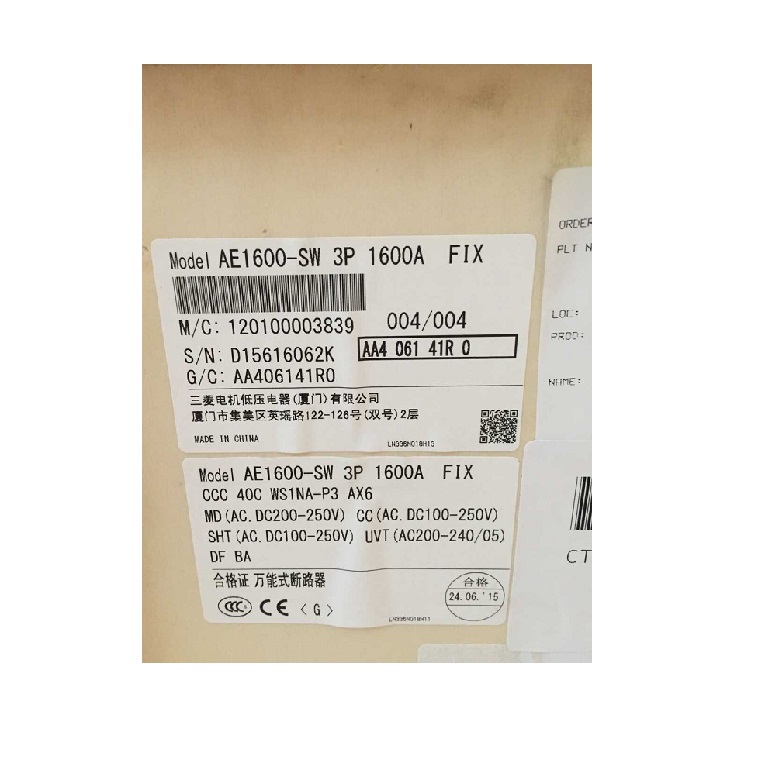

Mitsubishi Air Circuit Breakers (ACB) AE630-SW AE1000-SW AE1250-SW

Mitsubishi Air Circuit Breakers (ACB) AE630-SW～AE2000-SWA
We are First Class mitsubishi circuit breakers distributor and mitsubishi circuit breaker supplier in China.
We can Supply mitsubishi circuit breaker parts,such as mitsubishi air circuit breaker,mitsubishi electric circuit breaker,mitsubishi moulded case circuit breaker,mitsubishi dc circuit breaker,mitsubishi earth leakage circuit breaker,mitsubishi electric vacuum circuit breaker,mitsubishi electric high voltage circuit breaker,mitsubishi gas circuit breaker on,
100% Original and new,In stock by Mitsubishi Electric.
Delivery time: Ready in stock and 1 days for ship out
MOQ: 1pcs

Qty:

Add to Enquiry Cart

Specification

Download A Munual

Type	AE630-SW	AE1000-SW		AE1250-SW	AE1600-SW
Frame size (A)	630	1000		1250	1600
Rated insulation voltage (Ui) (50/60Hz)(AC.V)	1000
Rated operational voltage (Ue) (50/60Hz)(AC.V)	690
Rated impulse withstand voltage (Uimp) (kV)	12
Utilization category	B
Pollution degree	3
EMC environment condition (environment A or B) (Note 15)	A
Number of poles	3, 4
Rated current In (CT rating) (A)	630 (Note 5)	1000		1250	1600
Rated current of neutral pole (A)	630	1000		1250	1600
Maximum total breaking time (ms)	40 (Note 6)
Maximum closing time (ms)	80
Outline dimension (mm) H×W×D Fixed type	3-pole		410×340×290
Outline dimension (mm) H×W×D Fixed type	4-pole		410×425×290
Outline dimension (mm) H×W×D Drawout type	3-pole		430×300×375
