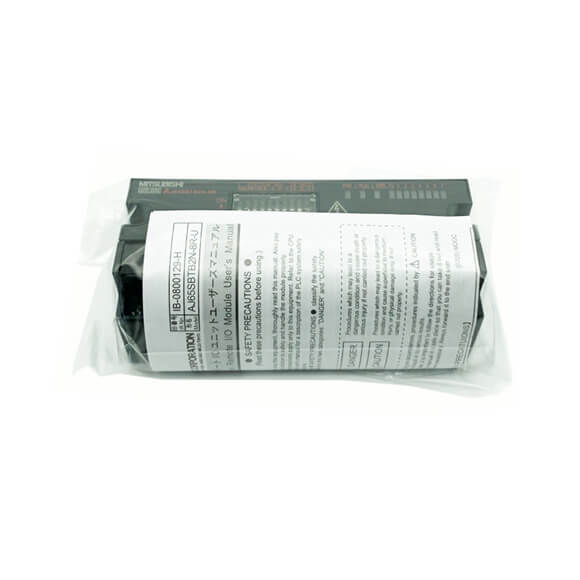

Mitsubishi CC Link Module AJ65SBTB2N-8A AJ65SBTB2N-16A

Series#: Mitsubishi PLC

Product Details

  • Mitsubishi CC Link Module AJ65SBTB2N-8A AJ65SBTB2N-16A
  • Mitsubishi PLC Controller Module PLC Mitsubishi CC Link Module AJ65 Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Specificatio AJ65SBTB2-8A AC input modul
Number of input points 8 points
Insulation method Photocoupler
Rated input voltage 100 to 120 V AC 50/60 Hz
Rated input current Approx. 7 mA (100 V AC 60 Hz)
Operating voltage range 85 to 132 V AC (50/60 Hz ±5 %)
Max. simultaneous ON

input points

100 % simultaneous ON (at 100 V AC)

60 % simultaneous ON (at 132 V AC)

Inrush current Max. 200 mA within 1 ms (at 132 V AC)
ON voltage/ON current 80 V AC or higher/5 mA or higher
OFF voltage/OFF current 30 V AC or lower/1 mA or lower
Input resistance Approx. 15 k W (60 Hz), Approx. 18 k W (50 Hz)
Number of stations occupied 1 station 32 points assignment (use 8 points)
I/O module

power supply

Voltage20.4 to 26.4 V DC(ripple ratio: within 5 %)
Withstand voltage 1780 V AC between all AC external terminals and ground, rms/ 3 cycles (2000 m above sea level)

500 V AC for 1 minutes between all DC external terminals and ground

Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance

tester between all AC external terminals and ground

10 M W or higher, measured with a 500 V DC insulation resistance tester between all DC external terminals and ground

Weight (kg)(lb.) 0.2 (0.44)
External wiring system 7-point 2-piece terminal block (transmission circuit, module power supply terminal), Direct-type 18-point terminal block (I/O power

supply area) (M3 screw)

Applicable solderless terminal • RAV1.25-3.5 (in conformance with JIS-C2805) [Applicable wire size: 0.3 to1.25 mm2]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3SL (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL INDUSTRIES Co., Ltd.)

[Applicable wire size: 1.25 to 2.0 mm2]



Number of input points AJ65SBTB2N-16A 100 V AC inputmodule 16 points
Insulation method Photocoupler
Rated input voltage 100 to 120 V AC 50/60 Hz
Rated input current Approx. 7 mA (100 V AC 60 Hz)
Operating voltage range 85 to 132 V AC (50/60 Hz ±5 %)
Max. simultaneous input

points

100 % simultaneous ON (at 100 V AC)

60 % simultaneous ON (at 132 V AC)

Inrush current Max. 200 mA within 1 ms (at 132 V AC)
ON voltage/ON current 80 V AC or higher/5 mA or higher
OFF voltage/OFF current 30 V AC or lower/1 mA or lower
Input resistance Approx. 15 k W (60 Hz), Approx. 18 k W (50 Hz)
Common method 16 points/1 common (terminal block 2-wire type)
Number of stations

occupied

1 station 32 points assignment (use 16 points)
Noise durability Simulator noise 1500 Vp-p, noise width 1 ms, noise carrier

frequency 25 to 60 Hz (noise simulator condition) Fast transient/noise burst IEC61000-4-4 : 1 kV

Withstand voltage 1780 V AC between all AC external terminals and ground,

rms/ 3 cycles (2000 m above sea level)

500 V AC for 1 minutes between all DC external terminals and ground

Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance

tester between all AC external terminals and ground

10 M W or higher, measured with a 500 V DC insulation resistance tester between all DC external terminals and ground

Weight (kg)(lb.) 0.25 (0.55)
External wiring system 7-point 2-piece terminal block (transmission circuit, module power

supply terminal), Direct-type 34-point terminal block (I/O power supply area) (M3 screw)

Applicable solderless

terminal

• RAV1.25-3.5 (in conformance with J2IS-C2805)

[Applicable wire size: 0.3 to1.25 mm ]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3SL (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL IND2USTRIES Co., Ltd.)

[Applicable wire size: 1.25 to 2.0 mm ]
