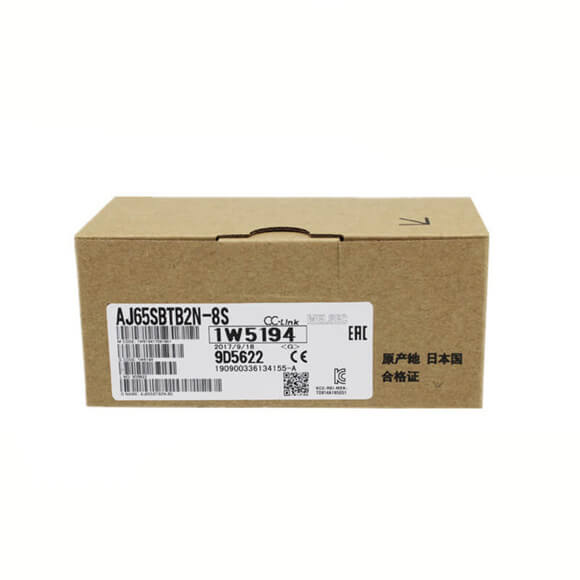

Mitsubishi CC Link PLC Module AJ65SBTB2N-8S AJ65SBTB2N-16S

Series#: Mitsubishi PLC

Product Details

  • Mitsubishi CC Link PLC Module AJ65SBTB2N-8S AJ65SBTB2N-16S
  • Mitsubishi PLC Controller Module PLC Mitsubishi CC Link Module AJ65 Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Part Number AJ65SBTB2N-8S
Number of output points 8 points
Insulation method Photocoupler
Rated load voltage× 100 to 240 V AC 50/60 Hz ± 5 %
Max. load voltage 264 V AC
Max. load current 0.6 A/point, 2.4 A/1 common
Min. load voltage×current 50 V AC 100 mA, 100 V AC 10 mA, 240 V AC 10 mA
Max. inrush current 25 A 10 ms or lower
Leakage current at OFF 1.5 mA rms or lower (100 V AC rms 60 Hz),

3 mA rms or lower (200 V AC rms 60 Hz)

Max. voltage drop at ON 1.5 V rms or lower (at 0.6 A)
Surge suppression C·R absorver (0.01 mF + 47 W)
Common method 8 points/1 common (terminal block 2-wire type)
Number of stations

occupied

1 station 32 points assignment (use 8 points)
Noise durability Simulator noise 1500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz (noise simulator condition)

Fast transient/noise burst IEC61000-4-4 : 1 kV

Withstand voltage 2830 V AC between all AC external terminals and ground, rms/ 3 cycles (2000 m above sea level)

500 V AC for 1 minutes between all DC external terminals and ground

Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance

tester between all AC external terminals and ground

10 M W or higher, measured with a 500 V DC insulation resistance tester between all DC external terminals and ground

Weight (kg) (lb.) 0.25 (0.55)
External connection method 7-point 2-piece terminal block (transmission circuit, module power supply terminal), Direct-type 18-point terminal block (I/O power

supply area) (M3 screw)

Applicable solderless terminal • RAV1.25-3.5 (in conformance with JIS C 2805) [Applicable wire size: 0.3 to1.25 mm2]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3 (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL INDUSTRIES Co., Ltd.)

[Applicable wire size: 1.25 to 2 mm2]



Part Number AJ65SBTB2N-16S
Number of output points 16 points
Insulation method Photocoupler
Rated load voltage 100 to 240 V AC 50/60 Hz ± 5 %
Max. load voltage 264 V AC
Max. load current 0.6 A/point, 4.8A/1 common
Min. load voltage×current 50 V AC 100 mA, 100 V AC 10 mA, 240 V AC 10 mA
Max. inrush current 25 A 10 ms or lower
Leakage current at OFF 1.5 mA rms or lower (100 V AC rms 60 Hz),

3 mA rms or lower (200 V AC rms 60 Hz)

Max. voltage drop at ON 1.5 V rms or lower (at 0.6 A)
Surge suppression C·R absorver (0.01 mF + 47 W)
Common method 16 points/1 common (terminal block 2-wire type)
Number of stations occupied 1 station 32 points assignment (use 16 points)
Noise durability Simulator noise 1500 Vp-p, noise width 1 ms, noise carrier

frequency 25 to 60 Hz (noise simulator condition) Fast transient/noise burst IEC61000-4-4 : 1 kV

Withstand voltage 2830 V AC between all AC external terminals and ground,

rms/ 3 cycles (2000 m above sea level)

500 V AC for 1 minutes between all DC external terminals and ground

Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance

tester between all AC external terminals and ground

10 M W or higher, measured with a 500 V DC insulation resistance tester between all DC external terminals and ground

Weight (kg) (lb.) 0.35 (0.77)
External connection method 7-point 2-piece terminal block (transmission circuit, module power

supply terminal), Direct-type 34-point terminal block (I/O power supply area) (M3 screw)

Applicable solderless

terminal

• RAV1.25-3.5 (in conformance with J2IS C 2805)

[Applicable wire size: 0.3 to1.25 mm ]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3 (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL IN2DUSTRIES Co., Ltd.)

[Applicable wire size: 1.25 to 2 mm ]
