Mitsubishi CC Link PLC Module AJ65SBTB32-8DT AJ65SBTB32-16DT

Series#: Mitsubishi PLC

Product Details

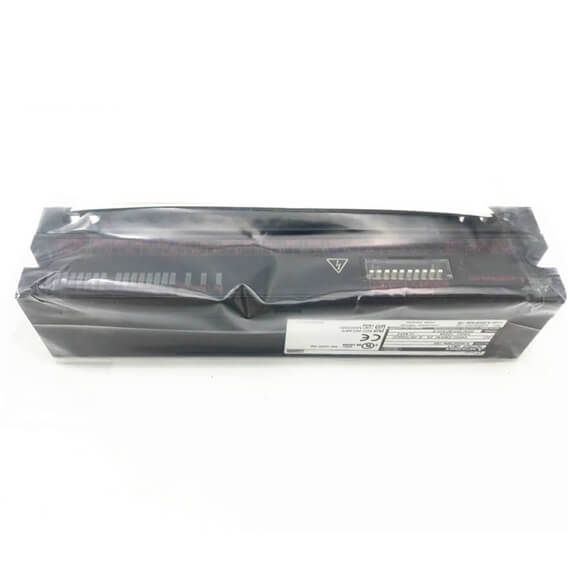

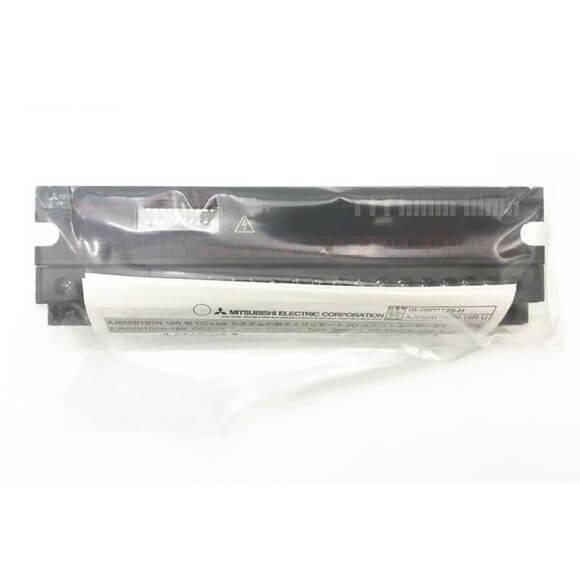

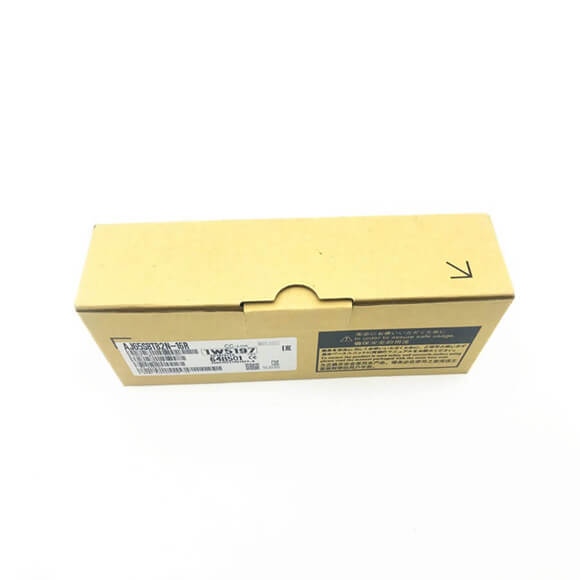

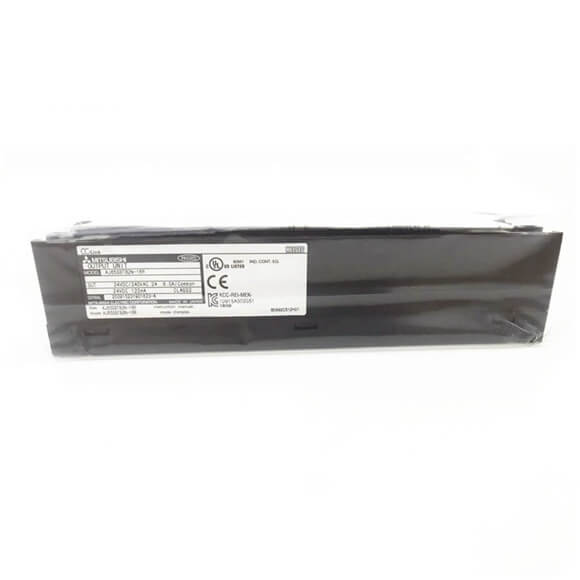

  • Mitsubishi CC Link PLC Module AJ65SBTB32-8DT AJ65SBTB32-16DT
  • Mitsubishi PLC Controller Module PLC Mitsubishi CC Link Module AJ65 Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Part Number AJ65SBTB32-8DT
Number of input points 4 points Number of output points 4 points
Insulation method Photocoupler Insulation method Photocoupler
Rated input voltage 24 V DC Rated load voltage 24 V DC
Rated input current Approx. 7 mA Operating load voltage range 19.2 to 26.4 V DC(ripple ratio: within 5 %)
Operating voltage range 19.2 to 26.4 V DC

(ripple ratio: within 5 %)

Max. load current 0.5 A/point

1.2 A/common

Max. simultaneous input

points

100 % Max. inrush current 1.0 A 10 ms or lower
ON voltage/ON current 14 V or higher/3.5 mA or higher Leakage current at OFF 0.25 mA or lower
OFF voltage/OFF current 6 V or lower/1.7 mA or lower Voltage drop at ON 0.3 V or lower (TYP)0.5 A

0.6 V or lower (MAX)0.5 A

Input resistance A pprox. 3.3 k W Output form Sink type
Input form Sink type Surge suppression Zener diode
Common wiring method 8 points/1 common (3-wire type terminal block: input, 2-wire type terminal block: output)
Number of stations occupied 1 station 32 points assignment (use 8 points)
Noise durability DC type noise voltage 500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz(noise simulator

condition)

Withstand voltage 500 V AC for 1 minute between all DC external terminals and ground
Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance tester
Weight (kg) (lb.) 0.18 (0.4)
External wiring system 7-point 2-piece terminal block (transmission circuit, module power supply terminal),

Direct-type 18-point terminal block (I/O power supply area) (M3 screw)

Applicable solderless terminal • RAV1.25-3.5(in conformance with JIS-C2805) [Applicable wire size: 0.3 to1.25 mm2]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3SL (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL INDUSTRIES Co., Ltd.) [Applicable wire size: 1.25 to 2 mm2]



Part Number AJ65SBTB32-16DT
Number of input points 8 points Number of output points 8 points
Insulation method Photocoupler Insulation method Photocoupler
Rated input voltage 24 V DC Rated load voltage 24 V DC
Rated input current Approx. 7 mA Operating load voltage range 19.2 to 26.4 V DC(ripple ratio: within 5 %)
Operating voltage range 19.2 to 26.4 V DC

(ripple ratio: within 5 %)

Max. load current 0.5 A/point

2.4 A/common

Max. simultaneous input

points

100 % Max. inrush current 1.0 A 10 ms or lower
ON voltage/ON current 14 V or higher/3.5 mA or higher Leakage current at OFF 0.25 mA or lower
OFF voltage/OFF current 6 V or lower/1.7 mA or lower Voltage drop at ON 0.3 V or lower (TYP)0.5 A

0.6 V or lower (MAX)0.5 A

Input resistance A pprox. 3.3 k W Output form Sink type
Input form Sink type Surge suppression Zener diode
Common wiring method 16 points/1 common (3-wire type terminal block: input, 2-wire type terminal block: output)
Number of stations occupied 1 station 32 points assignment (use 16 points)
Noise durability DC type noise voltage 500 Vp-p, noise width 1 ms, noise carrier frequency 25 to 60 Hz(noise simulator

condition)

Withstand voltage 500 V AC for 1 minute between all DC external terminals and ground
Insulation resistance 10 M W or higher, measured with a 500 V DC insulation resistance tester between all DC external

terminals and ground

Weight (kg) (lb.) 0.25 (0.55)
External wiring system 7-point 2-piece terminal block (transmission circuit, module power supply terminal),

Direct-type 34-point terminal block (I/O power supply area) (M3 screw)

Applicable solderless terminal • RAV1.25-3.5(in conformance with JIS-C2805) [Applicable wire size: 0.3 to1.25 mm2]

• V2-MS3 (Japan Solderless Terminal Mfg. Co., Ltd.), RAP2-3S RAP2-3SL (Japan Terminal Co., Ltd.)

• 2-3N, 2-3S (NICHIFU TERMINAL INDUSTRIES Co., Ltd.) [Applicable wire size: 1.25 to 2 mm2]
