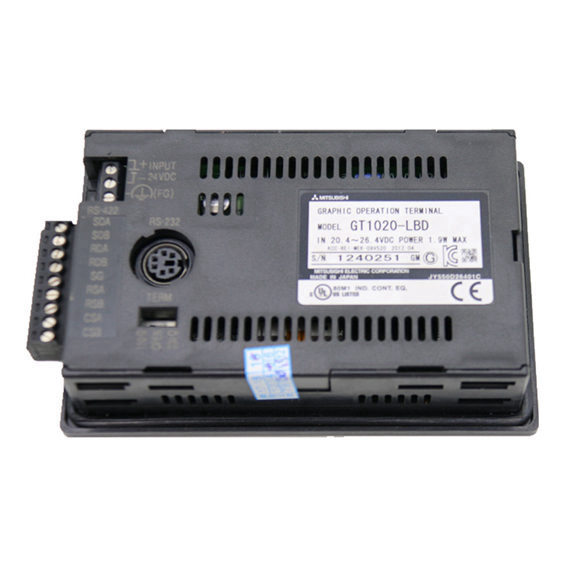

Mitsubishi HMI Touch screen GT1020-LBDW2 GT1020-LWDW2

Series#: Mitsubishi HMI

Product Details

  • 3.7″ [160 64 dots], STN monochrome (black and white) liquid crystal, 3 colors (white/red/pink) LED backlight, 24VDC,
  • PLC connection interface: RS-232

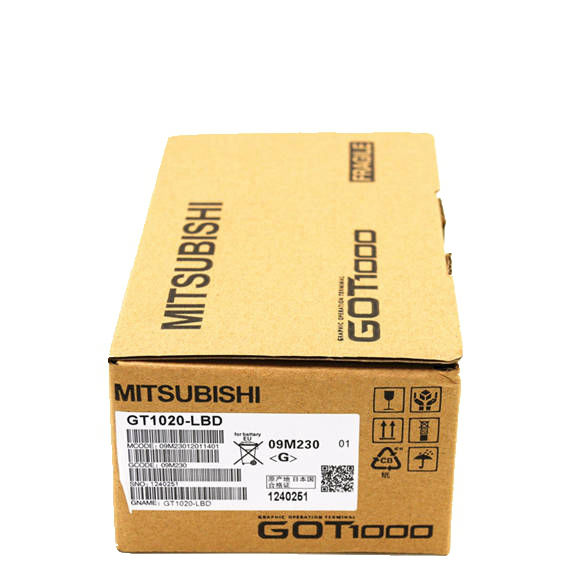

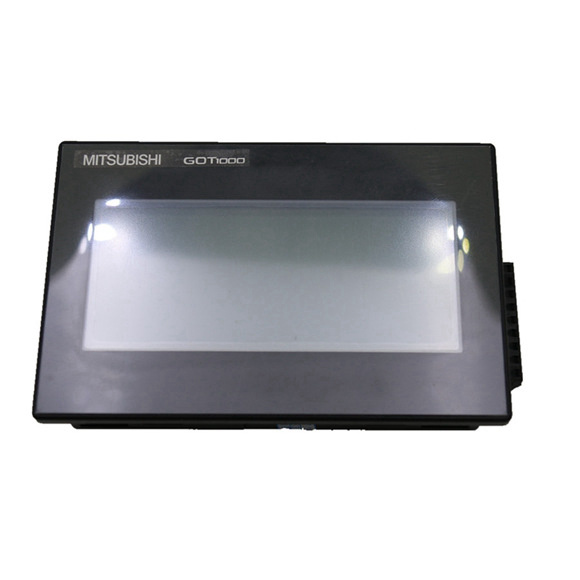

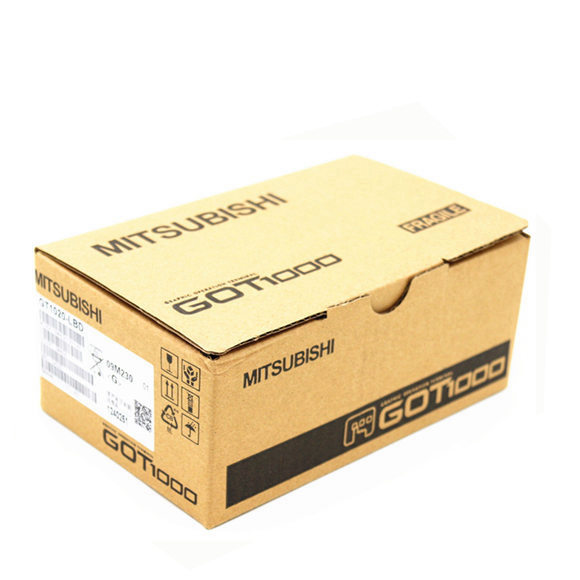

  • 3.7″ Mitsubishi HMI Touch screen GT1020-LBDW2/LWDW2
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item Specifications
Mitsubishi HMI Touch screen GT1020 GT1020-LBDW/LWDW GT1020-LBDW2/LWDW2 GT1020-LBLW/LWLW
Display section*1 STN monochrome (white/black) liquid crystal
Screen size 3.7″
Resolution 160 64 dots (Horizontal format)
Display size W86.4(3.4) H34.5(1.35) [mm](inch) (Horizontal format)
Display character 16-dot standard font: 20 characters 4 lines (Horizontal format)
display color Monochrome (white/black)
Display angle Left/Right: 30 degrees, Top: 20 degrees, Bottom: 30 degrees (Horizontal format)
Contrast adjustment 16-level adjustment
Intensity of LCD only 300 [cd/m2] (in white)
Life Approx. 50,000h. (Time for display intensity to become 1/5 at operating ambient temperature of 25)
Backlight LED with 3 available colors (white, red, pink) (no replacement required),Backlight status (colors, ON/BLINK/OFF) control, Adjustable screensaver activation time Setting the system information*2 enables PLC to control the backlight status.
Touch panel

Number of touch keys

Maximum 50 keys/screen (Analog resistive film touch panel)
Key size Minimum 2 2 dots (per key)


Simultaneous pressing of two (or more) areas (2-point press)

Not supported(Simultaneous pressing of two or more areas on the screen may activate the switch between those areas.)
Life 1 million times or more (operating force 0.98N max.)
Memory

C drive*3

Flash memory (Internal), for storing project data (512 Kbytes or less), OS, Alarm history, Recipe data and time action setting value
Life (Number of write times) 100,000 times
PC communication RS-232 1chTransmission speed : 115,200/57,600/38,400/19,200/9,600/4,800bps Connector shape : MINI DIN 6 pins (Female)

Application : PC communication (Project data upload/download, OS installation, transparent function)

Buzzer output (a buzzer that sounds when touch keys are pressed) Single tone (LONG/SHORT/OFF adjustable)
Environmental protective structure*5 Equivalent to IP67 (JEM1030) (front section) (Horizontal format)
External dimensions W113(4.44) H74(2.91) D27(1.06) [mm](inch) (Horizontal format)
Panel cutting dimensions W105(4.13) H66(2.59) [mm](inch) (Horizontal format)
Weight 0.2kg (Excluding mounting fixtures) 0.18kg (Excluding mounting fixtures)
Compatible software package GT Designer2 Version2.58L or later/GT Designer3 Version1.01B or later
