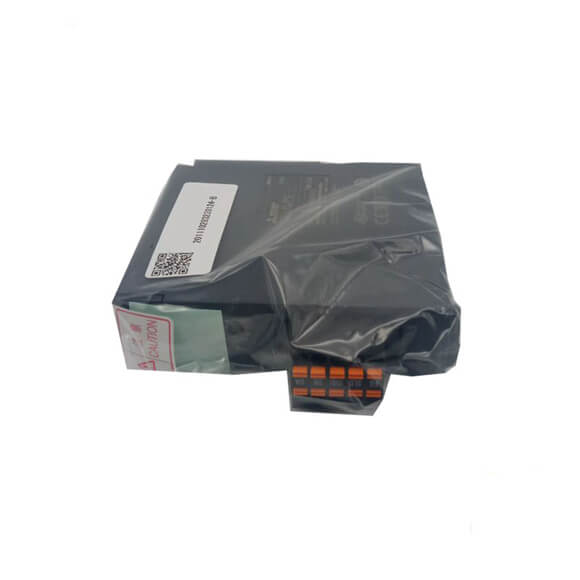

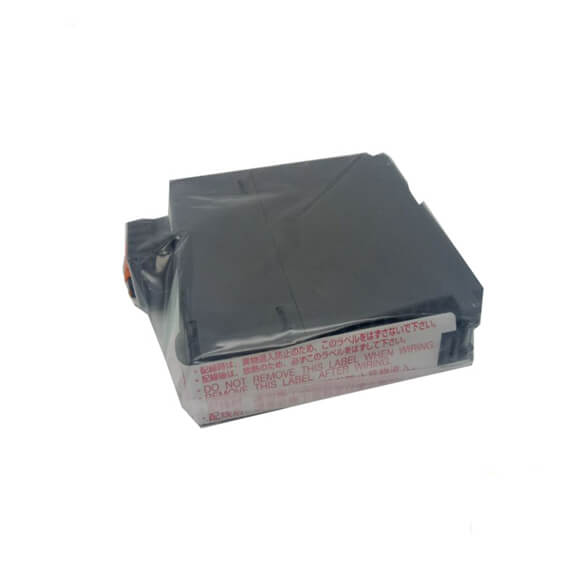

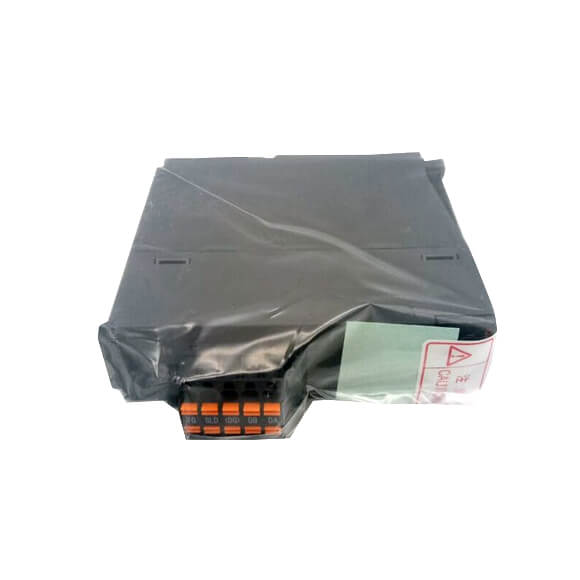

Mitsubishi MELSECNET/H network module QJ71NT11B

Series#: Mitsubishi PLC CPU Module Q Series

Product Details

  • Mitsubishi MELSECNET/H network module QJ71NT11B
  • Mitsubishi PLC Controller Module PLC Mitsubishi MELSEC-Q Series
  • We are First Class mitsubishi plc dealer and mitsubishi plc distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor,Mitsubishi HMI,Mitsubishi VFD and So on,
  • 100% Original and new,In stock by Mitsubishi PLC
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Item Mitsubishi MELSECNET/H network module Specification
Network configurations Optical loop system Coaxial bus system Twisted bus system
Model QJ71LP21(S)-25 QJ72LP25-25 QJ71LP21G QJ72LP25G QJ71BR11 QJ72BR15 QJ71NT11B
Cable Fiber optic (SI) Fiber optic (GI) Coaxial (3C-2V) Coaxial (5C-2V) Twisted pair CC-Link Ver. 1.10- compatible cable
PLC to PLC network Maximum number of link points per network 16384 points (8192 points in the MELSECNET/10 mode) 16384 points
LW 16384 points (8192 points in the MELSECNET/10 mode) 16384 points
LX/LY 8192 points
Maximum number of link points per station •MELSECNET/H mode{(LY + LB) /8 + (2 x LW)} ≤ 2000 bytes

•MELSECNET/H extended mode

{(LY + LB) /8 + (2 x LW)} ≤ 35840 bytes

Number of stations per network Up to 64 stations(1 control station, 63 normal stations) Up to 32 stations (1 control station, 31 normal stations)
Communication speed 25 Mbps/10 Mbps 10 Mbps 156 kbps/312 kbps/625 kbps/1.25 Mbps/2.5 Mbps/5 Mbps/10 Mbps


Overall distance



30 km



300 m



500 m

1200 m/156 kbps,

600 m/312 kbps,

400 m/625 kbps,

200 m/1.25 Mbps

1200 m/156 kbps,900 m/312 kbps,

600 m/625 kbps,

400 m/1.25 Mbps,

200 m/2.5 Mbps,

150 m/5 Mbps,

100 m/10 Mbps

Distance between stations Up to 1 km 2 km
