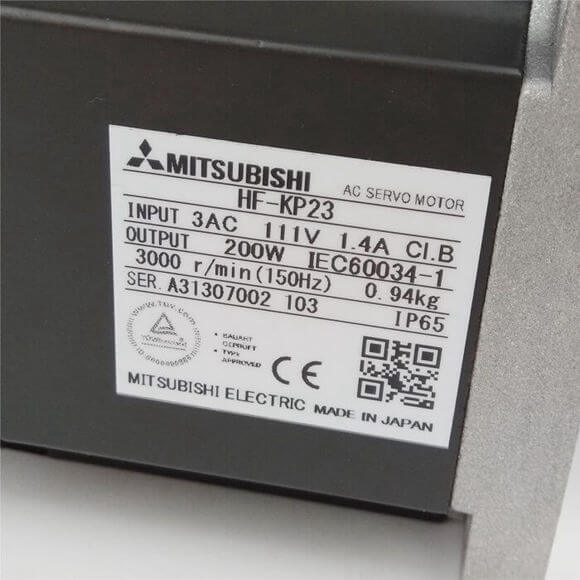

Mitsubishi MELSERVO-J3 Servomotor With Break 200W HF-KP23B

Series#: Mitsubishi Servomotor

Product Details

  • Mitsubishi MELSERVO-J3 Servomotor With Break 200W HF-KP23B
  • MELSERVO-J3 SERIES  50W to 55KW
  • We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • Supply Mitsubishi Servo Amplifier,Mitsubishi Direct Drive Motor,Mitsubishi Linear Servo Motor:4 motor series (LM-H2/LM-U2/LM-F/LM-K2) ,Mitsubishi Rotary Servo Motor 50W to 55kW.HF-KP/MP/SP/JP, HC-LP/RP/UP, HA-LP Series.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi MELSERVO-J3 Servomotor HF-KP series (Low inertia, small capacity)
Mitsubishi Servo motor HF-KP(MR-J3) 053(B) 13(B) 23(B) 43(B) 73(B)
Compatible servo amplifier model MR-J3- 10A(1)/B(1)(-RJ006)/T(1) 20A(1)/B(1)(-RJ006)/T(1) 40A(1)/B(1)(-RJ006)/T(1) 70A/B(-RJ006)/T
Power supply capacity (Note 1) (kVA) 0.3 0.3 0.5 0.9 1.3


Rated output (W)

50 100 200 400 750
Rated torque (Note 9) (N·m [oz·in]) 0.16 (22.7) 0.32 (45.3) 0.64 (90.6) 1.3 (184) 2.4 (340)
Maximum torque (when increased) (Note 8) (N·m [oz·in]) 0.56 (79.3) 1.11 (157) 2.23 (316) 4.46 (632) 8.36 (1180)
Maximum torque (N·m [oz·in]) 0.48 (68.0) 0.95 (135) 1.9 (269) 3.8 (538) 7.2 (1020)
Rated speed (r/min) 3000
Maximum speed (r/min) 6000
Permissible instantaneous speed (r/min) 6900
Power rate at continuous rated torque (kW/s) 4.87 11.5 16.9 38.6 39.9
Rated current (A) 0.9 0.8 1.4 2.7 5.2
Maximum current (when increased) (Note 8) (A) 3.1 2.8 4.9 9.5 18.2
Maximum current (A) 2.7 2.4 4.2 8.1 15.6
Regenerative braking frequency (times/min) (Note 2) (Note 3) (Note 3) 448 249 140


Standard

0.052 (0.284) 0.088 (0.481) 0.24 (1.31) 0.42 (2.30) 1.43 (7.82)
With electromagnetic brake 0.054 (0.295) 0.090 (0.492) 0.31 (1.69) 0.50 (2.73) 1.63 (8.91)
Recommended load to motor inertia moment ratio (Note 4) 15 times maximum 24 times maximum 22 times maximum 15 times maximum
Speed/position detector 18-bit encoder (resolution: 262144 p/rev)
Attachments — (Motors with an oil seal are available (HF-KPMJ))
Insulation class Class B
Structure Totally enclosed non ventilated (IP rating: IP65) (Note 5)
Mass (kg [lb])

Standard

0.35 (0.78) 0.56 (1.3) 0.94 (2.1) 1.5 (3.3) 2.9 (6.4)
With electromagnetic brake 0.65 (1.5) 0.86 (1.9) 1.6 (3.6) 2.1 (4.7) 3.9 (8.6)
