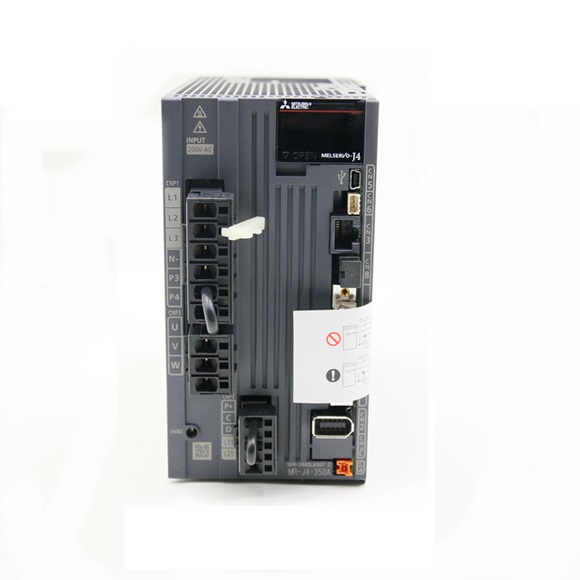

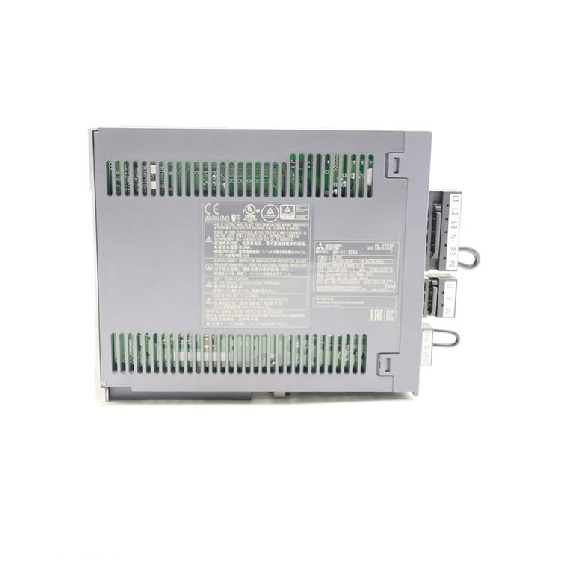

Mitsubishi MELSERVO-J4 Series Servo Amplifier 3.5kW MR-J4-350A

Series#: Mitsubishi Servo Drive

Product Details

  • Mitsubishi MELSERVO-J4 Series Servo Amplifier 3.5kW MR-J4-350A
  • We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi MELSERVO-J4 Series Servo Amplifier MR-J4-_(-RJ) 10A 20A 40A 60A 70A 100A 200A 350A 500A 700A 11KA 15KA 22KA
Rated voltage 3-phase 170 V AC
Rated current [A] 1.1 1.5 2.8 3.2 5.8 6.0 11.0 17.0 28.0 37.0 68.0 87.0 126.0


Voltage/ Frequency

At ACinput

3-phase or 1-phase200 V AC to 240 V AC, 50 Hz/60 Hz 3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60Hz (Note 14) 3-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
At DCinput(Note 17) 283 V DC to 340 V DC
Rated current [A] (Note 11) 0.9 1.5 2.6 3.2(Note 5) 3.8 5.0 10.5 16.0 21.7 28.9 46.0 64.0 95.0
Permissible voltage fluctuation

At ACinput

3-phase or 1-phase 170 V AC to 264 V AC 3-phase or 1-phase 170 V AC to 264 V AC (Note 14) 3-phase 170 V AC to 264 V AC
At DCinput(Note 17) 241 V DC to 374 V DC
Permissible frequency fluctuation Within ±5%
Power supply [kVA] capacity Refer to section 10.2.
Inrush current [A] Refer to section 10.5.
Interface power supply Voltage 24 V DC ± 10%
Current capacity [A] 0.5 (including the CN8 connector signals) (Note 1)
Control method Sine-wave PWM control, current control method
Dynamic brake Built-in External option (Note 8, 12)
Fully closed loop control Compatible (Note 9)
Load-side encoder interface (Note 10) Mitsubishi Electric high-speed serial communication
Communication function



USB: Connection to a personal computer or others (MR Configurator2-compatible)
RS-422/RS-485: 1: n communication (up to 32 axes) (Note 7, 13)
Encoder output pulses Compatible (A/B/Z-phase pulse)
Analog monitor Two channels
