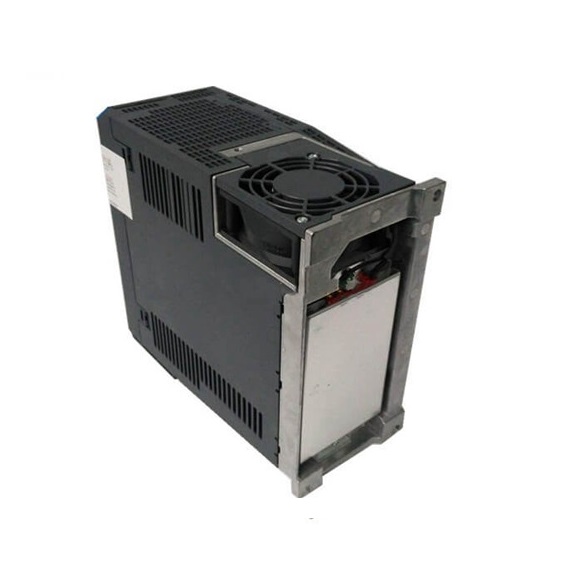

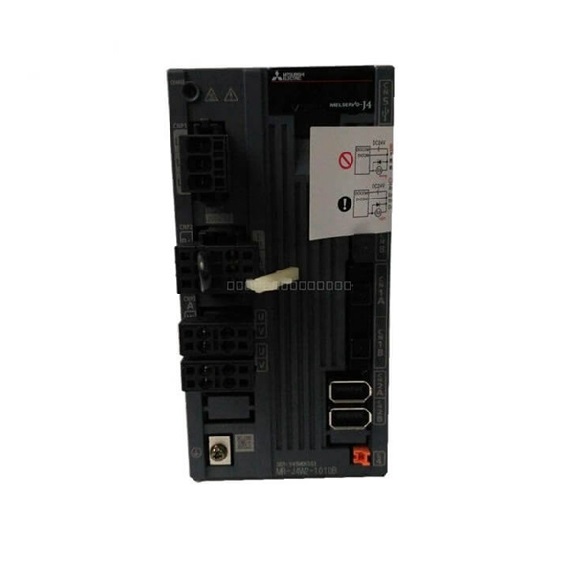

Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 1KW MR-J4W2-1010B

Series#: Mitsubishi Servo Drive

Product Details

  • Mitsubishi MELSERVO-J4 Servo Amplifier With Drive 1KW MR-J4W2-1010B
  • We are First Class mitsubishi servo drive dealer and mitsubishi servo drive distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi MELSERVO-J4 Servo Amplifier With Drive MR-J4W2- 22B 44B 77B 1010B
Output Rated voltage 3-phase 170 V AC
Rated current (each axis) [A] 1.5 2.8 5.8 6.0
Main circuit power supply input

Voltage/Frequency

3-phase or 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz 3-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Rated current (Note 11) [A] 2.9 5.2 7.5 9.8
Permissible voltage fluctuation 3-phase or 1-phase 170 V AC to 264 V AC 3-phase 170 V AC to 264 V AC
Permissible frequency fluctuation Within ±5%
Power supply capacity [kVA] Refer to section 10.2.
Inrush current [A] Refer to section 10.5.
Control circuit power supply input Voltage/Frequency 1-phase 200 V AC to 240 V AC, 50 Hz/60 Hz
Rated current [A] 0.4
Permissible voltage fluctuation 1-phase 170 V AC to 264 V AC
Permissible frequency fluctuation Within ±5%
Power consumption

[W]

55
Inrush current [A] Refer to section 10.5.
Interface power supply Voltage 24 V DC ± 10%
Power supply capacity 0.35 A (Note 1)
Control method Sine-wave PWM control, current control method
Capacitor regeneration

Reusable regenerative energy (Note 2) [J]

17 21 44
Moment of inertia J equivalent to the permissible charging amount (Note 3)

[× 10-4 kg • m2]





3.45





4.26





8.92



Mass equivalent to the permissible charging amount

(Note 4) [kg]

LM-H3

3.8 4.7 9.8
LM-K2 LM-U2

8.5





10.5





22.0

Built-in regenerative resistance [W] 20 100
Dynamic brake Built-in
SSCNET III/H command communication cycle (Note 9) 0.222 ms, 0.444 ms, 0.888 ms
Communication function USB: Connect a personal computer (MR Configurator2 compatible)
Encoder output pulse Compatible (A/B-phase pulse)
Analog monitor None
Fully closed loop control Compatible (Note 8)
Scale measurement function Compatible (Note 10)
Load-side encoder interface Mitsubishi Electric high-speed serial communication (Note 6)


Protective functions

Overcurrent shut-off, regenerative overvoltage shut-off, overload shut-off (electronic thermal), servo motor overheat protection, encoder error protection, regenerative error protection, undervoltage protection, instantaneous power failure protection, overspeed protection, and error excessive protection
