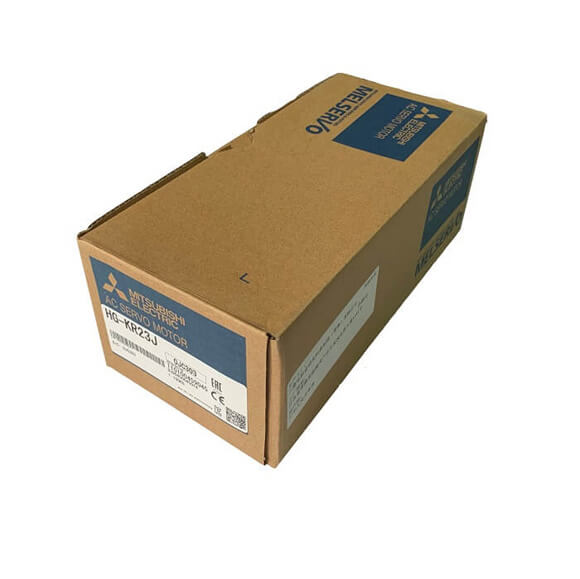

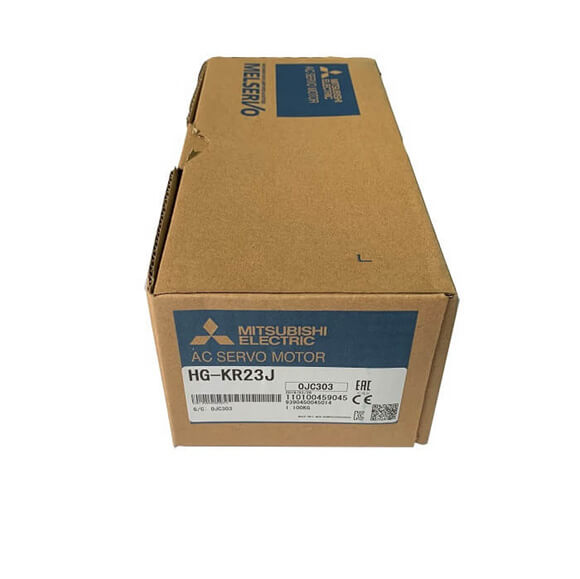

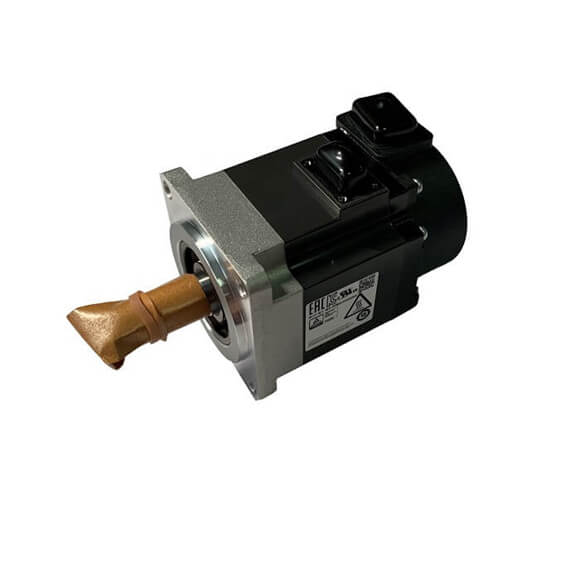

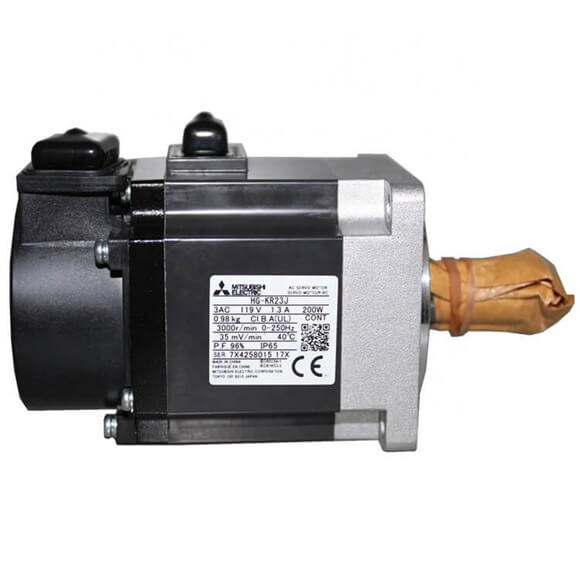

Mitsubishi MELSERVO-J4 Servomotor 200W HG-KR23J

Series#: Mitsubishi Servomotor

Product Details

  • Mitsubishi MELSERVO-J4 Servomotor 200W HG-KR23J
  • MELSERVO-J4 SERIES  50W to 7KW(HG-KR and HG-MR series)
  • We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi Servo Motor MR-J4 motor HG-MR series(ultra-low inertia/small capacity) HG-KR series (low inertia/small capacity)
Mitsubishi MELSERVO-J4 Servomotor  motor 053(B) 13(B) 23(B) 43(B) 73(B) 053(B) 13(B) 23(B) 43(B) 73(B)
Continuous running duty (Note 1)

Rated output

[kW] 0.05 0.1 0.2 0.4 0.75 0.05 0.1 0.2 0.4 0.75


Rated torque

[N•m] 0.16 0.32 0.64 1.3 2.4 0.16 0.32 0.64 1.3 2.4
Maximum torque (Note 10) [N•m] 0.48 0.95 1.9 3.8 7.2 0.56 1.1 2.2 4.5 8.4
Rated speed (Note 1) [r/min] 3000 3000
Maximum speed (Note 10) [r/min] 6000 6000
Instantaneous permissible speed (Note 10) [r/min] 6900 6900
Power rate at continuous rated torque

Standard

[kW/s] 15.6 33.8 46.9 114.2 97.3 5.63 13.0 18.3 43.7 45.2
Rated current [A] 1.0 0.9 1.5 2.6 5.8 0.9 0.8 1.3 2.6 4.8
Maximum current [A] 3.1 2.5 5.3 9.0 20 3.2 2.5 4.6 9.1 17
Environment

Ambient temperature

Operation 0 °C to 40 °C (non-freezing)
Storage -15 °C to 70 °C (non-freezing)


Ambient humidity

Operation 10 %RH to 80 %RH (non-condensing)
  Storage 10 %RH to 90 %RH (non-condensing)
Permissible load for the shaft(Note 8, 10)

L

[mm] 25 30 40 25 30 40
 Radial [N] 88 245 392 88 245 392
 Thrust [N] 59 98 147 59 98 147
Mass (Note 3)

Standard

[kg] 0.34 0.54 0.91 1.4 2.8 0.34 0.54 0.91 1.4 2.8
