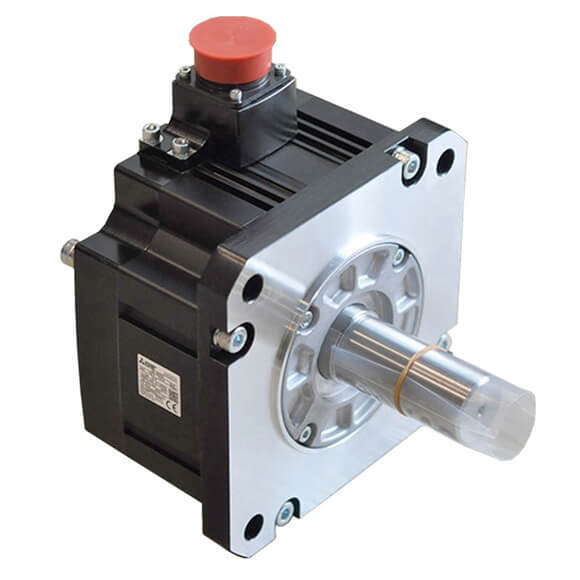

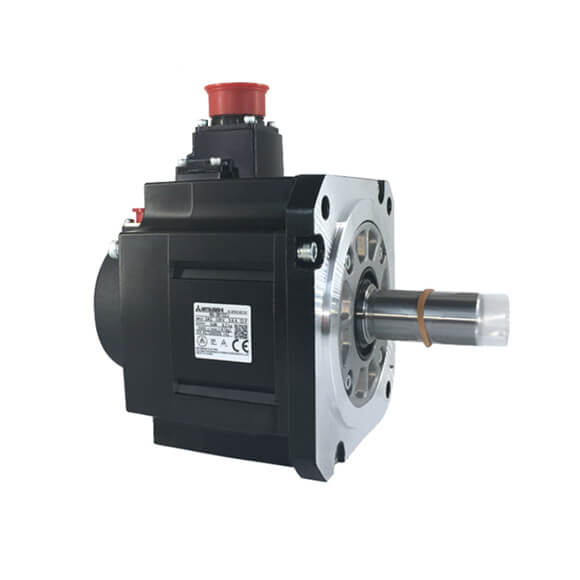

Mitsubishi MELSERVO-J4 Servomotor 2kW HG-SR202J

Series#: Mitsubishi Servomotor

Product Details

  • Mitsubishi MELSERVO-J4 Servomotor 2kW HG-SR202J
  • MELSERVO-J4 SERIES  50W to 7KW(HG-KR and HG-MR series)
  • We are First Class mitsubishi servomotors dealer and mitsubishi servomotors distributor in China.
  • We can Supply mitsubishi electric automation parts,such as Mitsubishi PLC,Mitsubishi Servo Motor&mitsubishi servo drive,Mitsubishi HMI,Mitsubishi VFD and So on.
  • 100% Original and new,In stock by Mitsubishi Automation
  • Delivery time: Ready in stock and 1 days for ship out
  • MOQ: 1pcs
Qty:

Specification

Mitsubishi MELSERVO-J4 Servomotor motor HG-SR 1000 r/min series

(Compatible with 3-phase 200 V AC, medium inertia/medium capacity)

HG-SR 2000 r/min series (Compatible with 3-phase 200 V AC,

medium inertia/medium capacity)

Mitsubishi MR-J4 Servomotor motor 51(B) 81(B) 121

(B)

201

(B)

301

(B)

421

(B)

52(B) 102

(B)

152

(B)

202

(B)

352

(B)

502

(B)

702

(B)

Continuous running duty (Note 1)

Rated output

[kW] 0.5 0.85 1.2 2.0 3.0 4.2 0.5 1.0 1.5 2.0 3.5 5.0 7.0


Rated torque

[N•m] 4.8 8.1 11.5 19.1 28.6 40.1 2.4 4.8 7.2 9.5 16.7 23.9 33.4
Maximum torque (Note 10, 13) [N•m] 14.3 24.4 34.4 57.3 85.9 120 7.2 14.3 21.5 28.6 50.1 71.6 100

(134)

Rated speed (Note 1) [r/min] 1000 2000
Maximum speed (Note 10) [r/min] 1500 3000
Instantaneous permissible speed (Note 10) [r/min] 1725 3450
Power rate at continuous rated torque

Standard

[kW/s] 19.7 41.2 28.1 46.4 82.3 107 7.85 19.7 32.1 19.5 35.5 57.2 74.0
Rated current [A] 2.8 5.2 7.1 9.4 13 19 2.9 5.6 9.4 9.6 14 22 26
Maximum current (Note 13) [A] 9.0 17 23 30 42 61 9.0 17 29 31 45 70 83

(116)

Environment (Note 5)

Ambient temperature

Operation 0 °C to 40 °C (non-freezing)




Storage -15 °C to 70 °C (non-freezing)


Ambient humidity

Operation 10 %RH to 80 %RH (non-condensing)




Storage 10 %RH to 90 %RH (non-condensing)
Permissible load for the shaft

(Note 8)

L

[mm] 55 79 55 79


Radial

[N] 980 2058 980 2058


Thrust

[N] 490 980 490 980


Mass (Note 3)

Standard

[kg] 6.2 7.3 11 16 20 27 4.8 6.2 7.3 11 16 20 27
